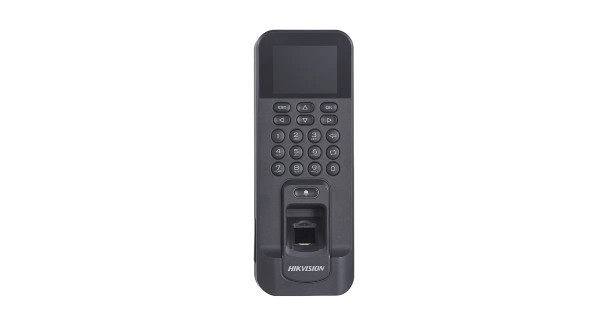

Skip to contentHIKVISION DS-K1T804AF K1T804A Pro Series Fingerprint Terminal
描述
K1T804A Pro Series Fingerprint Terminal
- Integrated management of access control and the time and attendance functions
- 3,000 fingerprints and 100,000 events storage
- Built-in card reader for Mifare1 card
- Communication via TCP/TP and Wi-Fi
- RS-485, wiegand interface
- Alarm input and output interface
- ISUP5.0, ISAPI
Display
- Screen Size : 2.4-inch
- Resolution : 320 × 240
- Type : LCD-TFT display screen
Audio
- Audio Output : 1 loudspeaker, 1 buzzer
Network
- Wired Network : TCP/IP, 10/100Mbps, self-adaptive
- Wi-Fi : Support
Interface
- Network Interface : 1
- RS-485 : 1
- Wiegand : 1
- Lock Control : 1
- Exit Button : 1
- Door Contact Input : 1
- Alarm Input : 1
- Alarm Output : 1
- TAMPER : 1
- USB : 1
Capacity
- Fingerprint Capacity : 3000
- Event Capacity : 100,000
Authentication
- Fingerprint Module : Optical fingerprint module
- Fingerprint Comparing Mode : 1:1 and 1:N
- Fingerprint Recognition Duration : ＜ 1 s
General
- Indicator : Power/status (red/green)
- Power Supply : 12 VDC/1 A
- Working Temperature : -10 °C to +55 °C (14 °F to +131 °F)
- Working Humidity : 10% to 90% (no condensing)
- Color : Black (included), gold (optional), silver (optional), white (optional)
- Dimensions : 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
- Installation : Surface mounting
- Language : English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
