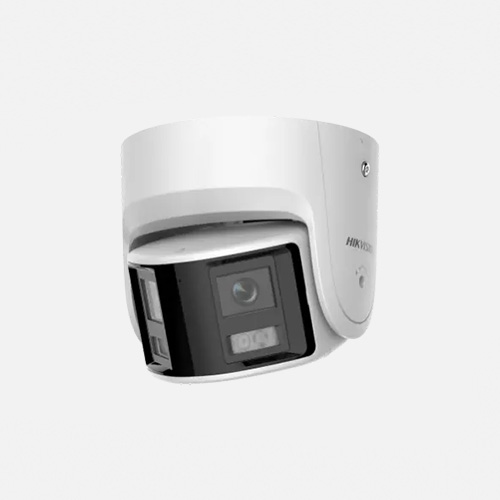

HISVISION DS-2CD2347G2P-LSU/SL

HISVISION DS-2CD2347G2P-LSU/SL

分類: , 標籤: ,

描述

Camera

  • Image Sensor：2 × 1/2.5″ Progressive Scan CMOS
  • Max. Resolution：3040 × 1368
  • Min. Illumination：Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Shutter Time：1/3 s to 1/100,000 s
  • Angle Adjustment：Pan: -30° to 30°,tilt: -75° to 75°

Lens

  • Lens Type：Fixed focal lens, dual lens, 2.8 mm
  • Focal Length & FOV：2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
  • Lens Mount：M12
  • Iris Type：Fixed
  • Aperture：F1.0
  • Depth Of Field：2 m to ∞

DORI

  • DORI：2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m

Illuminator

  • Supplement Light Type：White Light
  • Supplement Light Range：Up to 30 m
  • Smart Supplement Light：Yes

Video

  • Main Stream：
    50 Hz: 25 fps (3040 × 1368)
    60 Hz: 24 fps (3040 × 1368)
  • Sub-Stream：
    50 Hz: 25 fps (1200 × 536, 960 × 432)
    60 Hz: 24 fps (1200 × 536, 960 × 432)
  • Video Compression：
    Main stream: H.265+/H.265/H.264+/H.264,
    Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate：32 Kbps to 8 Mbps
  • H.264 Type：Baseline Profile,Main Profile,High Profile
  • H.265 Type：Main Profile
  • Bit Rate Control：CBR,VBR
  • Scalable Video Coding (SVC)：H.264 and H.265 encoding
  • Region Of Interest (ROI)：1 fixed region(s) for main stream

Audio

  • Audio Type：Mono sound
  • Audio Compression：G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio Bit Rate：64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Audio Sampling Rate：8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering：Yes

Network

  • Protocols：TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
  • Simultaneous Live View：Up to 6 channels
  • API：Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • User/Host：
    Up to 32 users
    3 user levels: administrator, operator, and user
  • Security：Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
  • Network Storage：
    NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Client：iVMS-4200,Hik-Connect,Hik-Central
  • Web Browser：
    Plug-in required live view: IE 10, IE 11,
    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


  • Image Parameters Switch：Yes
  • Image Settings：Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night Switch：Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)：130 dB
  • SNR：≥ 52 dB
  • Image Enhancement：BLC,HLC,3D DNR

Interface

  • Ethernet Interface：1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Built-In Microphone：Yes
  • Built-In Speaker：Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB.
  • Audio：
    1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
    1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarm：1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
  • Reset Key：Yes

Event

  • Basic Event：Motion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
  • Smart Event：
    Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
  • Linkage：Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing

General

  • Power：
    12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
    PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
  • Material：Base: metal, cover: metal
  • Dimension：Ø140 mm × 145.6 mm (Ø5.5 × 5.7\”)”
  • Package Dimension：230 mm × 230 mm × 230 mm (9″ × 9″ × 9″)
  • Weight：Approx. 920 g (2.0 lb.)
  • With Package Weight：Approx. 1670 g (3.7 lb.)
  • Storage Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions：-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language：33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function：Anti-banding, heartbeat, mirror, flash log, pixel counter
  • Flashing Light：Yes

Approval

  • EMC：
    FCC: 47 CFR Part 15, Subpart B,
    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
    RCM: AS/NZS CISPR 32: 2015,
    IC: ICES-003: Issue 7
  • Safety：
    UL: UL 62368-1,
    CB: IEC 62368-1: 2014+A11,
    CE-LVD: EN 62368-1: 2014/A11: 2017
  • Environment：
    CE-RoHS: 2011/65/EU,
    WEEE: 2012/19/EU,
    Reach: Regulation (EC) No 1907/2006
  • Protection：IP67: IEC 60529-2013
