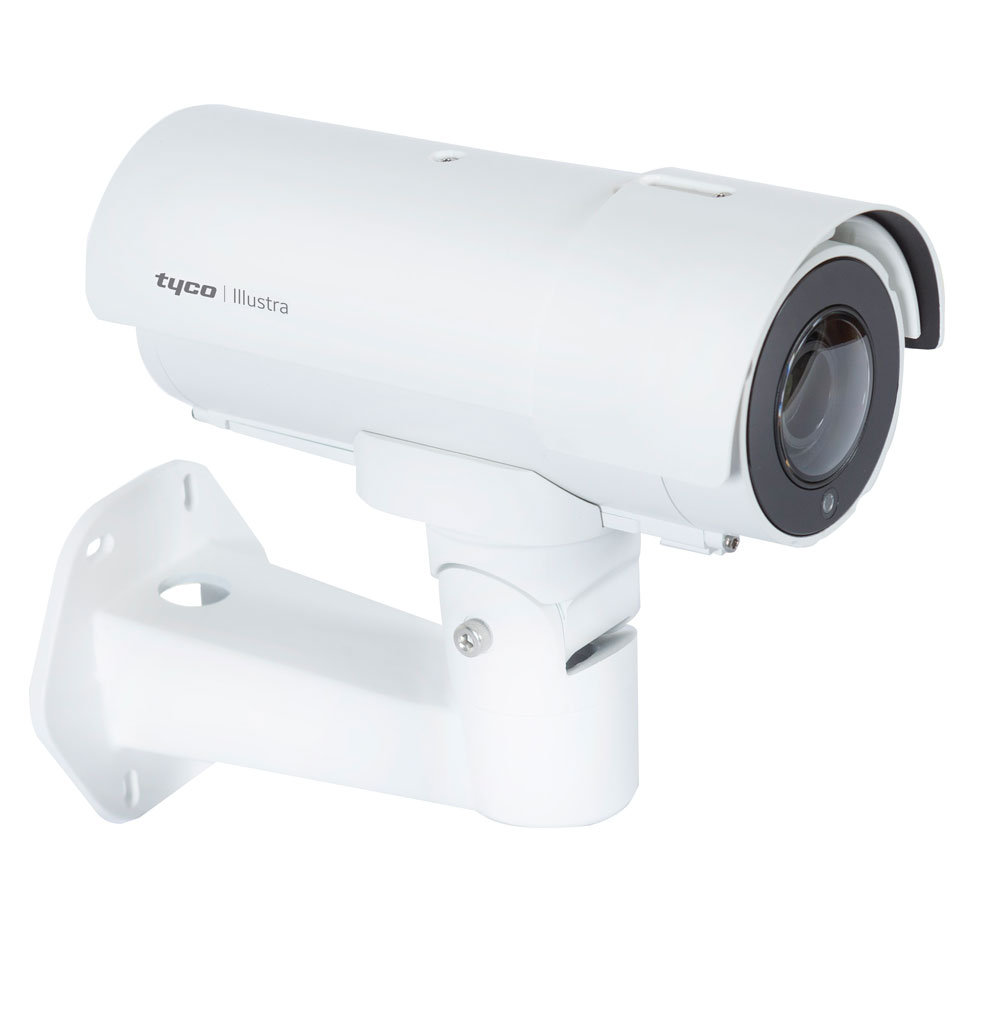

Illustra Pro Gen3 Bullet

Enriched Video Quality With Reduced Configuration Time

The Illustra Pro Gen3 Bullet maximizes video quality while minimizing installation costs and configuration time.
Powerful integrated IR provides uninhibited images in total darkness up to 197ft away for standard Pro Gen3 Bullet and
up to 230ft away for Telephoto Pro Gen3 Bullet.Multiple mounting options featuring easily accessible cable ports simplify installation.
Building off the previous generation of cameras, the Pro Gen3 Bullet improves on important features such as Wide Dynamic Range,
effective failover redundancy, cybersecurity,and Video Intelligence Analytics. Available in a range of resolutions and lens options,
the Pro Gen3 Bullet can be added to a variety of deployments in both medium and large-sized facilities.

描述

Illustra Pro Gen3 Bullet

Pro 2MP, 3MP, 5MP & 8MP Bullets

Enriched Video Quality With Reduced Configuration Time

Camera Features

  • Pole/pendant mount and arm included for mounting flexibility Profile settings allow the bullet to adapt to scenarios such as retail, gaming, and more
  • Demo mode out of the box requires minimal adjustments
  • Easily accessible ports simplify installation
  • Electronic Image Stabilization keeps the field of view steady in harsh conditions
  • Improved accuracy for facial detection with updated library and algorithms
  • Equipped with Illustra Video Intelligence Analytics
  • Designed to be resilient against cyber-attacks

Specification

Camera FeaturesPro Gen3 Bullet
Alarm Input/Output2-1
Backlight Compensation
B/W
Color
Corridor Mode
Day/NightYes
Defog
Digital Noise Reduction
Dimensions2MP/3MP:- Std lens: Ø3.15 x 8.07in (Ø79.9 x 205mm), Telephoto lens: Ø3.15 x 8.54in (Ø79.9 x 217mm)

5MP/8MP:- Std lens: Ø3.15 x 8.07in (Ø79.9 x 205mm), Telephoto lens: Ø3.15 x 9.27in (Ø79.9 x 235.5mm)

Dynamic Range2MP,3MP,8MP: True WDR 120 dB Technologies | 5MP: True WDR 110 dB Technologies
Environment RatingIP67
Ethernet10/100/1000 BaseT, RJ-45, Auto-Negotiation
Field of View2MP:- 112°/58° (Standard), 62.2°/37° (Telephoto)

3MP:- 100°/73° (Standard), 58°/45° (Telephoto)

5MP:- 103°/74° (Standard), 25°/19° (Telephoto)

8MP:- 95°/53° (Standard), 33°/17° (Telephoto)

Focal Length2MP/3MP:- 2.7-13.5mm, 4.7-47mm | 5MP:- 2.7-13.5mm, 13-55mm | 8MP:- 3.6-10mm, 13-55mm
FocusOne-Touch Auto Focus or Remote Adjustment
Gain Control
H.264Yes
H.265Yes
Horizontal FOV
Housing ColorSignal White – RAL 9003
Imager2MP/3MP/5MP:- Progressive Scan RGB 1/2.7” CMOS | 8MP:- Progressive Scan RGB 1/1.8” CMOS
IntelliZipYes
IR Illuminator
Lens TypeMotorized Varifocal and Focus, P-Iris
Manual Speed
Max Aperture
Max Frame Rate2MP @ 60 fps, 3MP @ 30fps, 5MP @ 30 fps, 8MP @ 30 fps
Minimum Illumination
MJPEGYes
Motion Detection3 Zones
Noise Reduction
Onboard StorageMicro SDXC up to 512GB
ONVIF CompliantProfile S
Outdoor Rating
Pan Travel
Power DrawPoE 18.2W, 24 VAC 30.5W
Power InputPower over Ethernet+ (PoE+) IEEE 802.3at Class 4 (48V 0.38A); 24 VAC 1.27A 50/60Hz
Power Supply
Presets
Privacy Zones9
Resolution Options
2MP:- 1920×1080 , (1080p) 16:9, 1664×936 (HD+) 16:9, 1280×720, (720p) 16:9, 1024×576 (PAL+) 16:9, 960×544 (qHD) 16:9, 816×464 16:9, 640×360 (nHD) 16:9, 480×360 4:3

3MP:- 2048×1536 4:3, 1920×1080 , (1080p) 16:9, 1664×936 (HD+) 16:9, 1280×960 4:3, 1280×720, (720p) 16:9, 800×600 (SVGA) 4:3,
640×480 (VGA) 4:3, 640×360 (nHD) 16:9, 480×360 4:3, 384×288 4:3

5MP:- 2592×1944 4:3, 2560×1440 16:9, 2048×1536 4:3, 1920×1080 (1080p) 16:9, 1664×936 (HD+) 16:9, 1280×960 4:3, 1280×720,
(720p) 16:9, 800×600 (SVGA) 4:3, 640×480 (VGA) 4:3, 640×360 (nHD) 16:9, 480×360 4:3, 384×288 4:3

8MP:- 3840×2160 (4K) 16:9, 3264×1840 16:9, 2688×1520 16:9, 2560×1440 16:9, 1920×1080, (1080p) 16:9, 1664×936 (HD+) 16:9,
1280×720 (720p) 16:9, 1024×576 (PAL+) 16:9, 960×544 (qHD) 16:9, 816×464 16:9, 640×360 (nHD) 16:9, 480×272 16:9

Shutter Speed
Supported ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, HTTPS, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP
S/N Ratio
Tilt Travel
Vandal-ResistantIK10
Video StreamsQuad
Weight2MP/3MP:- Std lens: 4.3lb (1.9kg), Telephoto lens: 4.5lb (2kg) | 5MP/8MP:- Std lens: 4.3lb (1.9kg), Telephoto lens: 5lb (2.2kg)
White Balance
Wide Dynamic Range2MP/3MP:- Triple Exposure, True WDR 120 dB Technologies | 5MP/8MP:- Dual Exposure, True WDR 110 dB Technologies
