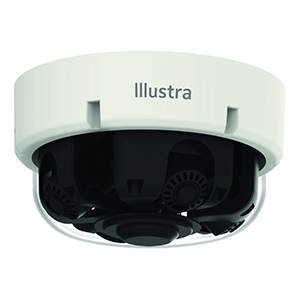

Illustra Pro Gen4 20MP & 32MP Motorized Multisensor
Camera Features
- 20MP & 32MP resolution provides high quality images during live viewing and forensic search
- Built in deep learning AI (Quad Edge AI) provides real time alerts and forensic search capabilities independently for each sensor.
- Four remotely repositionable lenses provide 360 degree coverage
- Integrated 30m (98ft) infrared vision
- Smart Defog & SmartWDR
- TrickleStor provides edge-based failover redundancy via encrypted video
- Improved operational tolerances for extreme conditions
- 5YR warranty
Specification (20MP)
| Camera Features | Pro Gen4 20MP & 32MP Motorized Multisensor |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned / Removed, Enter, Exit, Crowd, Queue |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | 2 input, 2 output |
| Day/Night | True Day/Night CF Removal |
| Dimensions | ø299mm x 169mm (ø11.8in x 6.7in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Environment Rating | RoHS; WEEE |
| Ethernet | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
| Field of View | Field of View Wide (H/V): 103°/74° Field of View Telephoto (H/V): 33°/25° |
| Face Recognition | Yes |
| Focal Length | 2.7-13.5mm |
| Focus Control | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | Signal White – RAL 9003 |
| Imager | Sony IMX335 1/2.8” CMOS image sensor |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| IR Distance | 98ft (30m) |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Aperture | f/1.4 (W), f/2.8 (T) |
| Max Frame Rate | 5MP @ 30fps, 2MP @ 60fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.11 Lux; B/W, 1/4s, 30 IRE, AGC: 0.06 Lux; W/IR: 0.0 Lux |
| MJPEG | Yes |
| Motion Detection | 3 per Sensor |
| Onboard Storage | Built-in Quad Micro SDXC slot up to 2TB per slot; Card not included |
| ONVIF Compliant | Profile S (Future release) |
| Operating Temperature | -40°C to 55°C (-58°F to 131°F) |
| Outdoor Rating | IP66 |
| Power Input | Power over Ethernet (PoE) IEEE 802.3bt Type 4 Class 8; 24 VAC, Max Draw: PoE 71.3W, 24 VAC 71.3W |
| Privacy Zones | 8 Per Sensor |
Resolution Options |
2560×1920 (5MP) 4:3 2560×1444 (4MP) 16:9 1920×1080 (1080p) 16:9 1664×936 (HD+) 16:9 1280×720 (720p) 16:9 1024×576 (PAL+) 16:9 800×600 (SVGA) 4:3 816×464 156:9 640×360 (nHD) 16:9 480×360 4:3 480×272 16:9 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Simultaneous Users | 10 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Quad Streaming (per sensor) |
| Weight | 5.7Kg (12.6 lbs) |
Specification (32MP)
| Camera Features | Pro Gen4 20MP & 32MP Motorized Multisensor |
| AI Object Classification | Classes: Person, Bicycle, Bus, Car, Motorbike, Train, Truck, Any Rules: Object Detected, Perimeter, Linger, Dwell, Abandoned / Removed, Enter, Exit, Crowd, Queue |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | 2 input, 2 output |
| Day/Night | True Day/Night CF Removal |
| Dimensions | ø299mm x 169mm (ø11.8in x 6.7in) |
| Dynamic Range | True WDR 120 dB Technologies |
| Environment Rating | RoHS; WEEE |
| Ethernet | 10/100/1000 BaseT, RJ-45, Auto-Negotiation |
| Field of View | Field of View Wide (H/V): 95°/53° Field of View Telephoto (H/V): 49°/28° |
| Face Recognition | Yes |
| Focal Length | 3.6 -11mm |
| Focus Control | One-Touch Auto Focus or Remote Adjustment |
| H.264 | Yes |
| H.265 | Yes |
| Housing Color | Signal White – RAL 9003 |
| Imager | Sony IMX334 1/1.8” CMOS image sensor |
| Image Orientation Settings | None, Mirror, Flip, Flip and Mirror, Corridor (rotate 90° right or left) |
| IntelliZip | Yes |
| IR Distance | 98ft (30m) |
| Lens Type | Motorized Varifocal and Focus, P-Iris |
| Max Aperture | f/1.5 (W), f/2.8 (T) |
| Max Frame Rate | 8MP @ 30fps, 2MP @ 60fps |
| Minimum Illumination | Color, 1/4s, 30 IRE, AGC: 0.2 Lux; B/W, 1/4s, 30 IRE, AGC: 0.11 Lux; W/IR: 0.0 Lux |
| MJPEG | Yes |
| Motion Detection | 3 per Sensor |
| Onboard Storage | Built-in Quad Micro SDXC slot up to 2TB per slot; Card not included |
| ONVIF Compliant | Profile S (Future release) |
| Operating Temperature | -40°C to 55°C (-58°F to 131°F) |
| Outdoor Rating | IP66 |
| Power Input | Power over Ethernet (PoE) IEEE 802.3bt Type 4 Class 8; 24 VAC, Max Draw: PoE 71.3W, 24 VAC 71.3W |
| Privacy Zones | 8 Per Sensor |
Resolution Options |
3840×2160 (4K) 16:9 3264×1840 (6MP) 16:9 2688×1520 (4MP) 16:9 1920×1080 (1080p) 16:9 1664×936 (HD+) 16:9 1280×720 (720p) 16:9 1024×576 (PAL+) 16:9 960×544 (qHD) 16:9 816×464 16:9 640×360 (nHD) 16:9 480×272 16:9 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Simultaneous Users | 10 |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, TLS, RTSP, ICMP, Unicast, Multicast, NTP, SMTP, WS-Security, SNMP, CIDS, FSTP, UPnP™, SIP |
| TrickleStor | Yes, encrypted storage |
| Vandal-Resistant | IK10 |
| Video Streams | Quad Streaming (per sensor) |
| Weight | 5.7Kg (12.6 lbs) |
