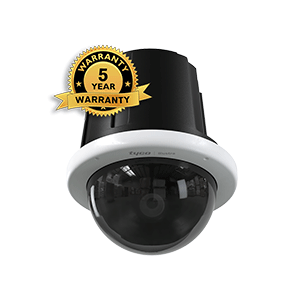

Illustra Pro Gen4 2MP & 8MP PTZ Indoor
Maintain Control and Detail with a Responsive, Accurate PTZ
Camera Features
- Object classification combined with event rules to pinpoint forensic searches or trigger events
- Large zoom capacity to identify important features at a greater distance
- Auto-tracking based upon face or person detection
- True WDR and Day/Night function for 24/7 use and deployment in variable lighting conditions
- Advanced analytics on-board, such as Object Removed, Queue Formation, Loitering and more
- Fast and accurate reaction to events with a Pant/Tilt Speed of up to 700°/sec and a preset accuracy of <0.1°
Specification
| Camera Features | Illustra Pro Gen4 2MP & 8MP PTZ Indoor |
| AI Object Classification | Person, Bicycle, Bus, Car, Motorbike |
| Audio | Bi-directional; 1 input, 1 output |
| Alarm Input/Output | 2/2 |
| B/W | Minimum Illumination 2MP 0.0035 lux – 8MP (4K) 0.015 lux |
| Color | Minimum Illumination 2MP 0.015 lux – 8MP (4K) 0.06 lux |
| Day/Night | TDN CF removal |
| Defog | Yes – Future Release |
| Digital Noise Reduction | 2D and 3D |
| Dimensions | Ø8.03 x 13.74 in (Ø204 x 349 mm) |
| Ethernet | IEEE 802.3, 10/100/1000Base-T Ethernet, RJ45, auto sensing |
Field of View |
2MP Wide Angle: 43°/24°, Telephoto: 1.6°/0.9° 8MP (4K) Wide Angle: 61.9°/36.2°, Telephoto: 3.4°/1.7° |
| Focal Length | 2MP 4.5-135 mm – 8MP (4K) 6.4-139 mm |
| Focus | Motorized,One-touch Auto Focus, Manual Focus |
| Focus Control | Motorized |
| H.264 | yes |
| H.265 | yes |
| Housing Color | RAL 9003 – Signal White |
| Imager | 2MP CMOS 1/1.18” – 8MP (4K) CMOS 1/2.8” |
| IntelliZip | Yes, Encrypted |
| Lens Type | Varifocal Lens, DC-Iris, IR Corrected |
| Manual Speed | < 0.25° to 100°/s scaled in proportion to zoom position |
| Max Aperture | 2MP F/1.8(W) ~ F/6.5(T) – 8MP F/1.5(W) ~ F/3.4(T) |
| Max Frame Rate | 2MP@60fps – 8MP@30fps/2MP@60fps |
| MJPEG | yes |
| Motion Detection | yes |
| Onboard Storage | Micro SD/SDHC/SDXC card slot, up to 512GB |
| ONVIF Compliant | Profile S |
| Operating Temperature | -14 F to +140 F (-10 C to +60 C) |
| Pan Travel | 360° Continuous |
| Power Input | 802.3bt Type 4 (90W) |
| Power Supply | 22 to 30 VAC, Class 2 LP 72W |
| Presets | 96 |
Resolution Options |
2MP – 1920 x 1080, 1664 x 936, 1280 x 720, 1024 x 576, 960 x 544, 816 x 464, 640 x 360, 480 x 272, 640 x 368 8MP – 3840 x 2160, 3264 x 1840, 2688 x 1520, 1920 x 1080, 1664 x 936, 1280 x 720, 1024 x 576, 960 x 544, 816 x 464, 640 x 360, 480 x 272, 640 x 368 |
| Shutter Speed | ≥ 1/10,000 to 1/4 s |
| Supported Protocols | TCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP™, RTSP, LLDP |
| Tilt Travel | 0° to -90° |
| Vandal-Resistant | IK10 |
| Video Intelligence | Linger, Exit, Direction, Abandoned/Removed objects, Queue, Dwell, Enter, Object detection, Crowd, Perimeter |
| Video Streams | Quad Streaming |
| Weight | 16LBS / 7KG |
| Wide Dynamic Range | True multi shutter WDR 141dB |
