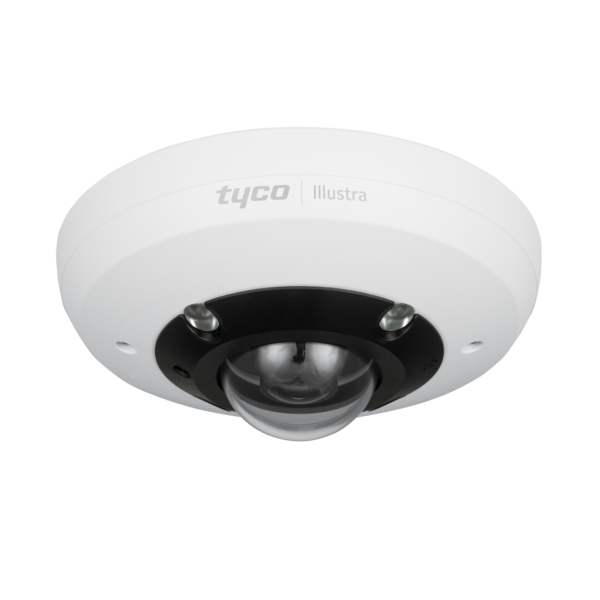

Illustra Pro Gen 2 12MP Fisheye

The power of panorama – IP fisheye surveillance camera

The 12MP Fisheye Camera captures an ultra-wide field of view looking in all directions in real-time and produces single or multiple fixed views should forensic investigations be required. The camera’s superior ePTZ creates even transitions between pan, tilt, and zoom movements.

描述

Illustra Pro Gen 2 12MP Fisheye

The power of panorama – IP fisheye surveillance camera

Camera Features

  • 180°/360° ceiling or wall mount panoramic views of wide areas
  • 12MP imager for super high quality images; 9MP FE / 4MP dewarped
  • 360°/180° panoramic views
  • Single or multiple fixed views for forensic investigations
  • Onboard dewarping for distortion-free images
  • IR illumination up to 15m
  • ePTZ capabilities for ultra-smooth transition between pan, tilt, and zoom
  • Onboard SD card recording and storage
  • Sleek, discreet design
  • Quick and easy installation
  • IP66 rated
  • IK10 rated
  • ONVIF profile S, G, and Q
  • As of August 2019, Illustra Pro cameras support the directives of the
    National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies

Specification

Camera FeaturesPro Gen 2 12MP Fisheye
Corridor ModeN/A
Day/NightTDN
Environment RatingIndoor & Outdoor
Field of View180° (diagonal), 165° (horizontal, vertical)
Focal Length1.55 mm
H.264Yes
H.265No
Housing ColorWhite
Imager1/1.7” 12MP CMOS progressive scan
IntelliZipNo
IR DistanceUp to 15m
Lens TypeFixed
Max Frame Rate15ips @ 12MP, 20ips @ 1080p
MJPEGYes
Motion DetectionYes
Onboard StorageMicro SDXC 64GB
ONVIF CompliantONVIF profile S, G, and Q
Outdoor RatingIP66
Power InputPoE IEEE 802.af
Resolution Options9MP (2992×2992), 4MP (2048×2048), 4MP (2688×1512), 3MP, 2MP (1408X1408), 2MP (1920×1080), 1.5MP (1664×936), 1MP (1280×720), (1024×576), (960×544), (640×360), (384×216), (480×360), (384×288)
Vandal-ResistantIK10
Video StreamsMultiple
