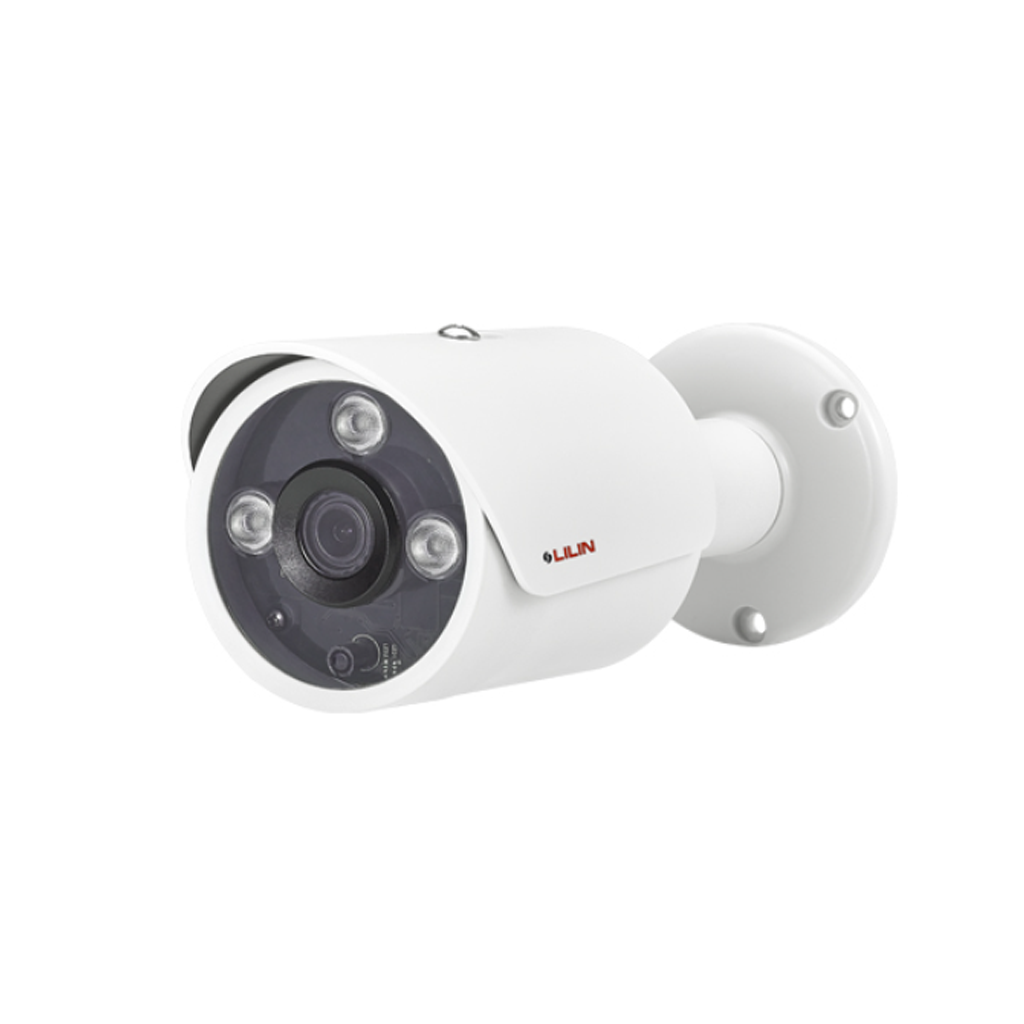

LILIN MR8342
4MP Day & Night Fixed IR Vandal Resistant IP Bullet Camera
Features
- Full HD 4 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- HDR function up to 100dB
- High efficiency IR LED, radiant distance up to 30m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- IP66 rain and dust resistant
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.3 Lux at F2.0 ; B/W : 0.06 Lux at F2.0 ; 0 Lux with IR LED ON |
| Starting Temperature | -10°C – +50°C (14°F – 122°F) |
| Operating temperature | -40°C – +50°C (-40°F – 122°F) |
| Storage temperature | -25°C – +60°C (-13°F – 140°F) |
| Operating humidity | 0% – 90% RH |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 5.2W / PoE, 6.6W |
| Focal Length | 4mm |
| Iris | F2.0 |
| Iris Control | Fixed IRIS |
| Angle of View | 84° (H) 44° (V) 100° (D) |
| Peak wavelength | 850nm |
| Beam Spread | 60° |
| Max IR distance | 30M |
| Pick Up Element | 1/3″ CMOS image sensor |
| Effective pixels | 2688 (H) × 1520 (V) = 4,085,760 (Pixels) |
| CPU | Intel® Core™ i3 or higher grade |
| OS | Windows 7 or above |
| RAM | 4GB or above, Dedicated Graphics Card |
| Dimensions | 68(W) × 69(H) × 185(D) mm approx. |
| Weight | 450g approx. |
| Video Compression | H.264 main and high profile, Motion JPEG |
| Resolution | 4MP(2688 × 1520), 3.6MP(2560 × 1440), 3MP(2304 × 1296), 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | Auto / Tungsten / Indoor / Fluorescents1 / Fluorescents2 / Outdoor1 / Outdoor2 / Customized Adjustable red gain and blue gain |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 32MB flash memory |
