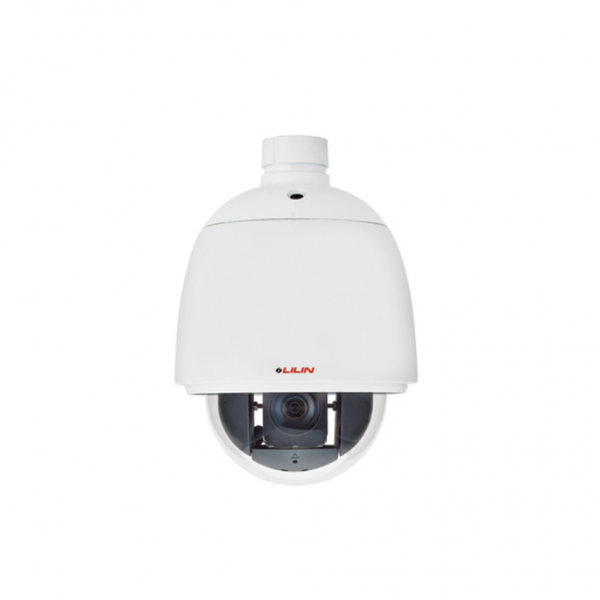

LILIN PSD4624EX30
30X Day / Night 60fps Full HD PTZ IP Camera
Features
- Outdoor PTZ camera
- 30X optical zoom
- IP66 rain and dust resistant
- IR cut filter for day/night operations
- 1080p resolution
- Wide Dynamic Range up to 90dB
- H.264 and Motion JPEG multi-profile video streaming
Specifications
| Min. illumination/Low Light Mode (Colour) | 0.5 lux (1/30 sec, F1.6(Wide), 50IRE, AGC-Gain: 30dB ICROFF Color mode) |
| Focal Length | 4.3 (WIDE) – 129.0 (TELE) mm |
| Minimum Aperture Ratio | 1 : 1.6 (Wide) – 4.7 (Tele) |
| Iris Range | F1.6 – 32 , Close |
| Minimum object distance | 10 cm (WIDE end), 1.5M (TELE end) |
| Angle of View | (H) 64.45°(W) – 2.41°(T) (V) 39.27°(W) – 1.36°(T) ) |
| Zoom Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus | Auto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 1944 (H) × 1224 (V) = 2,379,456 (pixels) |
| Starting Temperature | – 40°C – + 50°C ( -40°F – 122°F ) |
| Operating temperature | – 40°C – + 50°C ( -40°F – 122°F ) |
| Storage temperature | – 20°C – + 60°C ( -4°F – 160°F ) |
| Operating humidity | 0% – 90% |
| Power Supply | AC24V ±10% / DC24V / PoE++ (IEEE 802.3bt) |
| Power Consumption | AC24V, 20W / DC24V, 32W / PoE++, 31.2W (Heater OFF) AC24V, 48W / DC24V, 51W / PoE++, 52.1W (Heater ON) |
| CPU | Intel® Core™ i3 or higher grade |
| RAM | 4GB or above, Dedicated Graphics Card |
| Dimensions | 275 (H) × 192 (D) mm |
| Weight | 2750 g |
| Video Compression | H.264 Main and High Profile, Motion JPEG |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | ATW / Indoor(3200K) / Outdoor(5800K) / Manual(1800K – 10500K) |
| Electrical Shutter | Auto / manual(1/30(25) – 1/10,000) |
| Image Effects | Contrast, Sharpness, Mirror, Flip, Defog, DIS, Digital Zoom(x16) |
| PTZ Control | Pan , tilt , zoom in / out , absolute position, and video-click-nmove |
| CPU.Memory | Embedded SoC, 500MHz Dual ARM Cortex-A9 & 500MHz ARM11, 1GB DDR3, 256MB flash memory |
