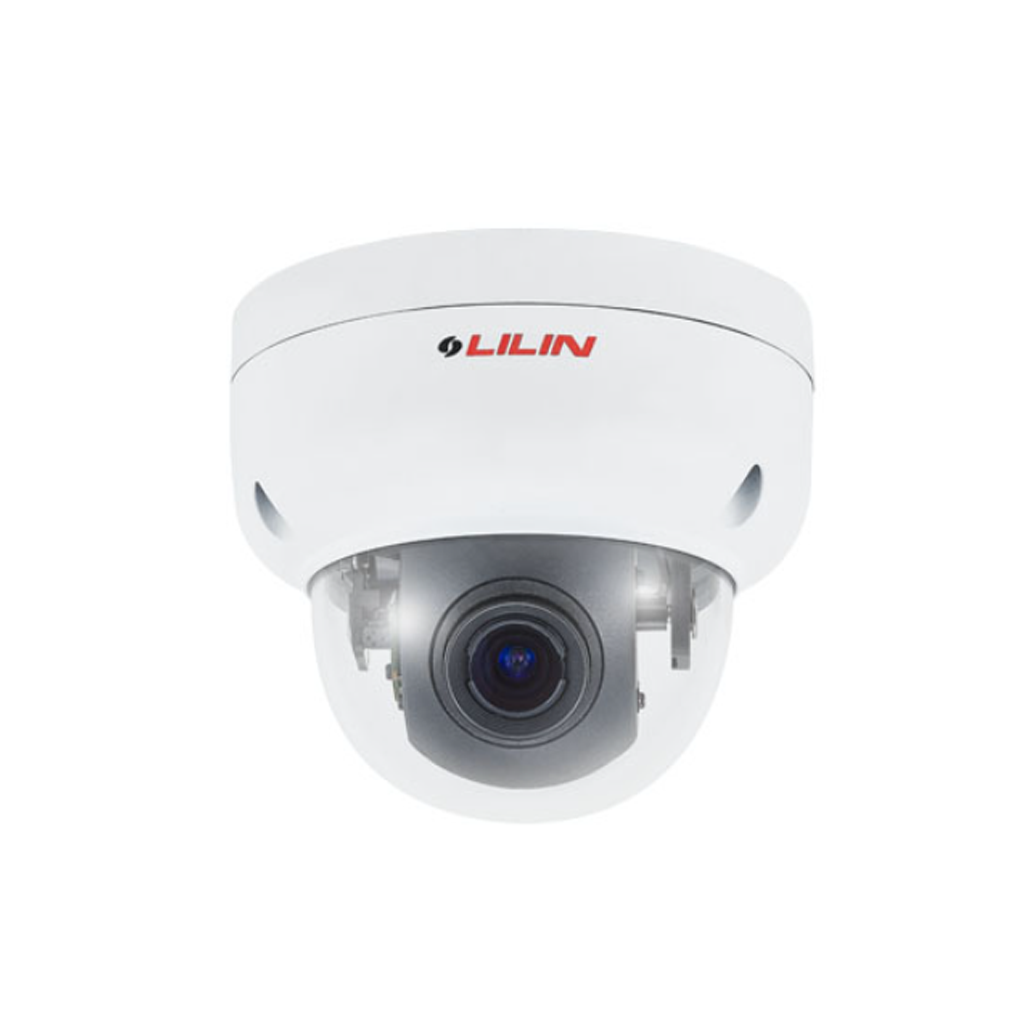

LILIN PZD6422EX3
3X Day & Night 1080P HD Vandal Resistant Mini Fast Dome IP Camera
Features
- 3x Optical Zoom Lens (3.35 – 10.05mm)
- Day & Night (IR cut removable)
- True H.264 AVC High Profile video compression
- Smart H.264 supported
- HDR function up to 100dB
- 3D Noise Reduction (MCF)
- PTZ Control
- IVS supported
- Up to 256 Programmable Preset Positions
- Auto Tracking Function
- Digital 1 input / 1 Output
- Onvif Support
Specifications
| Min. illumination/Low Light Mode (Colour) | 0.1 lux, (1/30 sec, F1.6(Wide), 50IRE, AGC-Gain: 30dB ICR-OFF) 0.05 lux, (1/30 sec, F1.6(Wide), 50IRE, AGC- Gain: 30dB ICR-OFF) |
| Focal Length | 3.35 (WIDE) – 10.05 (TELE) mm |
| Iris Range | F1.7(W) – F3.0(T) |
| Minimum object distance | 0.5 m (Tele) |
| Angle of View | ( H )108.2°( W ) – 32.7°(T)° ( V )57.0°(W) – 18.4°(T) ( D )129.2°(W) – 37.6°(T) |
| Zoom Speed | 1–8 Selectable [8：approx. 4.5 second (In to Out) in manual mode] |
| Focus Speed | 1–8 Selectable [8：approx. 4.5 second (Far to Near) in manual mode] |
| Focus | Auto / Manual Focus |
| Pick Up Element | 7″ CMOS image sensor |
| Effective pixels | 1920 (H) × 1080 (V) = 2,097,664 (pixels) |
| Starting Temperature | -5°C – +45°C (23°F – 113°F) |
| Operating temperature | -10°C – +45°C (14°F – 113°F) |
| Storage temperature | -20°C – + 60°C ( -4°F – 160°F ) |
| Operating humidity | 0% – 90% |
| Power Supply | DC12V ±10% / PoE (IEEE 802.3af compliant) |
| Power Consumption | DC12V, 6.0W / PoE, 7.5W |
| CPU | Intel® Core ™ i3 or higher grade |
| OS | Windows 7 or above |
| RAM | 4GB or above, Dedicated Graphics Card |
| Dimensions | Ø120 × 106 (H) mm |
| Weight | 770g |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 256MB flash memory |
