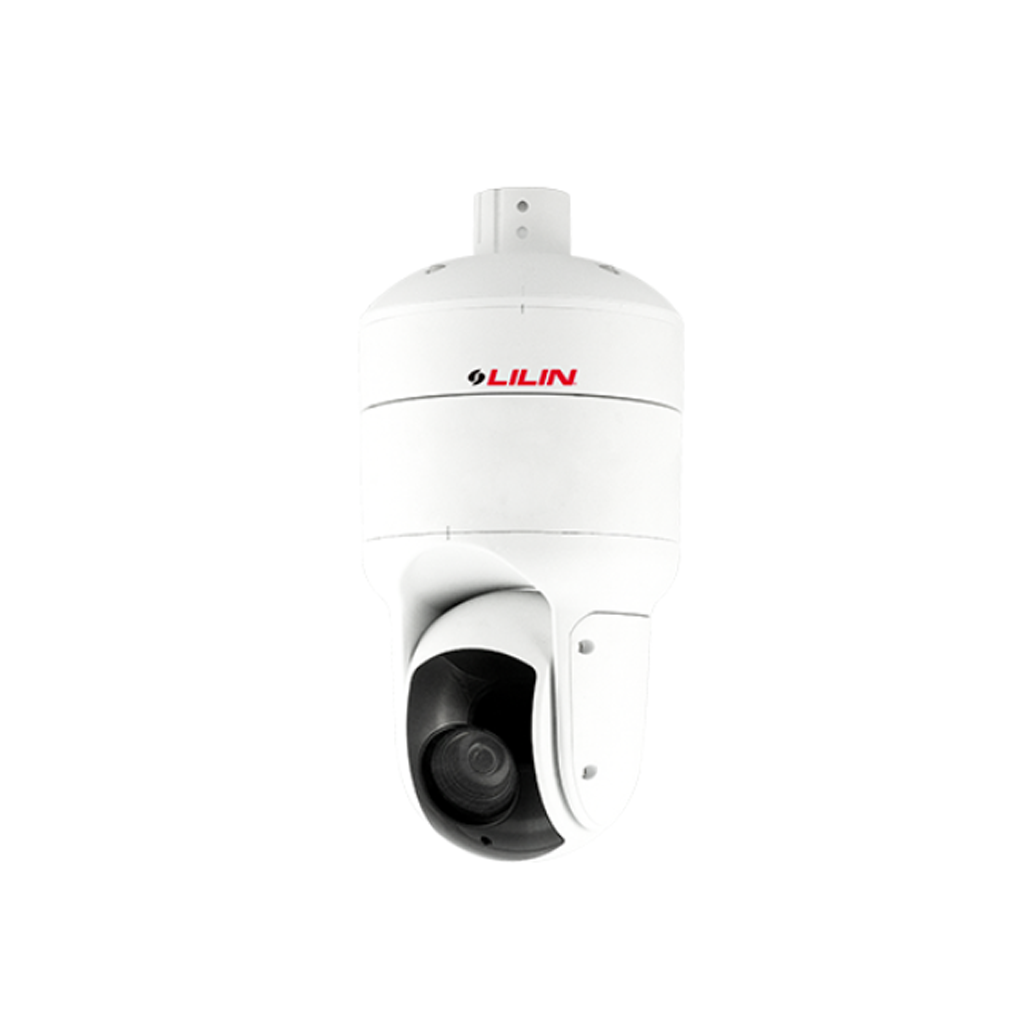

LILIN S8R5724EX25
25X 1080P Day & Night 60 FPS IR Vandal Resistant PTZ IP Cam
Features
- 25X Optical Zoom Lens(5.3 – 132.5mm)
- 8X Digital Zoom
- Day & Night (IR cut removable)
- Full HD 2 megapixel CMOS image sensor
- 2MP H.265/HEVC and H.264/AVC high-performance video compression
- Simultaneous streaming of H.265 and H.264 encoded streams
- 3D noise reduction (MCTF)
- HDR function up to 120dB
- IVS
- Motion / Tamper / Audio / Alarm / Network lost detection / Global Counter / Virtual Input / Metadata function
- SMART event
- 80-metre infrared night vision
- Defog function • Dynamic privacy zone mask
- Horizontal & Vertical Flip
- 360° Endless panning
- Tilting range up to 240 ∘
- Up to 256 Programmable Preset Positions
- 2-way audio supported
- ONVIF supported
- RS-485 supported
- Weatherproof IP66
- Vandal resistant approve IK10
Specifications
| Min. illumination/Low Light Mode (Colour) | 0.01 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.002 lux (1/30 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0.002 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-OFF Color mode) 0.0004 lux (1/8 sec, F1.6(Wide), 30IRE, AGC-Gain: 60dB ICR-ON B/W mode) 0 Lux with IR LED ON |
| Zoom ratio | 25X Optical |
| Focal Length | 5.3 (WIDE) – 132.5 (TELE) mm |
| Minimum Aperture Ratio | F1.6(Wide) – F4.3(Tele) |
| Iris Range | F1.6 – 32 , Close |
| Iris Control | DC IRIS / Manual |
| Minimum object distance | 50 cm (WIDE end), 1.5M (TELE end) |
| Angle of View | 60.6°(W) – 2.9°(T) (H) 33.8°(W) – 1.6°(T) (V) 69.4°(W) – 3.1°(T) (D) |
| Zoom Speed | 0 – 7 Selectable [ Fast : Approx. 6.0 Second ( Tele to Wide ) in Manual Mode ] |
| Focus Speed | 0 – 7 Selectable |
| Focus | Auto ( Continue / Interval / Zoom Trigger / One Push), Manual Focus |
| Peak wavelength | 850nm |
| Beam Spread | Automatically adjusted, Depending on the zoom ratio |
| Max IR distance | 80m |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 1945 (H) × 1097 (V) = 2,133,665 (Pixels) |
| CPU | Intel® Core™ i7 or higher grade |
| OS | Windows 7 or above |
| RAM | 8GB or above, Dedicated Graphics Card |
| Web browser | Microsoft® Internet Explorer® 9 or above |
| Video Compression | H.265/HEVC main profile, H.264 main and high profile , Motion JPEG |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(720 × 480, 720 × 576), VGA(640 × 480), CIF(352 × 240) |
| White Balance | Auto / Manual |
| Electrical Shutter | 1/30(1/25)s – 1/20000s |
| Image Effects | Brightness, Contrast, Hue, Saturation, Sharpness, Mirror, Flip, Defog, Digital Zoom(x8) |
| CPU.Memory | Embedded Quad-core ARM Cortex-A53 1.0GHz CPU & 1GB LPDDR4X, 8GB e.MMC memory |
| Starting Temperature | – 25°C – + 55°C ( – 13°F – + 131°F ) |
| Operating temperature | – 25°C – + 55°C ( – 13°F – + 131°F ) |
| Storage temperature | – 25°C – + 60°C ( – 13°F – + 140°F ) |
| Operating humidity | 10% – 90% |
| Power Supply | AC24V ±10% / DC24V / PoE++(IEEE802.3bt) |
| Power Consumption | AC24V, 34.7W (Motor Drive & Illumination OFF) AC24V, 46.5W (Motor Drive & Illumination On) POE++, 38.8W (Motor Drive & Illumination OFF) POE++, 48W (Motor Drive & Illumination On) |
| Dimensions | 368mm(H) x 184mm(D) |
| Weight | 5900 g |
