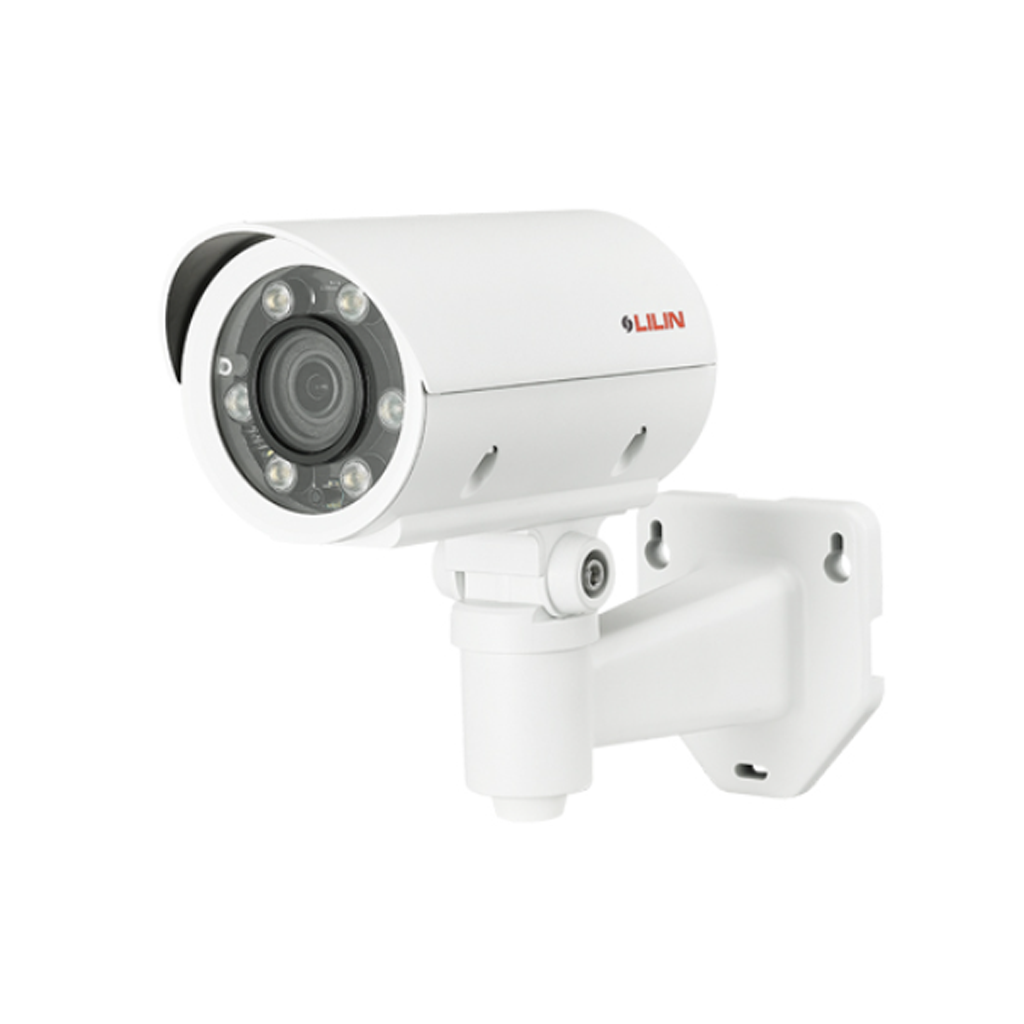

LILIN ZMR7722X
1080P Day & Night Auto Focus IR Vandal Resistant IP Bullet Camera
Features
- Full HD 2.0 megapixel CMOS image sensor
- 1080P True H.264 AVC High Profile video compression
- H.264 and Motion JPEG multi-profile video streaming
- Auto focus with zoom / focus motorized lens
- Smart H.264 supported
- 3D noise reduction (MCTF)
- 2D WDR function
- HDR function up to 100dB
- Digital PTZ supported
- IVS supported
- Tampering / Motion detection alarm function
- High efficiency IR LED, radiant distance up to 40m
- Day & Night (IR cut removable)
- ONVIF Profile S supported
- 2-way audio supported
- Digital I/O : 1 in, 1 out
Specifications
| Min. illumination/Low Light Mode (Colour) | Color : 0.035 Lux at F1.6 , B/W : 0.007 Lux at F1.6 , 0 Lux with IR LED ON |
| 2D WDR | Off / Auto / x2 / x3 / x4 (by normal mode) |
| Power Consumption | DC12V, 8.2W |
| PoE | PoE, 10.1W |
| Power Supply | DC12V ±10% , PoE (IEEE 802.3af compliant) |
| Pick Up Element | 1/2.8″ CMOS image sensor |
| Effective pixels | 1945 (H) x 1097 (V) = 2,133,665 (pixels) |
| IP Rating | IP66 waterproof |
| Focal Length | 2.8 – 8 mm (zoom / focus motorized) |
| Iris | F1.6 |
| Angle of View | H : 94.7° (W) – 57.1° (T) , V : 57.2° (W) – 31.9° (T) , D : 123.9° (W) – 65.7° (T) |
| Max IR distance | 40M |
| Peak wavelength | 850nm |
| Beam Spread | 60°, 90° |
| Operating temperature | -40℃ to 50℃ (-40℉ to 122℉) |
| CPU | Intel i3 or above |
| OS requirement | Windows 7, Windows 8, Windows 10 |
| RAM requirement | 4GB or above, Dedicated Graphics Card |
| Dimensions | Body : 98.5mm(W) x 90mm(H) x 195mm(D) , Bracket : 160mm(L) |
| Weight | 1450g approx. |
| Video Compression | H.264 Main and High Profile , Motion JPEG |
| Resolution | 1080p HD (1920×1080) , 720p HD (1280×960, 1280×720) , D1(720×480, 720×576) , CIF(640×480, 352×240) |
| Electrical Shutter | 1/30(1/25)s – 1/30000s |
| CPU.Memory | Embedded SoC ARM Cortex-A9, 600MHz, 256MB DDR3, 256MB flash memory |
