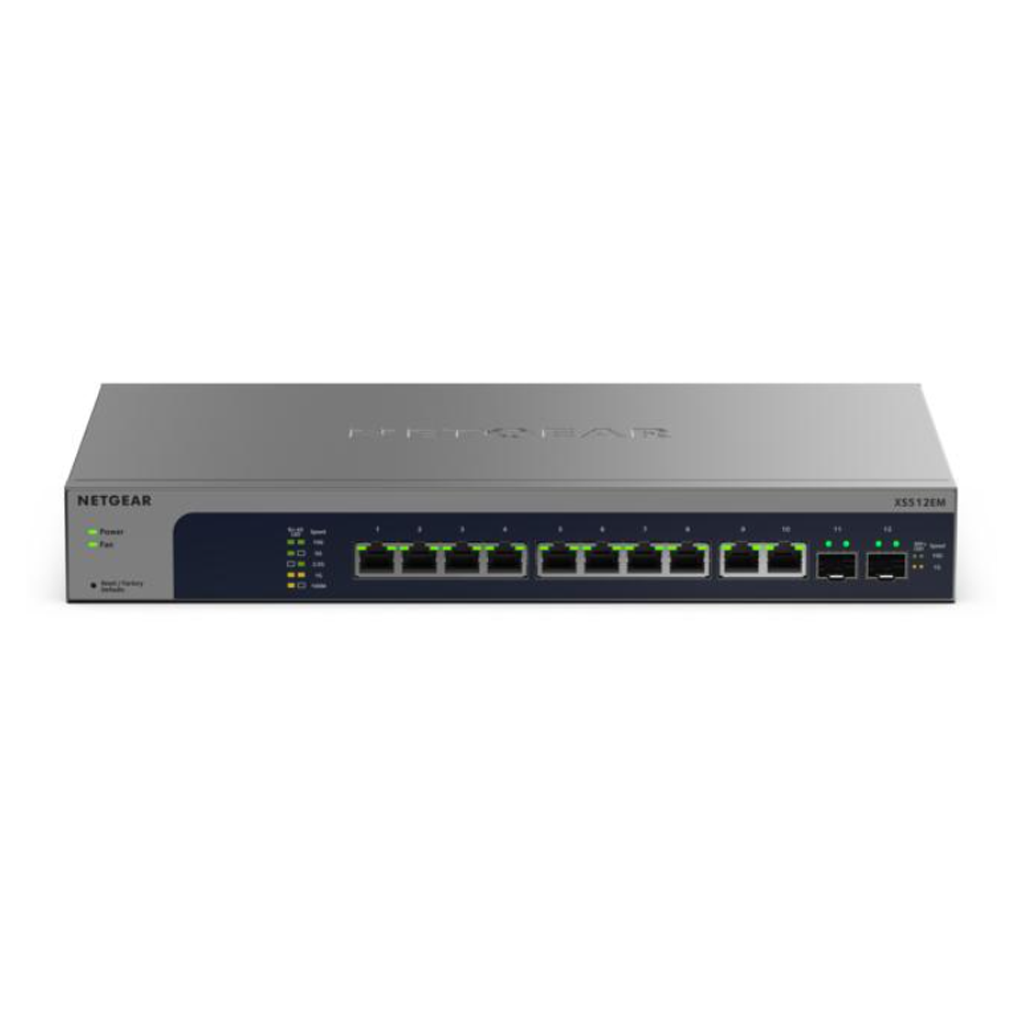

NETGEAR XS512EMv2
12-Port 10G/Multi-Gigabit Ethernet Easy Smart Managed Switch with 2 10G SFP+ Ports
Features
- 10 x 10G/Multi-Gigabit ports with 2 10G SFP+ ports
- Easy management with intuitive web-based Interface
- Versatile placement options: desktop or rackmount
- Optimized for low-noise operation
Specifications
| Speed | 1G/2.5G/5G/10G |
| Number of Ports | 100M/1G/2.5G/5G/10G RJ-45 copper ports: 10 SFP+ Ports : 2 (supports 2x10G copper modules) |
| Form Factor | Desktop/Rackmount |
| Bandwidth | 240 Gbps |
| MAC Table Size | 32K |
| Packet buffer size | 2MB |
| IEEE 802.1p QoS | Yes |
| VLAN (# supported) | 64 |
| Number of LAGs & number of members | 6 LAGs with max 8 members in each LAG |
| Supported multicast groups | 256 |
| Max Power Consumption | 60W |
| Energy Efficient Ethernet Support (IEEE 802.3az) | Yes |
| Fans | 2 |
| Acoustic noise level @ 25° C (dBA) | 28.2 dBA |
| LEDs | Power, Speed, Fan, Link/Activity |
| Operating Temperature | 0-50°C (32°F – 122°F) |
| MTBF (hours) | 420,709 hrs (48.1 years) |
| FCC Class | Class A |
| Dimensions (W x D x H) | 330 x 208 x 43 mm (13 x 8.2 x 1.7 in) |
| Weight | 2.5kg (5.5lb) |
