描述
POWERCOM-TCA
AVR – TCA AVR
POWERCOM-TCA 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明

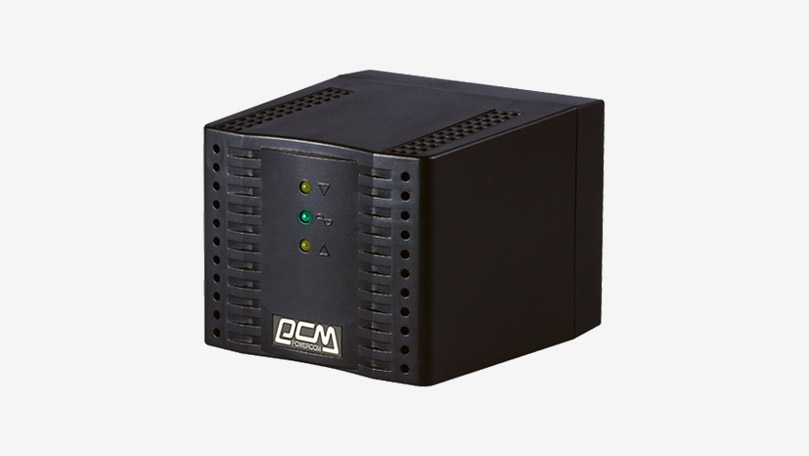

POWERCOM TCA series Auto Voltage Regulator (AVR) with compacted size and provide voltage protection for home, telecom system and office device. POWERCOM TCA series stabilize fluctuate Voltage including over voltage, under voltages and other voltage unstable condition. POWERCOM TCA series provide clean and stable voltage for connected equipment, though input with fluctuated or unstable voltage. TCA model with compact size, clear LED indicator, it is easy reading model status. POWERCOM TCA series with compact size and clear LED indicator are able to provide stable and clean voltage for connected equipment are the best choice for home, telecom system and office device.
- Automatic Voltage Regulator (AVR)
- Extended Input Voltage Range
- Output Power Full Protection
- High Power Efficiency
- Simple LED Indicator
- Compact Size Design
型號：TCA-600、TCA-1200、TCA-2000、TCA-3000
規格
| AVR | |||||
|---|---|---|---|---|---|
| Model | TCA-600 | TCA-1200 | TCA-2000 | TCA-3000 | |
| Power Rating | 300W | 600W | 1000W | 1500W | |
| Phase | Single phase | INPUT | |||
| Frequency | 50 or 60Hz | ||||
| Range | 110 / 120 Vac ±15% 220 / 230 / 240 Vac ±15% |
OUTPUT | |||
| Voltage Regulation | 110 / 120 Vac ±5% 220 / 230 / 240 Vac ±5%(Typical) |
||||
| Frequency | 50 / 60 Hz follow input | ||||
| Efficiency | > 95% | PROTECTION | |||
| Full Protection | Overload, Surge, Short Circuit | ||||
| Tel Communication | RJ11/ RJ45(Option) | MANAGEMENT & COMMUNICATION | |||
| Indicator | LED Panel | PHYSICAL | |||
| Dimensions(WxDxH)(mm) | 123 x 136 x 102 | ||||
| Weights(Kgs) | 1.45 | 1.6 | 1.8 | 2.1 | |
| Shipping Dimensions(mm) | 145 x 195 x 120 | ||||
| Shipping Weights(Kgs) | 1.65 | 1.8 | 2 | 2.3 | ENVIRONMENT |
| Operating Humidity | 0~90% RH at 0~40°C (Non-condensing) | ||||
| Audible Noise | Less than 40 dB | ||||
