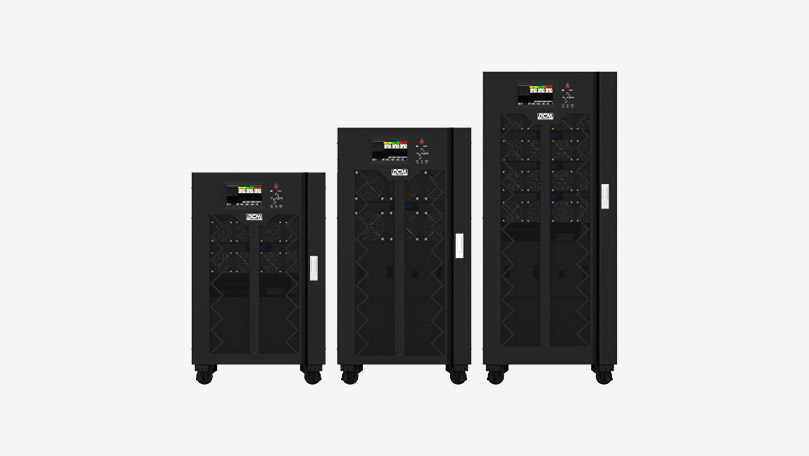

POWERCOM-VGDII-33
Vanguard-II 33 3 Phase UPS
POWERCOM-VGDII-33 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM VGDII-33 three phase UPS with expandable charging function and advance energy technology is the best choice for industrial and business usage. POWERCOM VGDII-33 three phase UPS shows up high performance and parallel up to 8 units and maximum parallel up to 1500KVA, high performance reach high energy efficiency up to 96%. POWERCOM VGDII-33 three phase UPS with high power density and compact size plus battery adjustable design, upgraded usable room for the customer. The indicator of VGDII-33 three phase UPS with LCD colorful touch screen and clearly show up UPS status, front and back door attachment are for easy maintenance. POWERCOM VGDII-33 three phase UPS with high environment adaptable are high heat dissipation and coat guarantee reliability. POWERCOM VGDII-33 three phase UPS with parallel high power density, compacted size and user-friend touch screen combination are power guarding of business application.
- Three Phase UPS with Transformerless Design
- Digital Signal Processor (DSP) Control
- Real-time Monitoring Available
- Conformal Coating for Better Reliability
- Self Burn-in Test for Acceptance Check
- UPS Parallelable Supporting up to 1500KVA
- VGDII-33 – 10K ~ 500K
型號：VGDII – 10K33、VGDII – 15K33、VGDII – 20K33、VGDII – 30K33、VGDII – 40K33
規格
| UPS | |||||||
|---|---|---|---|---|---|---|---|
| Model | VGDII – 10K33 | VGDII – 15K33 | VGDII – 20K33 | VGDII – 30K33 | VGDII – 40K33 | ||
| Capacity(VA) | 10K VA | 15K VA | 20K VA | 30K VA | 40K VA | ||
| Capacity(Watts) | 10K W | 15K W | 20K W | 30K W | 40K W | INPUT | |
| Grid System | 3 Phase + Neutral + Ground | ||||||
| Voltage | 380 / 400 / 415 Vac (Line-Line) | ||||||
| Voltage Range | Full Load : 304 ~ 478 Vac (Line-Line) Other : 228 ~ 304 Vac (Line-Line) (load decreases linearly according to min phase voltage) |
||||||
| Frequency | 50 / 60 Hz | ||||||
| Frequency Range | 40 – 70 Hz | ||||||
| Power Factor | > 0.99 | ||||||
| Current THDi | < 4% (Full Linear Load) | < 3% (Full Linear Load) | OUTPUT | ||||
| Inverter Voltage | 380 / 400 / 415 Vac (Line-Line) | ||||||
| Inverter Frequency | 50 / 60 Hz | ||||||
| Output Power Factor | 1.0 | ||||||
| Voltage Precision | ± 1.5% Typical (0-100% balanced Linear Load) | ||||||
| Transient Response | < 5% for step load (20% – 80% – 20%) | ||||||
| Transient Rescovery | < 30ms for step load (20% – 100% – 20%) | ||||||
| Output THDu | < 1% (linear load) < 5.5% (non-linear load) according to IEC/EN62040-3 | < 1% (linear load) < 6% (non-linear load) according to IEC/EN62040-3 | |||||
| Inverter Overload | 100 ~ 110% | 60 min | 30 min | ||||
| 110 ~ 125% | 60 ~ 10min | 30 ~ 5min | |||||
| 125 ~ 150% | 10 ~ 1min | 5 min ~ 10sec | |||||
| Frequency Regulation | Default : 50/60 Hz ± 0.1% | ||||||
| Synchronized Range | Default : ±3Hz Settable Range : ±0.5Hz to ±5Hz |
||||||
| Synchronized Slew Rate | Default : 0.5Hz/s Settable Range : 0.5Hz/s to 3Hz/s |
Battery and Charger | |||||
| Battery Voltage | ± 240VDC | ||||||
| Charger Voltage Precision | 1% | ||||||
| Charger Power | MAX = 20% System Power | Bypass Input | |||||
| Voltage | 380 / 400 / 415 Vac (Line-Line) | ||||||
| Voltage Range | Selectable default : -20% to +15% Upper Limit : +10%, +15%, +20%, +25% Lower Limit : -10%, -20%, -30%, – 40% |
||||||
| Frequency | 50 / 60 Hz | ||||||
| Frequency Range | Default : ±4Hz Settable Range : ± 1Hz, ± 3Hz, ± 5Hz |
||||||
| Bypass Overload | 125% long time operation 125% to 130% for 10min 130% to 150%, 1 min |
Efficiency | |||||
| Normal Operation | 95% max | > 95% | > 96% | ||||
| Battery Operation | 94.5% max | > 95% | > 96% | Static Transfer Switch | |||
| Inverter to Bypass | 0 ms | ||||||
| Bypass to Inverter | 0 ms | ||||||
| Transfer Efficiency | > 99% | Environment | |||||
| Operation Temperature | 0 – 40°C | ||||||
| Storage Temperature | -40°C ~ 70°C | ||||||
| Relative Humidity | 0 – 95% non-condensing | ||||||
| Noise (1m from surface) | 58dB @ 100% load 52dB @ 45% load |
65dB @ 100% load 62dB @ 45% load |
|||||
| Altitude | Normal : < 1000m Power declined 1% per 100m from 1000 to 2000m |
Physical Data | |||||
| Dimension(WxDxH)(mm) | 250 x 840 x 715 | 350 x 738 x 1335 | 500 x 840 x 1400 | ||||
| Weight (kg) | 53 | 50 | 96 | 164 | System | ||
| Display | LED + LCD touch screen | ||||||
| Interface | Standard : RS232 / RS485 / DryContact Optional : SNMP |
||||||
| Other Function | Standard : Battery Cold Start Optional : Parallel Kit |
||||||
| Maximum parallel quantity | 8 units | ||||||
