描述

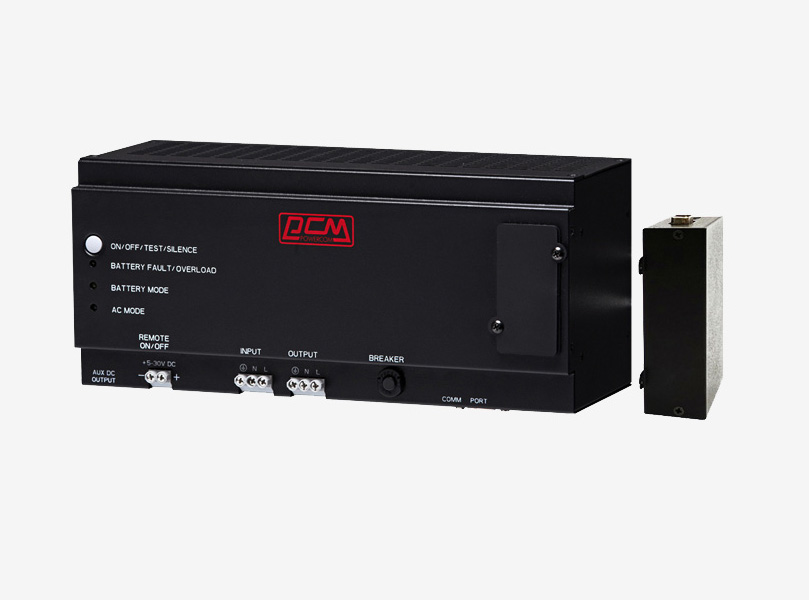

POWERCOM-DRU
DRU – Din Rail FUNCTIONAL UPS
POWERCOM-DRU 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM DRU UPS with Din Rail Mounting design and RS232 communication port, capability for SNMP, Modbus, Dry contact communication (optional) and remote power ON/OFF ideal for industrial application. Lightweight and compact size of DRU series allows easy installation for industrial equipment and automation control systems. DRU UPS outputs clean and stable power for essential devices. In addition, it is designed with advanced microprocessor control, energy saving green topology and audible alarm system, bringing up energy-saving and efficient operating function for essential devices. DRU series provides overload protection, power protection, and surge protection on connected electronic devices.
- OFF-Line UPS for Specific Demand
- Din Rail Mounting Available
- Cold Start Function Capability
- Lightweight and Compact Size Design
- Remote Power on/off Control Available
- Surge, Short Circuit, Overload Protections
- SNMP, Modbus, Dry Contact Relay Support
- DRU – 500 / 850 / 1000 / 1500
型號：DRU-500、DRU-850、DRU-1000、DRU-1500
規格
| UPS | |||||
|---|---|---|---|---|---|
| Model | DRU-500 | DRU-850 | DRU-1000 | DRU-1500 | |
| Capacity(VA) | 500 VA | 850 VA | 1000 VA | 1500 VA | |
| Capacity(Watts) | 300 W | 510 W | 600 W | 900 W | |
| Form | Din Rail Mounting Type | INPUT | |||
| Voltage | 100 / 110 / 120 or 220 / 230 / 240 Vac | ||||
| Voltage Range | 85 – 138 or 165 – 276 Vac | ||||
| Frequency Range | 50 / 60 Hz (Auto Sensing) | OUTPUT | |||
| Waveform | Simulated Sine Wave | ||||
| Voltage | 100 / 110 / 120 or 220 / 230 / 240 Vac | ||||
| Frequency | 50 / 60 Hz ± 0.3 Hz | ||||
| Transfer Time | 2 – 4 ms(Typical) | PROTECTION | |||
| Full Protection | Overload, Surge, Short Circuit | BATTERY | |||
| Model | DRU-500 | DRU-850 | DRU-1000 | DRU-1500 | |
| Battery Type | 12V 7.2Ah | 12V 9Ah | 12V 5Ah | 12V 5.5Ah | |
| Quantity | 1 | 2 | |||
| Sealed, Maintenance Free | Yes | ||||
| Typical Recharge Time | 8 hr to 90% | MANAGEMENT & COMMUNICATION | |||
| Indicator | LED Panel | ||||
| Communication Port | RS232 / SNMP SLOT | ||||
| Communication | Option : SNMP card / Modbus card / Dry Contact Relay Box | PHYSICAL | |||
| Dimensions(WxDxH)(mm) | 282 x 110 x 124 | 350 x 125 x 135 | |||
| Weights(Kgs) | 4.3 | 4.9 | 6.8 | 7 | |
| Shipping Dimensions(mm) | 381 x 243 x 231 | 448 x 253 x 255 | |||
| Shipping Weights(Kgs) | 5.1 | 5.7 | 7.7 | 7.9 | Alarm |
| Overload / Fault | Continuous Beeping | ||||
| Battery Mode | Beep every 4 seconds | ||||
| Low Battery | Beep every 0.5 seconds | Environment | |||
| Operating Humidity | 0~90% RH at 0~40°C (Non-condensing) | ||||
| Audible Noise | Less than 40 dB | ||||
