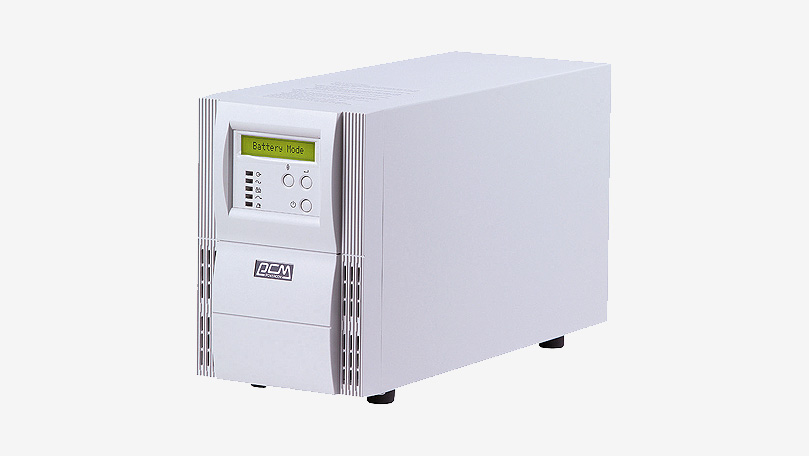

POWERCOM-VGD
VGD – Vanguard ON – Line UPS
POWERCOM-VGD 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM VGD Online UPS series provide pure sine wave output for electronic devices. VGD online UPS are design as the safe guard of high-class computer, data center and server. VGD series contain power factor 1.0, output pure sinewave and double conversion topology, brings up great quality output and UPS performance. VGD series added Diagram LCD Display and Six sections Fan Regulation for information indication directly and operating environment quietly, upgrades user experience and working quality. POWERCOM VGD series combine with high tech design and better model performance is the best choice for high-class computer, data center and server.
- On-Line UPS with Tower Type Design
- Pure Sinewave with Double Conversion
- Hot Swappable Battery Replacement
- Extendable Battery Pack Support
- High Efficiency and Free-Run Mode Available
- Overload, Surge, Short Circuit Protection
- VGD-700 ~ 20KVA
型號：VGD-700、VGD-1000、VGD-1500、VGD-2000、VGD-3000、VGD-4000、VGD-5000
規格
| UPS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | VGD-700 | VGD-1000 | VGD-1500 | VGD-2000 | VGD-3000 | VGD-4000 | VGD-5000 | ||||
| Capacity(VA) | 700 VA | 1000 VA | 1500 VA | 2000 VA | 3000 VA | 4000 VA | 5000 VA | ||||
| Capacity(Watts) | 490 W | 700 W | 1050 W | 1400 W | 2100 W | 2800 W | 3500 W | ||||
| Form | Tower Type | ||||||||||
| Phase | 1 Phase | ||||||||||
| Energy Saving | Yes – ECO Mode Efficiency > 94% | INPUT | |||||||||
| Voltage | 100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240 Vac | 208 / 220 / 230 / 240 Vac | |||||||||
| Voltage Range (110 Vac) | 60 – 144 Vac, < 40% Load 70 – 144 Vac, < 70% Load 80 – 144 Vac, < 100% Load | 120 – 276 Vac, < 25% Load 140 – 276 Vac, < 50% Load 160 – 276 Vac, < 75% Load 180 – 276 Vac, < 100% Load | |||||||||
| Voltage Range (220 Vac) | 120 – 276 Vac, < 40% Load 140 – 276 Vac, < 70% Load 160 – 276 Vac, < 100% Load | ||||||||||
| Frequency Range | 50 / 60 Hz (Auto Sensing) | ||||||||||
| Power Factor | > 0.97 | ||||||||||
| Cold Start | Yes | OUTPUT | |||||||||
| Rated Power Factor | 0.7 | ||||||||||
| Waveform | Pure Sine Wave | ||||||||||
| Voltage | 100 / 110 / 115 / 120 / 127 or 208 / 220 / 230 / 240Vac ± 2% | 208 / 220 / 230 / 240 Vac ± 2% | |||||||||
| Frequency | 50 / 60 Hz ± 0.25 Hz | ||||||||||
| Transfer Time | 0 ms | ||||||||||
| Harmonic Distortion | 3% THD at Linear Load | ||||||||||
| Crest Factor | 3 : 1 | ||||||||||
| EPO Function | Yes | ||||||||||
| Output Receptacle Option | PROTECTION | ||||||||||
| Overload | Line Mode | 110% – 125% for 60 seconds 125% – 150% for 10 seconds | |||||||||
| Battery Mode | > 110% for 10 seconds | ||||||||||
| Surge Protection | IEC 61000-4-5 Level 3 | ||||||||||
| Bypass | Internal Bypass(Automatic and Manual) | ||||||||||
| Short Circuit Protection | UPS Output Cut Off Immediately | BATTERY | |||||||||
| Model | VGD-700 | VGD-1000 | VGD-1500 | VGD-2000 | VGD-3000 | VGD-4000 | VGD-5000 | ||||
| Type | 12V 7Ah | 12V 7Ah | 12V 9Ah | 12V 7Ah | 12V 9Ah | 12V 7Ah | 12V 9Ah | ||||
| Quantity | 2 | 3 | 3 | 6 | 6 | 10 | 10 | ||||
| Sealed, Maintenance Free | YES | ||||||||||
| Typical Recharge Time | 4 Hr to 90% | ||||||||||
| External Battery Module | Option | ||||||||||
| External Battery Connector | Option | MANAGEMENT & COMMUNICATION | |||||||||
| LCD Control Panel | YES | ||||||||||
| Communication Port | RS232, USB(B-type), SNMP(Option) | ||||||||||
| Audible Alarms | YES | ||||||||||
| SNMP Slot | Option | PHYSICAL | |||||||||
| Dimensions(WxDxH)(mm) | 152 x 420 x 237 | 225 x 420 x 360 | 258 x 537 x 440 | ||||||||
| Weights(Kgs) | 15.3 | 16 | 17.7 | 30.6 | 33.5 | 50 | |||||
| Shipping Dimensions(mm) | 280 x 545 x 355 | 340 x 526 x 485 | 406 x 682 x 525 | ||||||||
| Shipping Weights(Kgs) | 17.5 | 17.4 | 19.5 | 33.2 | 35.9 | 53 | |||||
