描述

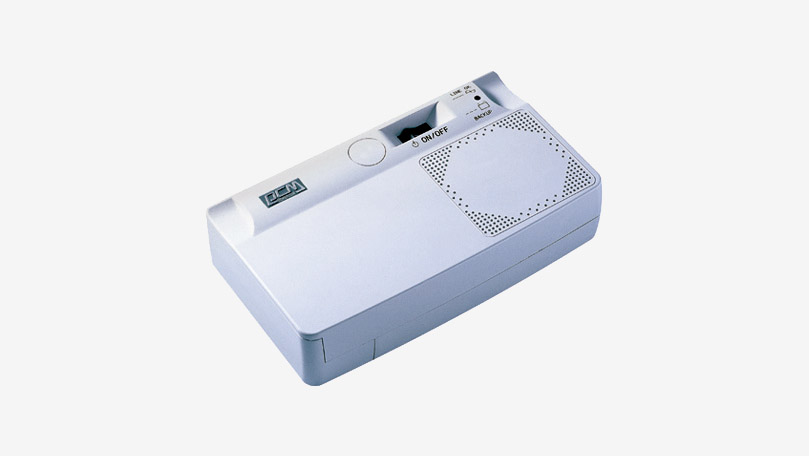

POWERCOM-DC
DC UPS OFF – line UPS
POWERCOM-DC 屬POWERCOM不斷電系統（UPS）產品。傑成系統有限公司（香港防盜）為POWERCOM產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。UPS 可為閉路電視錄影機、門禁控制器、網絡設備及伺服器提供後備電源，方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
POWERCOM DC UPS with compact size and DC power protection for electronic device is the best choice for home, office and mini workstation in DC power. POWERCOM DC UPS are specialize design for DC electronic device. DC UPS with wide voltage range, cold start function and easy-reading UPS Status LED display, Audible Noise are attached with DC UPS to show up model status as warming. DC UPS series offers power protection including overload, surge and short circuit protection to the essential device. POWERCOM DC UPS with wide voltage range, cold start function and power protections are the best choice for home, office and mini workstation DC device.
- DC Output UPS Design
- Wide input voltage range
- Cold Start Function Available
- Energy Saving Green Topology
- Overload, Surge, Short Circuit Protection
型號：DC 12V、DC 18V、DC 24V、DC 48V
規格
| UPS | |||||
|---|---|---|---|---|---|
| Model | DC 12V | DC 18V | DC 24V | DC 48V | |
| Capacity (Watts) | 30 W | INPUT | |||
| Voltage Range | 86 – 276VAC | ||||
| Frequency Range | 50 / 60 Hz | OUTPUT (On Battery) | |||
| Voltage Regulation | ±15% | ±10% | |||
| Transfer Time(ms) | 5 | Battery | |||
| Type | 12V 5Ah | ||||
| Number | 1 | ||||
| Typical Recharge Time | 8 hrs to 90% capacity | PROTECTION | |||
| Full Protection | Overload, Short Circuit, Surge | MANAGEMENT | |||
| Indicator | LED Indicator | PHYSICAL | |||
| Dimensions(WxDxH)(mm) | 267 x 155 x 64 | ||||
| Weights(Kgs) | 2.4 | ||||
| Shipping Dimensions(mm) | 359 x 198 x 79 | ||||
| Shipping Weights(Kgs) | 2.6 | Alarm | |||
| Overload | Continuous Beeping | ||||
| Battery Mode | Beep every 4 seconds | ||||
| Low Battery | Beep every 0.5 seconds | Environment | |||
| Operating Humidity | 0~90% RH at 0~40°C (Non-condensing) | ||||
| Audible Noise | Less than 40 dB | ||||
