描述
Reolink CX820 是 4K 8MP ColorX PoE 網絡鏡頭，以 F1.0 大光圈配 1/1.8 吋 CMOS 在低光環境顯示全彩夜視，支援人形、車輛及動物偵測及 H.265 編碼。香港防盜為安裝商及經銷商，規格以原廠為準。

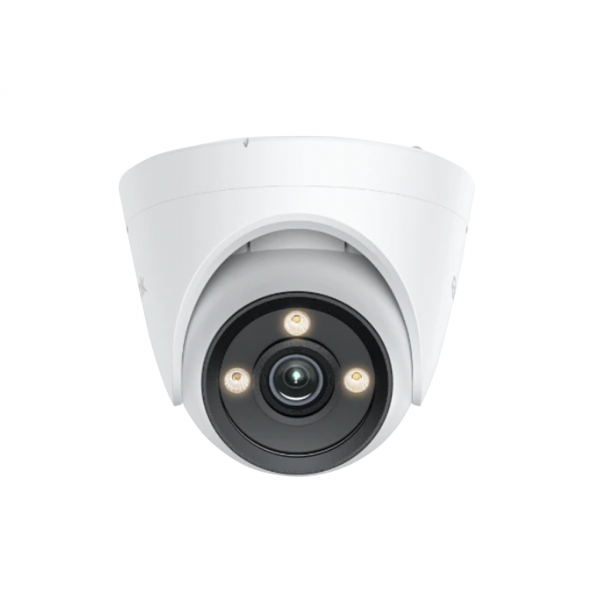

Reolink CX820
4K 8MP ColorX PoE camera
Features
- F1.0 Super Aperture
- HDR Technology
- True Full-Color Night Vision in the Dimmest Light
- Person/Vehicle/Animal Detection
Specification
| Video & Audio | |
| Image Sensor | 1/1.8″ CMOS sensor |
| Resolution | 3840*2160（8Megapixels)@25FPS |
| Lens | f=4mm F=1.0, with IR Cut |
| Video Compression | H.265/H.264 |
| Field of View | Horizontal: 93.2° Vertical: 48.2° Diagonal: 111.6° |
| Day & Night | Color night vision |
| Color Night Vision | 3pcs/2.8W/3000K/400Lumens |
| Frame Rate | Main stream: 2fps – 25fps(default: 25fps) Sub stream: 4fps – 15fps(default: 10fps) |
| Code Rate | Main stream:1024Kbps -8192Kbps(default: 6144Kbps) Sub stream: 64Kbps – 512Kbps(default: 256Kbps) |
| Audio | Two-way audio |
| Power Requirements | |
| PoE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V23 93 1A, <12W |
| Interface | |
| Power Port | DC power port |
| Ethernet Port | One 10M/100Mbps RJ45 |
| SD Card Slot | Supports Max. 256GB microSD card |
| Reset Button | YES |
| Audio In/Out | Built-in microphone & speaker |
| Working Environment | |
| Temperature | Operating temperature: -10°C~+55°C (14°F~131°F) |
| Humidity | Operating humidity: 10% ~ 90% |
| Weatherproof | IP67 |
| Mechanical | |
| Dimensions | Φ 117.4x 103.8mm |
| Weight | 515g |
