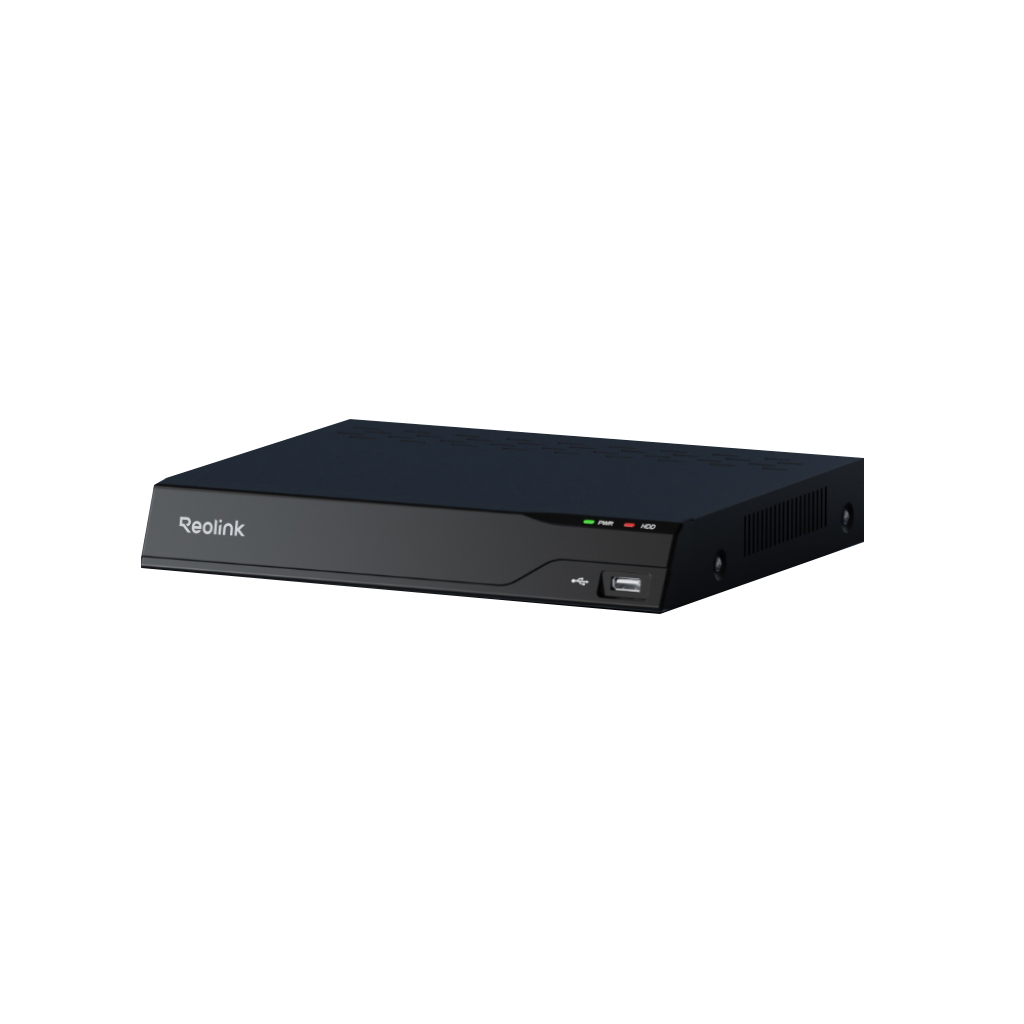

Reolink NVS8
8-Channel PoE NVR for 24/7 Reliable Recording
Features
- Support up to 12MP
- Power over Ethernet
- 8-Channel NVR
- 24/7 Recording
Specification
| Hardware | N7MB01 |
| Video/Audio Input | |
| IP Video Input | PoE IP Camera x 8 |
| Audio Input | Cameras with built-in mic |
| Video/Audio Output | |
| HDMI Output Resolution | 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| VGA Output Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
| Audio Output | 1-channel, RCA |
| Decoding | |
| Video Compression | H.264/H.265 |
| Live View/Playback Resolution | 7680×2160, 4608X1728,4512X2512,4096X3072,3840 X2160, 2560X2560, 2560X1920, 2560X1440,2048X1536, 2304X1296,1080P, 720P |
| Synchronous Playback | Up to 4 channels |
| HDD | |
| SATA | 1 x SATA interface |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| External HDD | 1 eSATA Interface for HDD |
| External Interface | |
| USB Interface | 2 x USB 2.0 |
| Network Interface |
• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN • 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| PoE | |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network | |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| General | |
| Power Supply | DC 48V~53V |
| Power Consumption | <10W (Without HDD & PoE) |
| Working Environment | Temperature: -10°C ~ +45°C (14°F ~113°F); Humidity: 10% ~ 90% |
| Dimensions | 255 x 49.5 x 232mm |
| Weight | 1.4kg |
