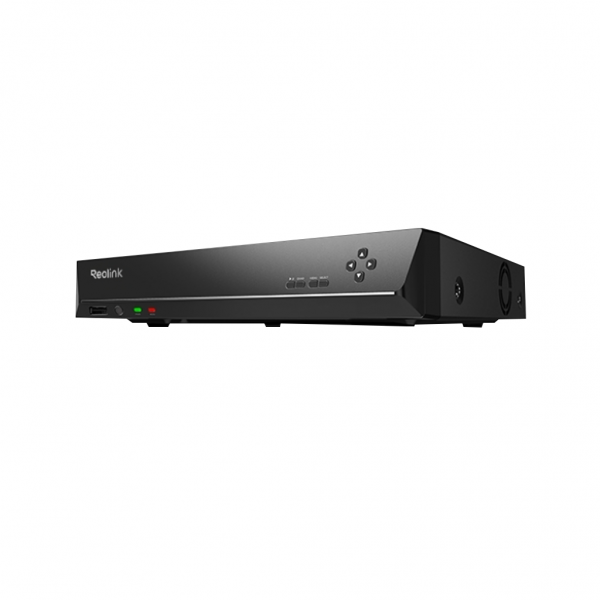

Reolink RLN36
36-Channel NVR with 48TB Storage Capacity
Features
- 36 Channels at 16MP
- 3* 16TB HDD Capacity
- 8* Alarm In/4* Alarm Out
- 2-Way Audio via NVR
Specification
| Hardware | 36-Channel 12MP Network Video Recorder |
| External Interfaces | |
| Video Out | 1 HDMI, 1 VGA |
| Audio Ports | 1 audio-in channel, RCA; 1 audio-out channel, RCA |
| USB Ports | Front panel: 1 x USB 2.0; back panel: 1 x USB 2.0, 1x USB 3.0 |
| Ethernet Ports | • 4 x RJ-45, 10/100/1000 Mbps selfadaptive (for IP cameras) • 1 x RJ-45, 10/100/1000 Mbps selfadaptive (for LAN/WAN) • No PoE Port |
| Alarm | In: 8 channels; Out: 4 channels |
| Video | |
| IP Camera Input | Supports up to 36 channels of IPC access; each channel up to 12MP input |
| Video Output | • HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 • VGA: 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Audio | |
| Two-Way Audio | Built-in audio in & out ports |
| Audio In | Via cameras with mic; via built-in 1 channel |
| Audio Out | Via bulit-in 1 channel |
| Recording | |
| Video Compression | H.265, H.264 |
| Live View / Playback Resolution | 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p |
| Synchronous Playback | 1-4 channels |
| Supported Modes | Person/vehicle event recording; motion-triggered recording; 24/7 recording |
| Storage | |
| Internal HDD | 3 SATA ports for 3 HDDs (optional) |
| External HDD | No |
| Max. Capacity | 48TB (max. 16TB HDD for each SATA) |
| Network | |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| General | |
| Power Supply | DC 12V/5.4A |
| Power Consumption | <10W（without HDD） |
| Working Environment | -10°C ~+45°C (14°F~113°F); 10%~90% |
| Dimensions | 330 x 48 x 310mm |
| Weight | 2.26kg (without HDD) |
