描述

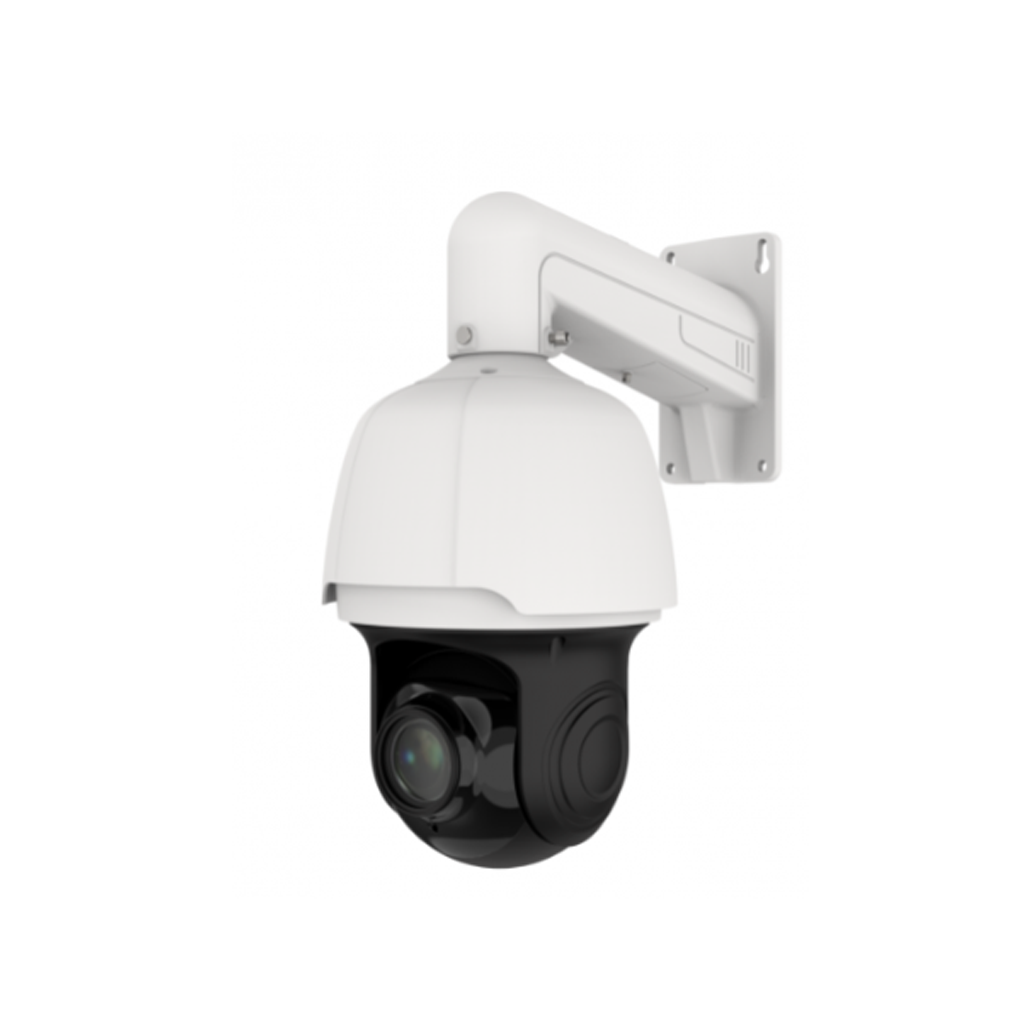

RIFATRON PUT2-NSD2-NS
IP Camera
Features
- Series : T Series
- Category : Special Camera
- Resolution : 2MP
- Lens Type : Fixed
Specification
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Max. Resolution | 1920×1080 |
| Min. Illumination | Color: 0.002 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/5 s to 1/20000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 25x optical |
| Lens | |
| Focal Length | 5.0 mm to 125 mm |
| FOV | Horizontal field of view: 55° to 2.3° (wide-tele), Vertical field of view: 41.6° to 1.7° (wide-tele), Diagonal field of view:67.9° to 2.8° (wide-tele) |
| Aperture | Max. F1.5 |
| Focus | Auto,manual |
| Illuminator | |
| Supplement Light Range | IR Distance: up to 150 m |
| Supplement Light Type | IR |
| PTZ | |
| Movement Range(Pan) | 360° |
| Movement Range(Tilt) | -10° to 90° (auto flip) |
| Pan Speed | Pan speed: configurable from 0.6° to 200°/s; preset speed: 200°/s |
| Tilt Speed | Tilt speed: configurable from 0.6° to 90°/s, preset speed 100°/s |
| Presets | 255 |
| Patrol Scan | 1 Scan |
| Pattern Scan | 4 pattern |
| Video | |
| Main Stream | 50 Hz: 25fps (2592×1944/2592×1520/2048×1536/2304×1296/1920×1080/1280×960/1280×720) 60 Hz: 30 fps (2592×1944/2592×1520/2048×1536/2304×1296/1920×1080/1280×960/1280×720) |
| Sub-Stream | 50 Hz: 25 fps (1280×720/640×480/320×240) 60 Hz: 30 fps (1280×720/640×480/320×240) |
| Third Stream | 50 Hz: 25 fps (640×480/320×240) 60 Hz: 30 fps (640×480/320×240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG Third stream: H.265+/H.265/H.264+/H.264 |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 120 dB |
