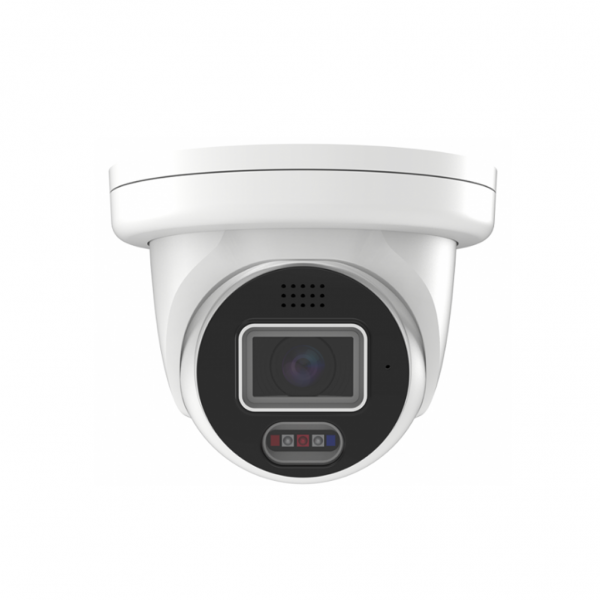

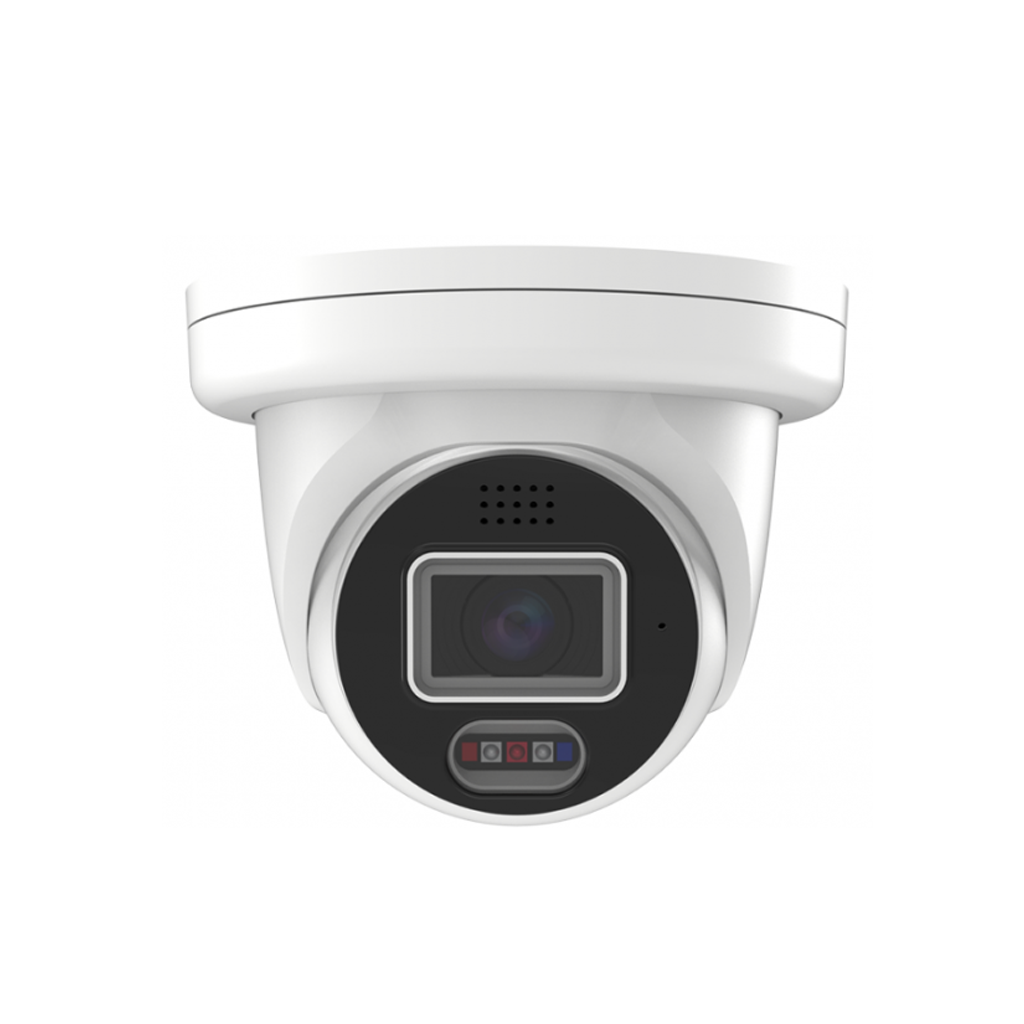

RIFATRON TLO1-NFU4-XO
IP Camera
Features
- Series : O Series
- Category : Ultra Low Light
- Appearance : Turret
- Resolution : 4MP
- Lens Type : Fixed
Specification
| Camera | |
| Image Sensor | 1/1.8″ Progressice Scan CMOS |
| Effective Pixels | 4MP (2688×1520) |
| Min. Illumination | Color: 0.0005Lux @ (F1.0, AGC ON), B/W 0 Lux with IR on |
| Shutter Speed | 1/5s to 1/20,000s |
| Lens | |
| Type / Focal Length | Fixed / 3.6mm |
| Filed of View(FOV) | H: 96°, V: 51°, D: 115° |
| Aperture | F1.0 |
| Illuminator | |
| Light Type | Warm Light, Red/Blue Light |
| Range(IR/WARM) | None / Up to 20m |
| Video | |
| 1st stream | 4MP(2688×1520), 3MP(2304×1296), 1080P(1920×1080) |
| 2nd stream | 1080P(1920×1080), 720P(1280×720), VGA(640×480) |
| 3rd stream | VGA(640×480), QVGA(320×240) |
| Compression | H.265 / H.264 |
| Video Quality Ajustment | Full Color Mode / Day&Night Mode / Schedule |
| Bitrate Control | VBR / CBR |
| Audio | |
| Sampling Rate | 8k |
| Compression | G.711ulaw / G.711alaw |
| Bitrate | 64kbps |
| Network | |
| API | ONVIF (Profile S, G, T) |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter; complicated password; Authenticated username and password |
| Image | |
| Day & Night | Yes |
| WDR | Yes |
| Image Enhancement | 3D DNR, White Balance |
| Image Settings | Full Color Mode |
| Interface | |
| Ethernet | RJ45 (10/100BASE-T) |
| On-Board Storage | Micro SD slot, up to 256GB |
| General | |
| Material | Metal |
| Power | D12V / POE (IEEE802.3af) |
| Operating Conditions | -35～+60°C / less than 90% RH |
| Ingress Protection / IK code | IP67 |
