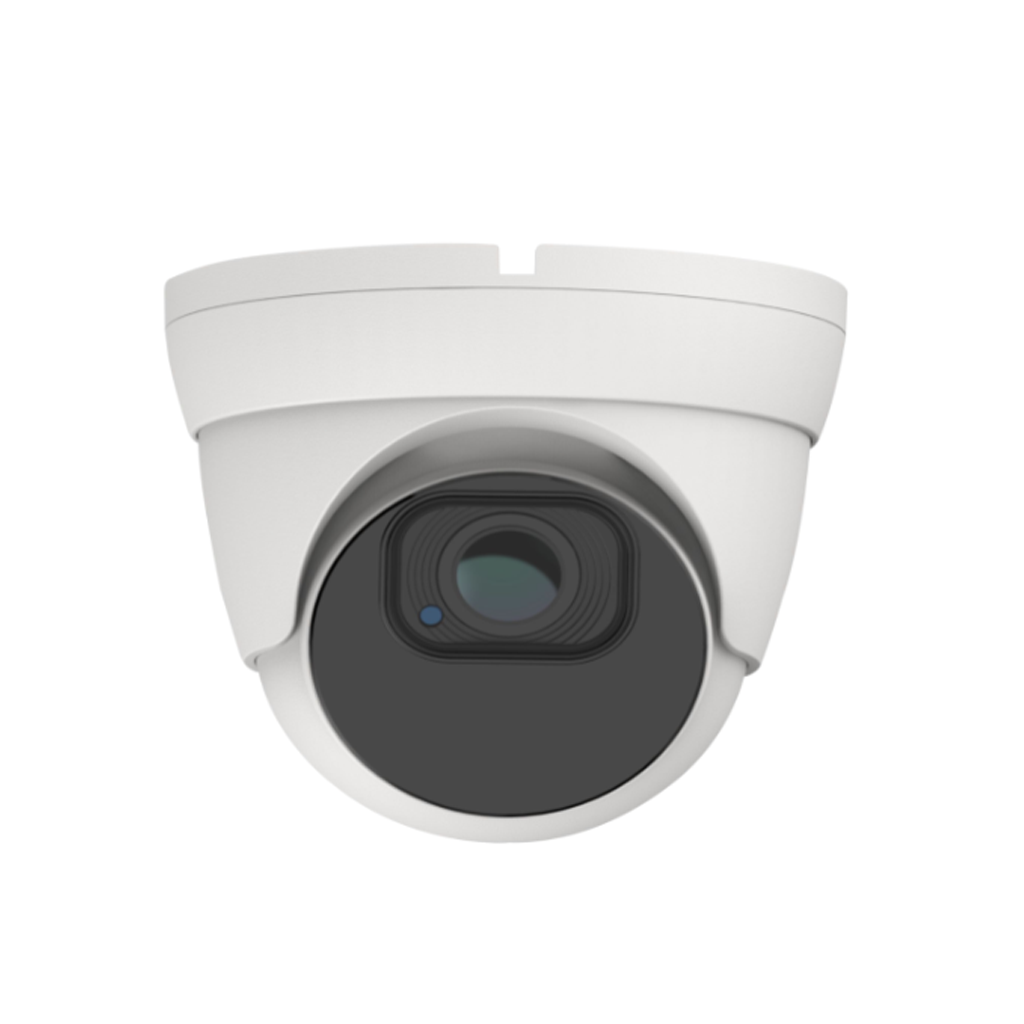

RIFATRON TMT2-AVD5-TM
Analog Camera
Features
- Series : T Series
- Category : Day&Night
- Appearance : Turret
- Resolution : 5MP
- Lens Type : Varifocal
Specification
| Camera | |
| Image Sensor | 1/2.7″ Progressice Scan CMOS |
| Effective Pixels | 5MP (2592 × 1944) |
| Min. Illumination | [email protected](AGC ON), B/W 0 Lux IR on |
| Electronic Shutter | Auto |
| Lens | |
| Type / Focal Length | Varifocal / 2.8-12mm |
| Filed of View(FOV) | H:106.6°-34.6°/V:54.4°-19.5°/D:132.9°-39.8° |
| Aperture | F1.8-3.3 |
| Illuminator | |
| Light Type | IR |
| Range(IR/WARM) | Up to 35m |
| General | |
| UTC | ACP(AHD Coax Protocol) |
| Power Supply | DC 12V |
| Power Consumption | IR OFF ≤1W，IR ON ≤4W |
| Operating Temp. | -30 °C to 55 °C |
| Ingress Protection / IK code | IP66 |
