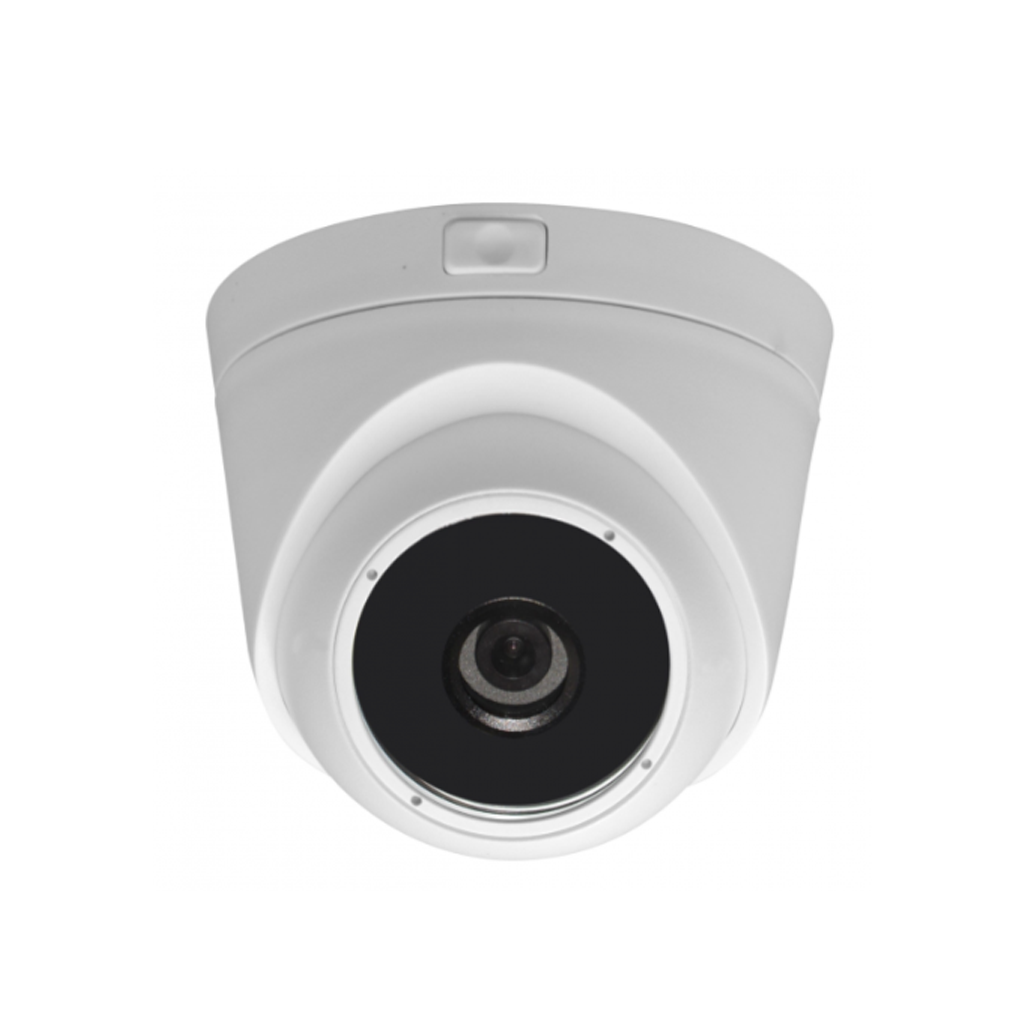

RIFATRON TMY3-NFD5-MS
IP Camera
Features
- Series : Y Series
- Category : Day&Night
- Appearance : Turret
- Resolution : 5MP
- Lens Type : Fixed
Specification
| Camera | |
| Image Sensor | 1/2.8″ Sony IMX335 CMOS |
| Effective Pixels | 5MP (2592 x 1944) |
| Min. Illumination | [email protected](AGC ON), 0Lux IR on |
| Shutter Speed | 1/25s ~ 1/100000s |
| Lens | |
| Type / Focal Length | Fixed / 3.6mm |
| Aperture | F1.2 |
| Illuminator | |
| Light Type | SMD |
| Range(IR/WARM) | Up to 30m |
| Video | |
| 1st stream | 25fps (2592×1944), 30fps (2688×1520, 1920×1080, 1280×720) |
| 2nd stream | 25fps (640×480, 640×360) |
| Compression | H.265 / H.264 |
| Video Quality Ajustment | 64Kbps ~ 8Mbps |
| Bitrate Control | CBR / VBR |
| Audio | |
| Compression | G.711-u / G.711-a/AAC |
| Network | |
| API | ONVIF (Profile S, T) |
| Protocols | HTTP(S) / RTSP / RTMP / FTP / NFS / SMTP / DHCP / NTP, etc. |
| Security | User authentication, video data encryption |
| Image | |
| Day & Night | Auto / Color / (B/W) / Timing |
| WDR | Digital WDR |
| Image Enhancement | AGC / BLC / HLC / 2D, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance |
| Interface | |
| Ethernet | 1-RJ45, 10M / 100Mbps |
| General | |
| Material | Plastic |
| Power | 12 VDC ± 10% |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F) |
| Ingress Protection / IK code | IP66 |
