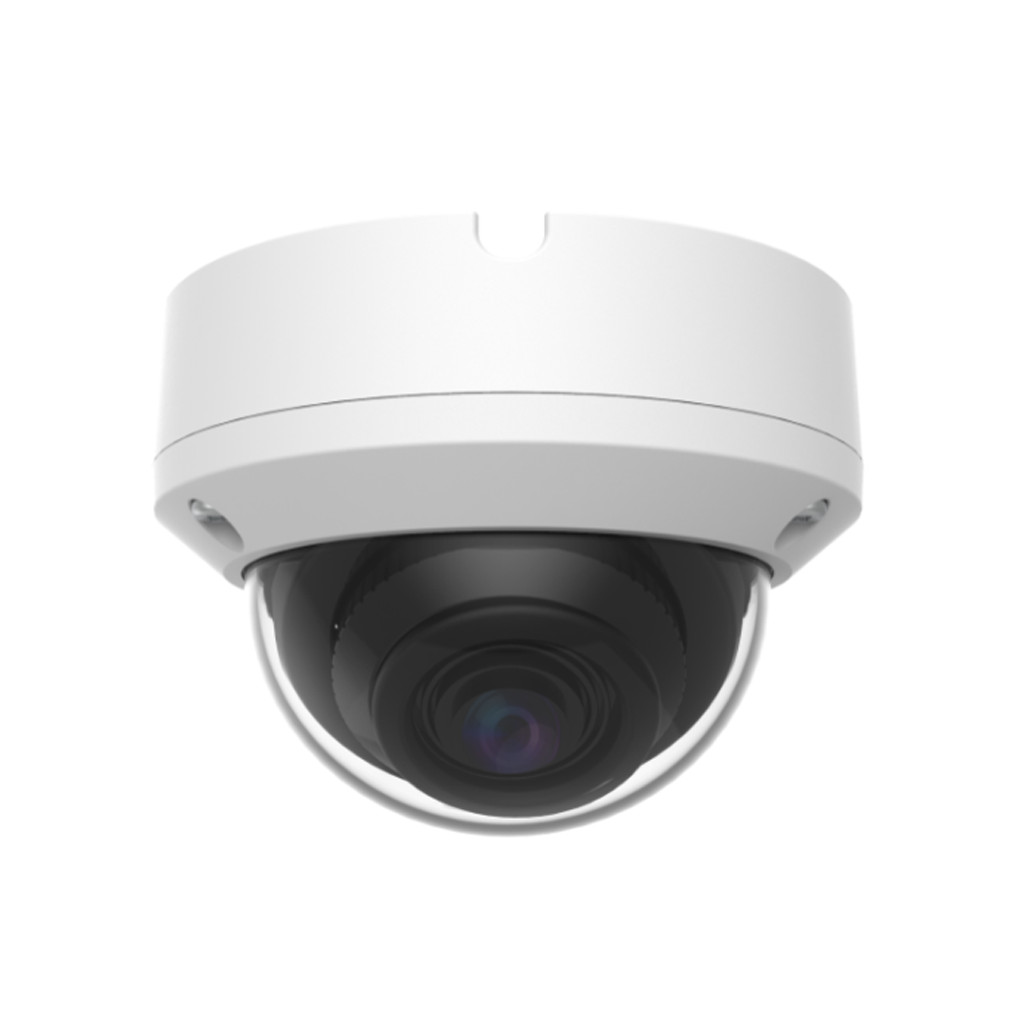

RIFATRON VMT2-NFD5-NM
IP Camera
Features
- Series : T Series
- Category : Day&Night
- Appearance : Dome
- Resolution : 5MP
- Lens Type : Fixed
Specification
| Camera | |
| Image Sensor | 1/2.7″ Progressice Scan CMOS |
| Effective Pixels | 5MP (2880 x 1620) |
| Min. Illumination | [email protected](AGC ON), B/W 0 Lux IR on |
| Shutter Speed | 1/5s to 1/20,000s |
| Lens | |
| Type / Focal Length | Fixed / 2.8mm |
| Filed of View(FOV) | H: 110°, V: 58°, D: 133° |
| Aperture | F1.6 |
| Illuminator | |
| Light Type | IR |
| Range(IR/WARM) | Up to 20m |
| Video | |
| 1st stream | 30fps (2880×1620, 2560×1440, 2304×1296, 1920×1080, 1280×720) |
| 2nd stream | 30fps (1280×720, 640×480, 320×240) |
| 3rd stream | 30fps (640×480, 320×240) |
| Compression | H.265 / H.264 |
| Video Quality Ajustment | 256Kbps to 8Mbps |
| Bitrate Control | CBR / VBR |
| Audio | |
| Sampling Rate | 8k |
| Compression | G.711ulaw / G.711alaw |
| Bitrate | 64kbps |
| Network | |
| API | ONVIF (Profile S, G, T) |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter; complicated password; Authenticated username and password |
| Image | |
| Day & Night | Day / Night / Auto / Image / Schedule |
| WDR | TWDR |
| Image Enhancement | 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, white balance |
| Interface | |
| Ethernet | 1-RJ45, 10M/100Mbps |
| On-Board Storage | Micro SD, up to 256 GB |
| General | |
| Material | Metal |
| Power | DC12V |
| Operating Conditions | -35 °C to 60 °C (-31 °F to 140 °F) |
| Ingress Protection / IK code | IP67 |
