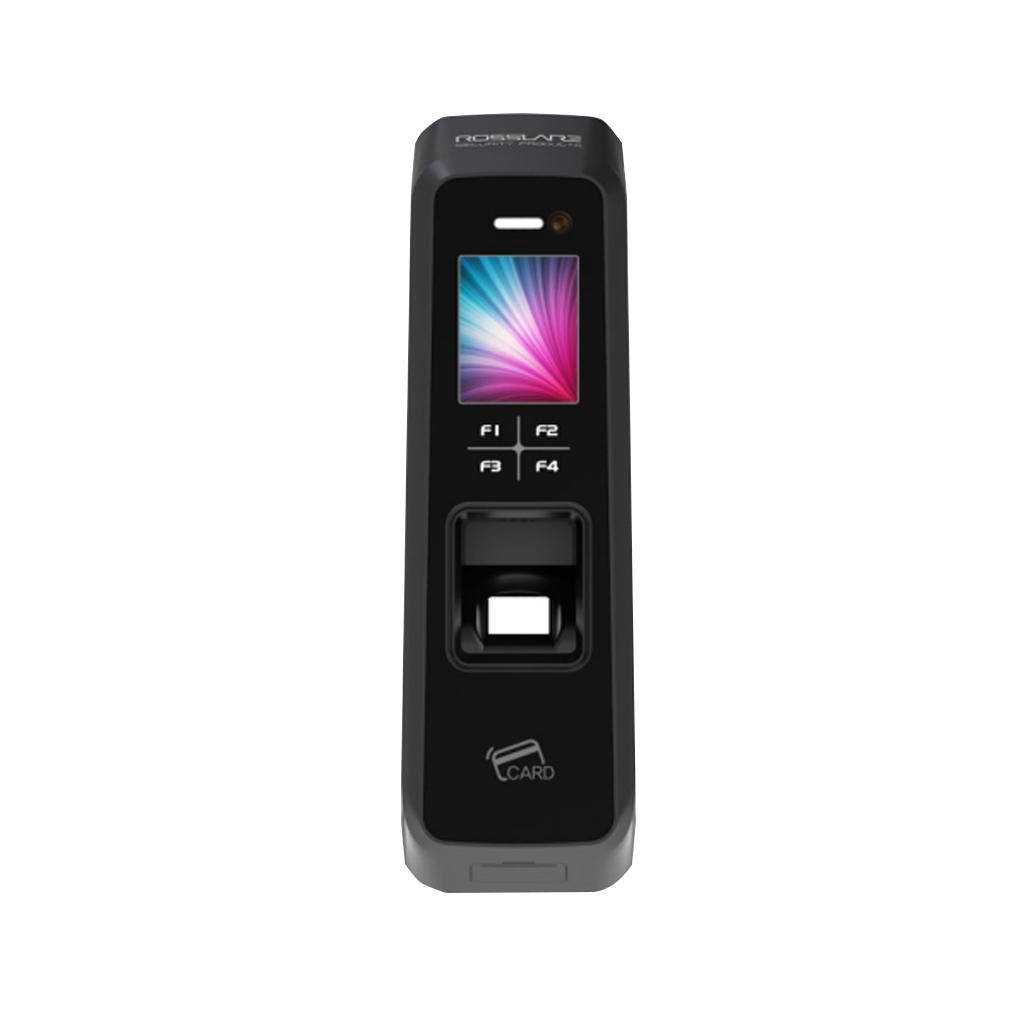

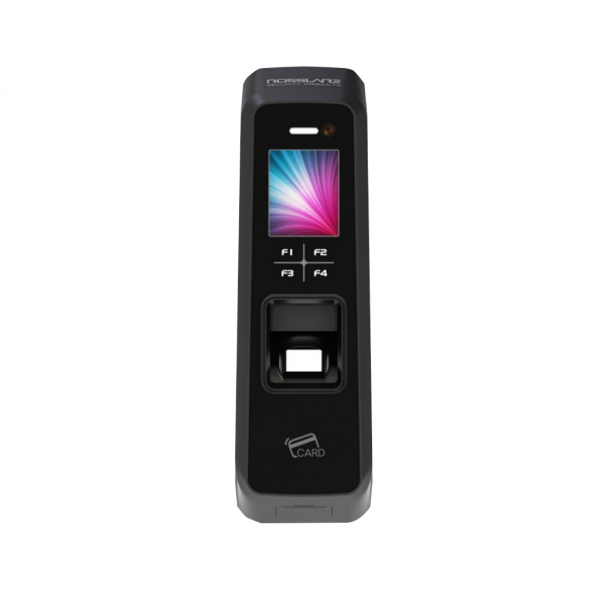

ROSSLARE AY-B9250BT
Professional Fingerprint Biometrics Reader
MAIN FEATURES
Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing.
Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory, Built-in color LCD, camera for transaction capture, 4 touch buttons
Available in a large variety of languages
High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
Built-in TCP/IP, RS-485, and Wiegand 26- or 34-bit output connectivity
Non-volatile event log of up to 100,000 entries
IP65 rated for indoor and outdoor use
Support for Rosslare BLE-IDTM smartphone credentials (Both iOS and Android)
Built-in tamper and buzzer, output relay for controlling a local device
Modern design that blends into almost any architectural challenge
PROFESSIONAL GRADE FEATURES
- AxTraxNG: Easy to install and operate using Rosslare
AxTraxNG™ Server for Windows for managing user data and template distribution (many languages) - RosslareBio 9000: Easy-to-install and operate server for Windows OS that enables managing user data and template distribution. Up to 16 remote client enrollment stations for enterprise applications
SPECIFICATIONS
| POWER SUPPLY REQUIREMENTS | |
| Input Voltage | Regulated DC12V~24V ± 5% Adaptor |
| Input Current | DC12V Input : MAX 400mA |
| FINGERPRINT CREDENTIALS IMAGING | |
| Technology | Optical |
| Image Resolution | 500 DPI |
| Scan Area | 15 x 18 mm |
| Liveness Detection | Yes – Detects and rejects fake fingerprints (silicon, rubber, paper, etc.) |
| Capacity | 20,000 Templates (up to 10,000 users) Time: 1:N < 1 sec (4,000 templates) |
| RFID CREDENTIALS | |
| MIFARE Reader | Built-in RFID card reader for MIFARE (13.56 MHz) |
| Bluetooth Credentials | Supports Bluetooth 4.0 Rosslare BLE-ID™ credential for iOS and Android |
| Bluetooth Admin | Supports Bluetooth 4.0 BLE-Admin™ configuration apps for iOS and Android |
| ENVIRONMENTAL RANGE | |
| Ingress Protection | IP65 |
| Temperature Range | -20°C to 60°C |
| Humidity | Up to 90% RH |
| COMMUNICATION & INDICATORS | |
| LCD / Camera / Keys | Full color LCD 128 x 160 px , camera for 10,000 Image logs, and 4 touch keys |
| CPU /Memory | ATMEL 400 MHz / 64MB DRAM, 256MB flash |
| Communication | Wiegand (26-/34-Bit), RS-485, TCP/IP (10/100 Mbps), Bluetooth 4.0 (BLE) |
| LED-Indicator / Buzzer | 2 x RGB LED and one internal buzzer for audible indication |
| INPUTS & OUTPUTS | |
| Relay Output | 1 x Form C Relay (N.O. / N.C.) rated 1A @ 30V for Lock Strike. |
| Inputs | 4 x inputs ( 3 door monitor, 1 exit ) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 58 x 191 x 62 mm |
| Weight | 700 g (1.54 lbs) |
