ROSSLARE AY-B9120BT 是ROSSLARE指紋門禁終端。香港防盜為安裝商及經銷商。手套或手濕不建議只用指紋。規格以下方原廠資料為準。

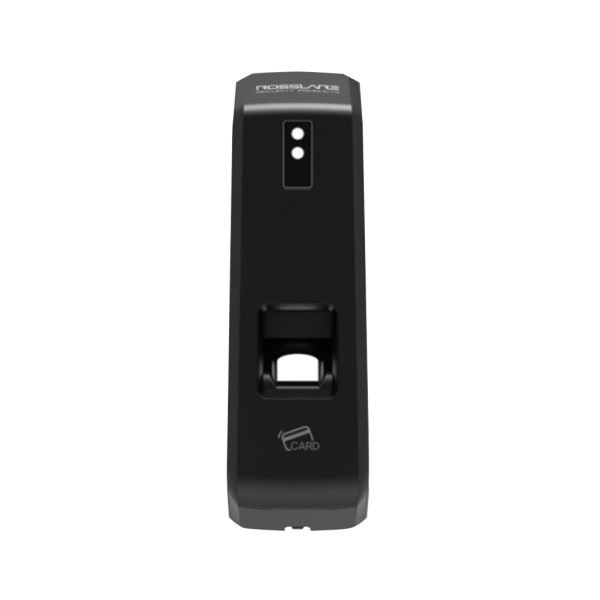

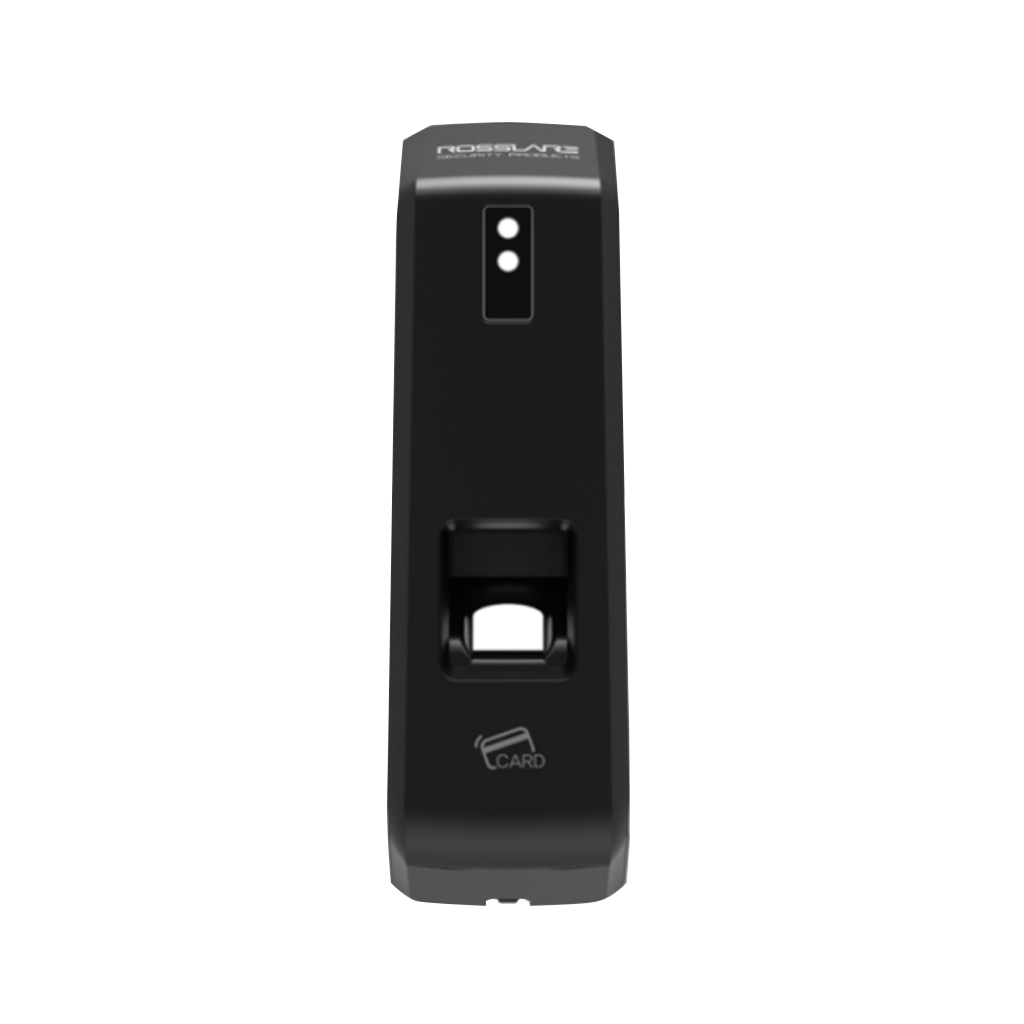

ROSSLARE AY-B9120BT
Professional Fingerprint Biometrics with EM-RFID and Rosslare BLE-ID™ Reader
MAIN FEATURES
- Advanced optical sensor with fingerprint liveness check with algorithms to prevent spoofing
- Capacity of 20,000 templates 1:N and support for 1:1 Matching, and encrypted memory
- Built-in output relay for controlling a local device
- High performance CPU and memory for high speed validation (searches 4000 1:N in less than 1 second)
- Built-in TCP/IP, RS-485, and Wiegand output connectivity
- Non-volatile event log of up to 100,000 entries
- IP65 rated for indoor and outdoor use
- Support for Rosslare BLE-IDTM smartphone credentials (both iOS and Android)
- Wide thermal operating range (-20°C to 60°C)
- Built-in tamper and buzzer
- Modern design that blends into almost any architectural challenge
SOFTWARE SOLUTION
- AxTraxNG: Easy to install and operate using Rosslare AxTraxNG™ Server for Windows for managing user data and template distribution
(many languages) - RosslareBio 9000: Easy-to-install and operate server for Windows OS that enables managing user data and template distribution. Up to 16 remote client enrollment stations for enterprise applications
SPECIFICATIONS
| POWER SUPPLY REQUIREMENTS | |
| Input Voltage | Regulated DC12V~24V ± 5% Adaptor |
| Input Current | DC12V Input : Max 300 mA ± 10% |
| FINGERPRINT CREDENTIALS IMAGING | |
| Technology | Optical |
| Image Resolution | 500 DPI |
| Scan Area | 15 x 18 mm |
| Liveness Detection | Yes – Detects and rejects fake fingerprints (silicon, rubber, paper, etc.) |
| Capacity | 20,000 templates (up to 10,000 users) Time: 1:N < 1 sec (4,000 templates) |
| RFID CREDENTIALS | |
| EM Reader | Built-in RFID card reader for EM (125 kHz) ASK |
| Bluetooth Credentials | Supports Bluetooth 4.0 Rosslare BLE-ID™ credential for iOS and Android |
| Bluetooth Admin | Supports Bluetooth 4.0 BLE-Admin™ configuration apps for iOS and Android |
| ENVIRONMENTAL RANGE | |
| Ingress Protection | IP65 |
| Temperature Range | -20°C to 60°C |
| Humidity | Up to 90% RH |
| COMMUNICATION & INDICATORS | |
| CPU | ATMEL 400 MHz |
| Memory | 64MB DRAM, 256MB flash |
| Communication | Wiegand (26-/34-Bit), RS-485, TCP/IP (10/100 Mbps), Bluetooth 4.0 (BLE) |
| LED-Indicator / Buzzer | 2 x RGB LED and one internal buzzer for audible indication |
| INPUTS & OUTPUTS | |
| Relay Output | 1 x Form C Relay (N.O. / N.C.) rated 1A @ 30V for Lock Strike |
| Inputs | 3 x inputs ( 2 door monitor, 1 exit ) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions | 58 x 188 x 49.8 mm |
| Weight | 700 g (1.54 lbs) |
