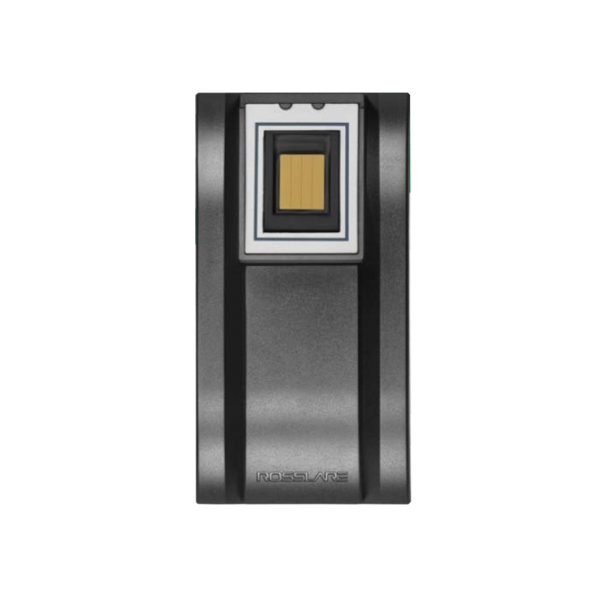

ROSSLARE AYC-B7661
MIFARE Classic® EV1 Full-Finger Capacitive
Biometric Reader/Controller
MAIN FEATURES
- Advanced, secure, multi-application functionality for intelligent installations
- Convertible – It can work as a Reader or as a Standalone Controller (No PC is required)
- Supports 1:1 / 1:n technologies
- Accepts up to107 users
- Optical tamper sensor for case and wall tamper detection
- Designed for indoor use (capacitive sensor protection required for outdoor use)
- Supports a Lockout feature for increased security
- Configurable multi-output format, supports Wiegand 26-bit format and many more
- Compatible with Rosslare’s CP-R26 Desktop Card Programmer
- Reads MIFARE Classic® EV1 ISO14443 Type A standard cards
- Fully compatible with MIFARE Classic® EV1 1K and 4K credentials
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | 5–16 VDC |
| Standby Input Current | 80 mA |
| Maximum Input Current | 100 mA |
| Tamper Output | Open collector, active low, max. sink current 32mA |
| SENSOR SPECIFICATIONS | |
| Array Size | 208 x 288 sensors |
| Capture Rate | 15 frames per second |
| Image Resolution | 508 DPI |
| OPERATIONAL SPECIFICATIONS | |
| Inputs | 2 Programmable LEDs / buzzer control Input, N.O, Dry Contact |
| Indicators | 2 three color LEDs |
| Output Format | Wiegand 26-Bit, Wiegand 32-Bit, Wiegand 34-Bit, Wiegand 40-Bit, and Clock & Data |
| Built-In Proximity Reader | Operating frequency: 13.56 MHz |
| Compatible Cards | MIFARE Classic® EV1 Compatible ISO-14443A |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature Range | -25ºC to 60ºC (-13ºF to 140º F) |
| Operating Humidity Range | 30% to 85% (non-condensing) |
| MECHANICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 102 x 54 x 32 mm (4.0 x 2.1 x 1.3 in.) |
| Weight | 156 g (5.5 oz) |
| SYSTEM COMPONENTS | The AYC-B7661 is compatible with Rosslare’s CP-R26 Desktop card programmer and its associated software, the AS-B01. The unit is compatible with Rosslare’s controllers (as well as various third-party systems. |
