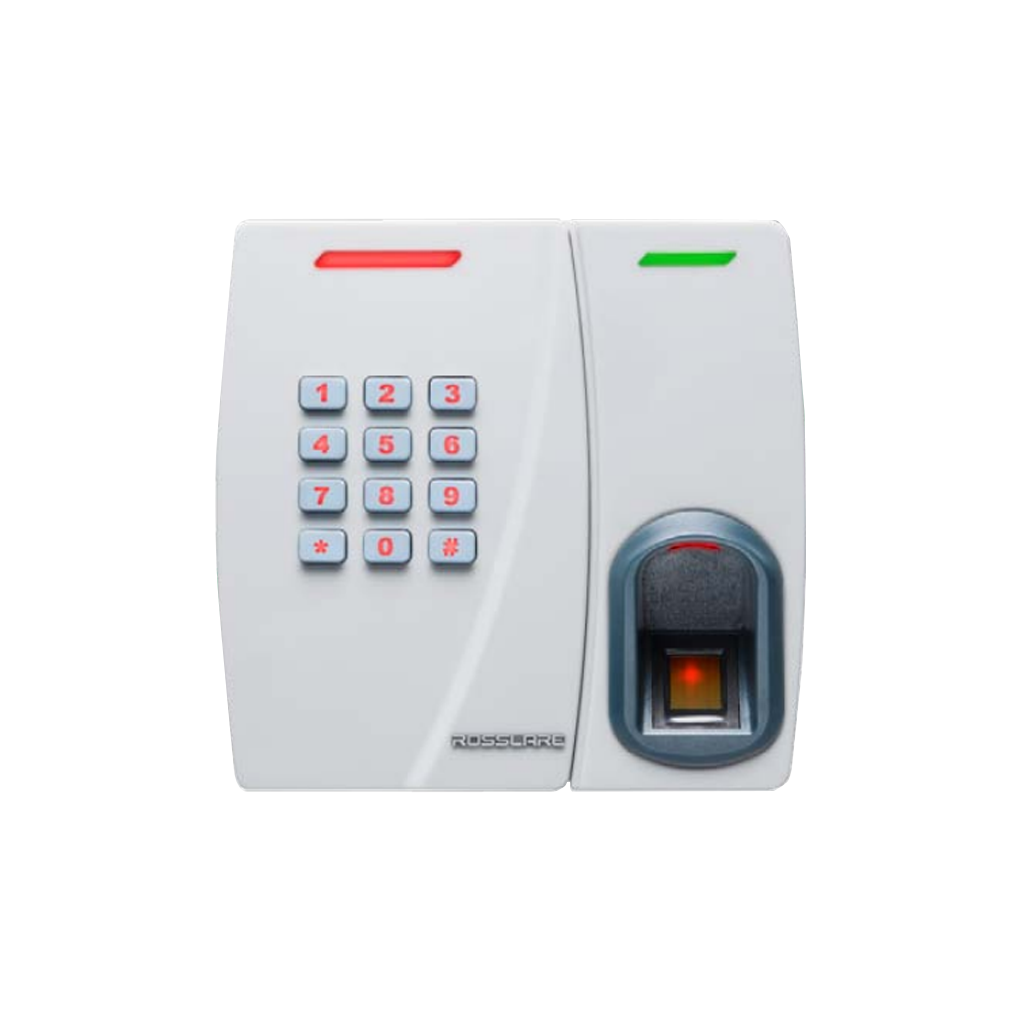

ROSSLARE AYC-W6500
Biometric Convertible PIN & Prox Reader/Controller
MAIN FEATURES
- Programmable PIN transmission modes including options for key stream, binary, and parity
- LED control input
- Supports Wiegand 26-Bit, or Clock & Data transmission formats
- Programmable PIN code length
- Capacity of 500 users
- Programmable Auxiliary input mode
- Programmable PIN code length, from 4 to 8 digits
- Programmable Lock Strike Release, Siren, and Alarm Delay timers
- Two User Levels:
- Normal User
- Secure User
PROFESSIONAL GRADE FEATURES
- PIN and/or Proximity Card & Dual Fingerprint Templates Per User
- Fully potted, sealed and protected
- Optical Wall Tamper
- RS-232 Serial interface for PC database backup and firmware upgrade
- Verification time less then 1 second
- Bi-colored LED indicator and an internal sounder for key-beeps and verification sound indications
- Programmable keypad backlight
- BioTraxTM PC software for complete management of the fingerprint database and fast configuration of the reader
- 60 cm (23.6 in.) 10-wire shielded interface cable
- Door bell feature (from “*” key), with Rosslare accessories
- Professional grade, CMOS Active Capacitive Pixel sensor
SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Operating Voltage Range | Reader mode: 10 to 16 VDC from a standard controller Controller mode: from PS-x5T series intelligent power supply family |
| Input Current | Standby: 140 mA at 12 VDC, Maximum: 330 mA at 16 VDC |
| Tamper | Optical back tamper sensor, O.C. active low, 32 mA max. sink current |
| Sensor ESD Rating | ±15KV (Fingerprint Sensor) |
| OPERATIONAL SPECIFICATIONS | |
| Operation Modes | Normal: PIN or Proximity Card + Fingerprint Verification Secure: PIN + Proximity Card + Fingerprint Verification |
| Fingerprint Verification | Verification Time: Less than 1 second Verification Method: 1:1 |
| Built-in Proximity Reader | Read Range: 75 mm (2.95 in.), ASK at 125 kHz |
| Keypad | 3×4 Backlit keys for local programming, 4-8 digit PIN code entry |
| Inputs | External LED Control and Mode Switching (Normal/Secure) |
| READER MODE | |
| External LED Control | 0 to 5 VDC, Active low, 50 mA max, Impedance: 20K ohm |
| Output Formats | Wiegand 26-Bit, Clock & Data, RS-232 (Host Only) |
| PIN Code Formats | 4 selectable transmission formats: Multiple keys, Wiegand 26 bits Single key, 6 bits, Rosslare format Single key, 6 and 8 bits Wiegand |
| CONTROLLER MODE | |
| Capacity | 500 Users. Dual template, PIN code and proximity card each |
| Relay Outputs | Lock Strike output (with PS-15/25T series) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Environment | Indoor use |
| Operating Temperature | -5ºC to +60ºC (23ºF to 140ºF) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (H x L x W) | 144 x 104 x 34 mm (5.7 x 4.1 x 1.4 in.) |
| Weight | 320 g (0.7lbs) |
| SYSTEM COMPONENTS | The AYC-W6500 reader is compatible with standard access controllers (limited to 500 users). With Rosslare’s intelligent power supplies it can function as a 500-user secure controller. |
