描述

Soyal AR-716-PU-M Backup Power System 是Soyal門禁卡機／獨立機。香港防盜為安裝商及經銷商，負責牆面開孔、走線、對接電鎖／出門掣。卡種及讀距以原廠規格為準。

相關方案：Soyal 門禁安裝、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

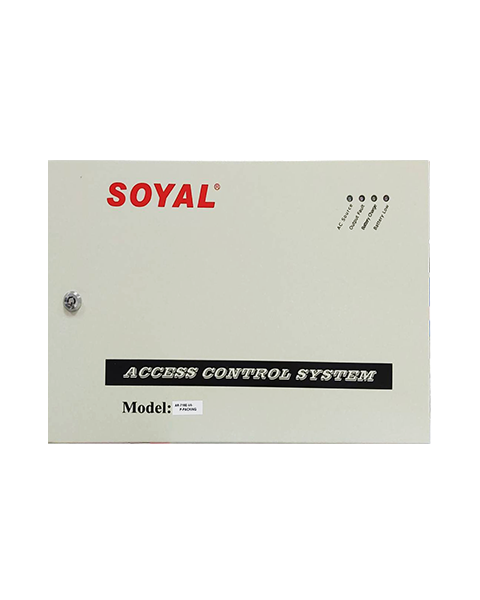

AR-716-PU-M

Backup Power System。

Input Voltage	13.8-15VDC
Output Voltage	When source from External PSU (Power Supply Unit: 12~15VDC), Output voltage is the same as input voltage. When source from Back-up Battery (9~12VDC), Output voltage is the same as battery voltage.
Output Current	3A max / 4A max
Relay output	2 From C, 10A/250VAC / 12A / 28VDC
Relay control	Low trigger (trigger device must have 25V/25mA puncture capability).
voltage of supply	AC90-264V/47~440HZ
Power output	35W(max)
Dimension (mm)	330(H)x250(W)x80(D)
Net Weight (kg)	approx. 3.35
