描述

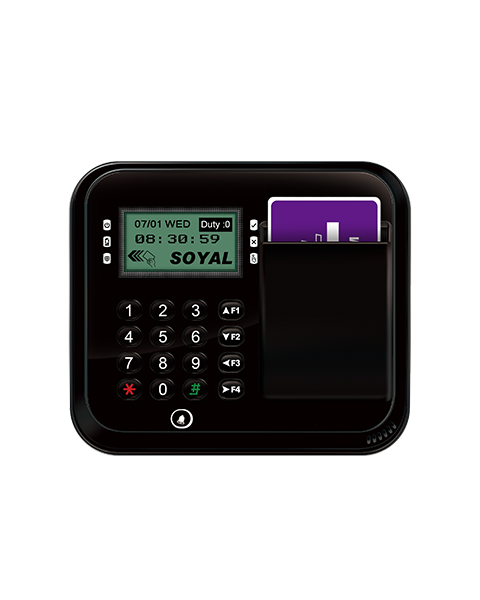

AR-837-W
LCD Card Energy Saver
AR-837-W 屬Soyal 碩陽門禁產品。傑成系統有限公司（香港防盜）為Soyal 碩陽產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合電鎖、出門掣及管理軟件一併施工。方案可參考門禁系統。規格以原廠資料為準。
功能重點
- Achieve the best e-wallet and stored-value solution with LCD screen. Customized firmware required!
- For 701ServerSQL software [LAN] model selection, please refer to Features ↓
規格
Host / Serial
| D (13.56Mhz) | |
|---|---|
| Frequency | ISO14443/ISO 7816-4 Mifare Ultralight, Classic, Plus / DESFire EV1, EV2 / NFC (card simulation) / ISO15693 / Felica / iCASH Card |
| UID Bits | 24~64 Bit (Adjustable) |
| RF Reading Range | Card Holder Type |
RFID Crypto / Communication interface
| D (13.56Mhz) | |||
|---|---|---|---|
| RFID Crypto | CC Certification: AES Crypto comply with EAL5+ | ||
| Host | RS-485 (9600 bps) TCP/IP (Optional By Order) POE (Optional By Order) SSC (Soyal Security Communication) |
||
| Serial | TTL UART (4800~115200 bps) X2 (half-duplex) | ||
| Wiegand Input | Wiegand 26~64 | ||
| Wiegand Output | Wiegand Data 0, Data 1 and Arming Output, Duress Output share the same terminal | ||
DI/DO (Doors Control:2)
| Main Controller | Wiegand Output Port | |
| DI | Egress X1 Door Status X1 |
Egress X1 Door Status X1 |
| Door Lock Output | Door Lock Relay X1 | Open Collector X1 |
| Alarm Output | Relay X1 | |
| Wiegand Port | — | Wiegand Data 0 Intput X1 Wiegand Data 1 Intput X1 Red LED Output X1 Green LED Output X1 Beeper Output X1 |
| Open Collect Output |
Arming Output X1 |
|
| Tamper | Limit switch (1 Form C/ 1000mA / 30VDC) | |
User Capacity / Floors Number / Event Log
| User Capacity / Floors Number | 16,000 Users/64 Floors (Default value)；32,000 Users/32 Floors；65,000 Users/16 Floors | ||
| Event Log | 32,000 | ||
Hardware Specifications
| Power Voltage | 12-24VDC | ||||
| Flash memory | Capacity 32Mb (The user data and event logs can be stored for more than 10 years after power off) |
||||
| RTC | RTC clock can be maintained for 14 days after power off, and the time error per week is within 1 minute (vary depending on the installation environment) | ||||
| CPU | ARM Cortex M3 (32 bits) | ||||
| Power Consumption | <5W | ||||
| Indicator | LED | 6 LED (Green/ Red) | |||
| Buzzer | 1 | ||||
| TAMPER | Limit switch (1 Form C/ 1000mA / 30VDC) | ||||
| LCD Panel | 128*64 (4 line messages, 16 Characters each line) | ||||
| Housing Material | ABS (Fire-proof level: 94V0) | ||||
| Color | Edge: Black / Silver | ||||
| Keypad | lluminated Rubber | ||||
| Dimension (mm) | 128(H)X147(W)X68(D) | ||||
| Net Weight(g) | approx. 395 | ||||
| Ingress Protection | No | ||||
| Environment | Operating Temperature | -20℃ ~ +70℃ | |||
| Storage Temperature | -40℃ to +75℃ | ||||
| Operating Humidity | 0%~90% (non-condensing) | ||||
| Storage Humidity | 0%~95% (non-condensing) | ||||
