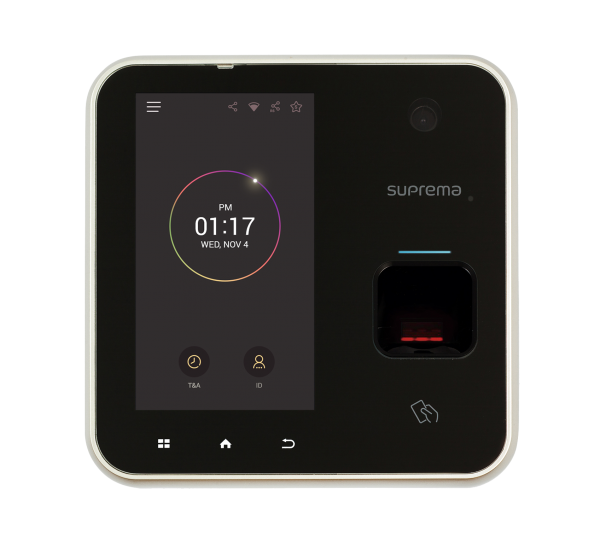

Suprema BioStation A2 IP Fingerprint Terminal

(Model: BSA2-OEPW, BSA2-OHPW, BSA2-OMPW)

Specifications

Credential

• Biometric Fingerprint
• RF Option
  • BSA2-OEPW: 125kHz EM
  • BSA2-OHPW: 125kHz HID Prox
  • BSA2-OMPW: 13.56MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa
• RF read range²⁾ : EM/HID Prox/MIFARE/DESFire: 50 mm, FeliCa: 30 mm
• Mobile: NFC (BSA2-OIPW, BSA2-OMPW)

General

• CPU: 1.0 GHz Quad Core
• Memory: 8 GB Flash + 1 GB RAM
• Crypto chip: Supported
• LCD type: 5” color TFT touch
• LCD resolution: 480 x 854
• LED: Multiple colors
• Sound: 24 bit/Voice DSP (echo cancel)
• Operating temperature: -20 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 90 %, non-condensing
• Camera type: CMOS 2M pixels
• Camera resolution: 1600 x 1200
• Camera angle: Diagonal 122°, Horizontal 64.7°, Vertical 103.3°
• Dimension (W x H x D): 155 x 155 x 40 (mm)
• Weight
  • Device: 440 g
  • Bracket (Including washer and bolt): 89 g
• Certificates: CE, UKCA, KC, FCC, BIS, RoHS, REACH, WEEE

Fingerprint

• Image dimension: 272 x 320 pixels
• Image bit depth: 8 bits, 256 gray scale
• Resolution: 500 dpi
• Template: SUPREMA / ISO19794-2 / ANSI-378
• Extractor / Matcher: MINEX certified and compliant
• Live Fingerprint Detection: Supported

Capacity

• Max. User: 500,000³⁾
• Max. Credential (1:N): Fingerprint: 100,000
• Max. Credential (1:1)
  • Fingerprint: 500,000
  • Card: 500,000
  • PIN: 500,000
• Max. Text Log: 5,000,000
• Max. Image Log: 50,000

Interface

• Wi-Fi: Supported
• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• RS-485: 1ch Host or Slave (Selectable)
• Wiegand: 1ch Input, 1ch Output
• TTL input: 1ch Input
• Relay: 2 Relay
• USB: USB 2.0 (Host)
• SD Card: microSD card (Supports up to 32 GB)
  * The functions of the SD card are available by customization only.
• PoE: Supported (IEEE 802.3af compliant)
• Tamper: Supported

Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 1 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL: Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Wiegand output VOH: More than 4.8 V
• Wiegand output VOL: Less than 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load

1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation A2.
2) RF read range will vary depending on installation environment.
3) The number of users registered without having any credential data.
