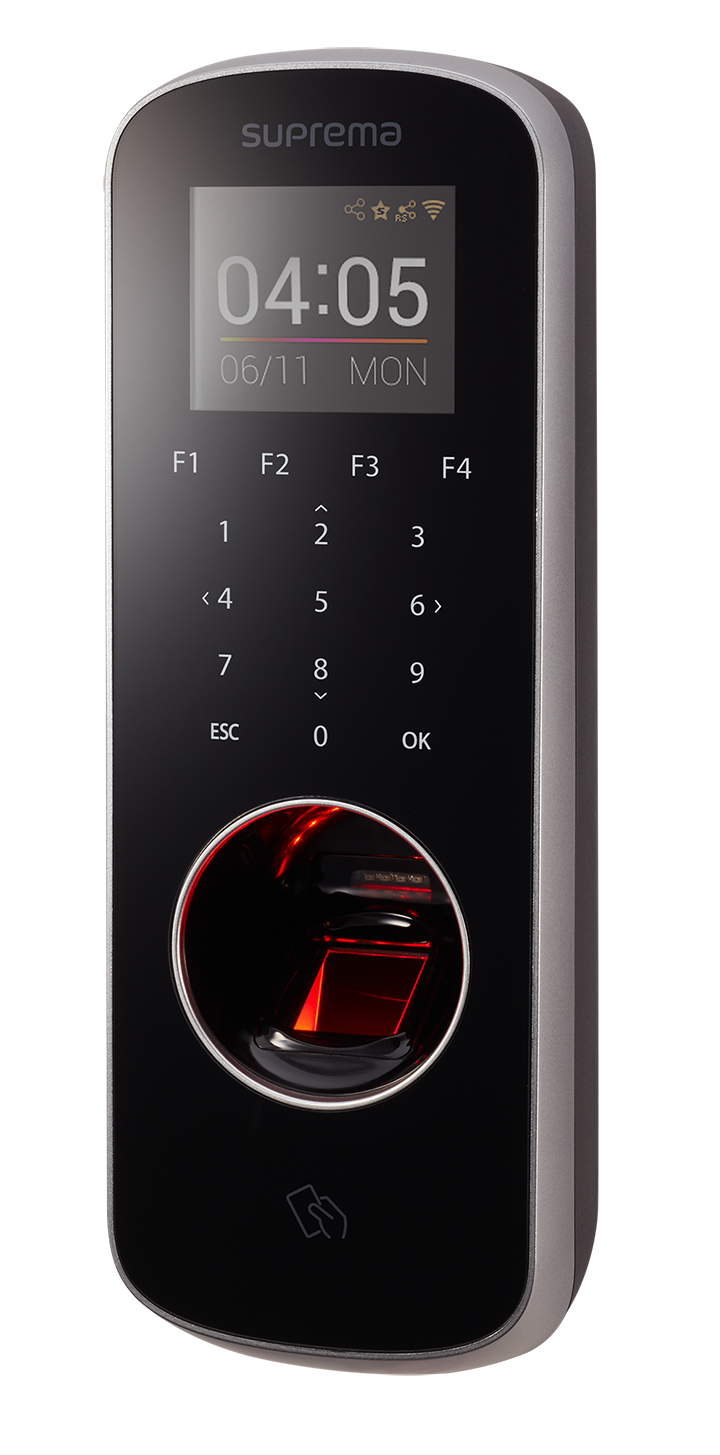

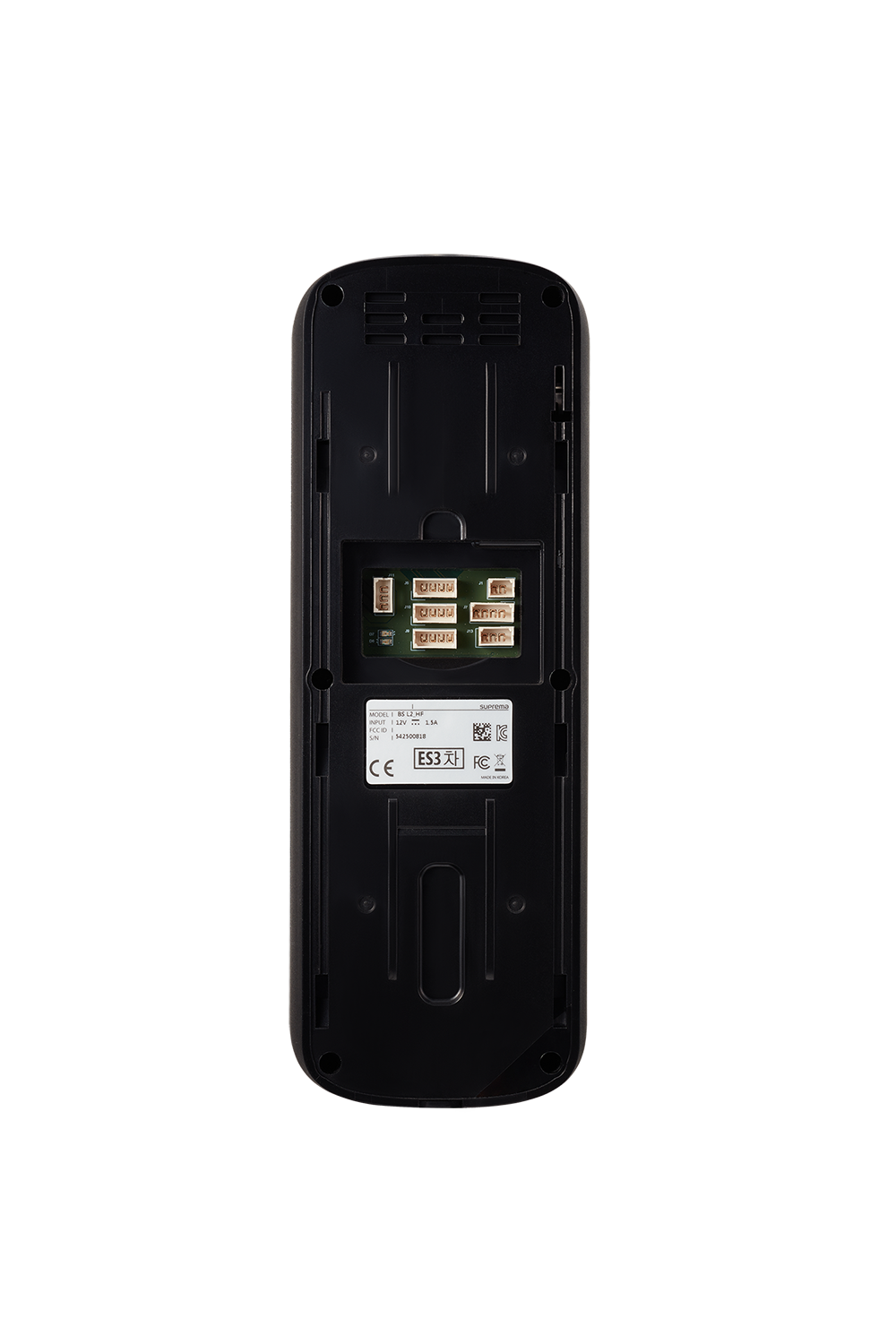

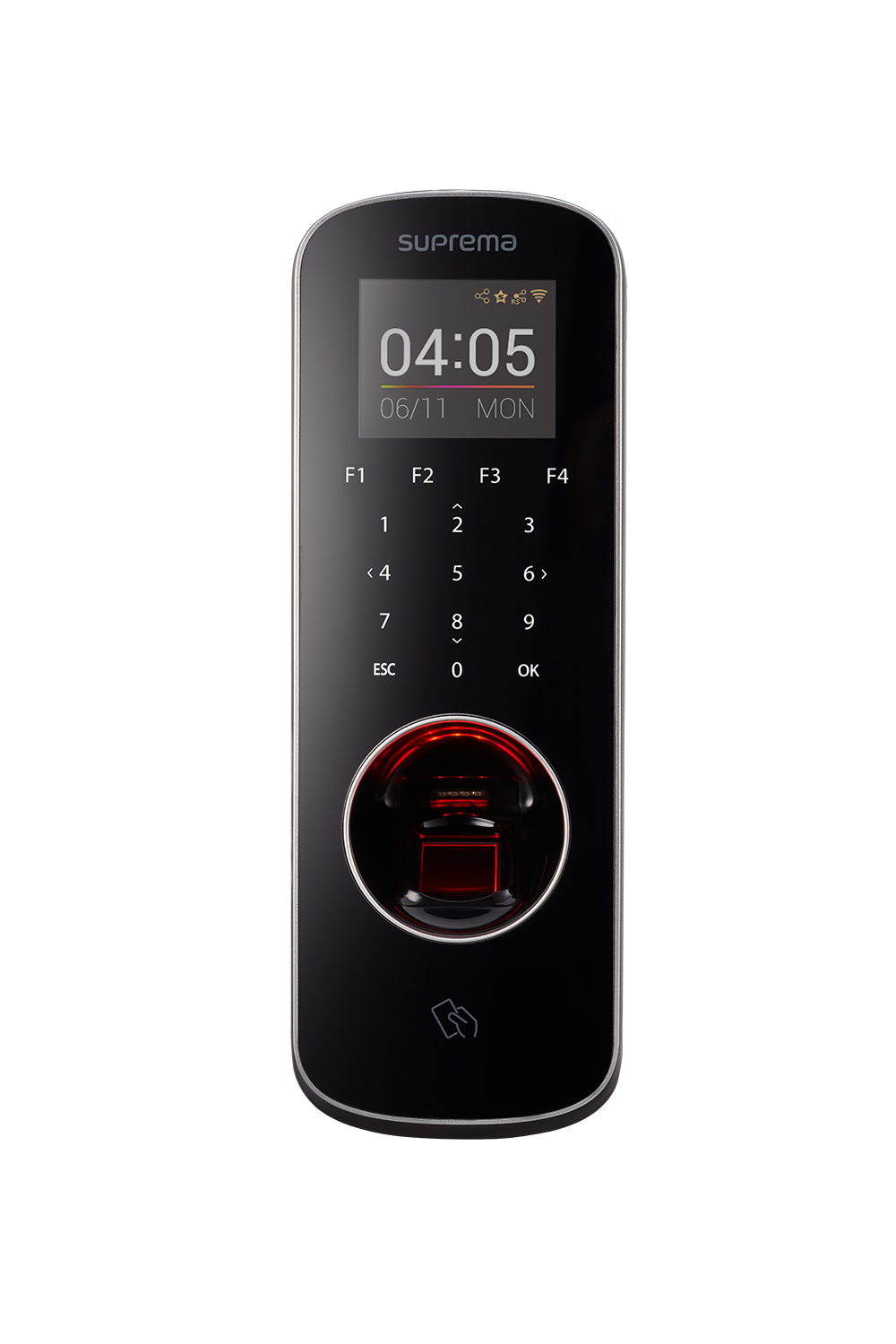

Suprema BioStation L2 Fingerprint IP Access Terminal

(Model:BSL2-OE, BSL2-OM)

Suprema BioStation L2 is an essential fingerprint terminal that provides comprehensive access control and time attendance features based on Suprema’s next generation biometric technology and security platform. Designed for all type of time-attendance applications, BioStation L2 provides exceptional value by combining World’s best Suprema fingerprint algorithm, high performance and enhanced security features.



Specifications



Credential

• Biometric: Fingerprint
• RF Option
  • BSL2-OE: 125 kHz EM
  • BSL2-OM: 13.56 MHz MIFARE, MIFARE Plus, DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa
• RF read range²⁾ :MIFARE/DESFire: 50 mm, FeliCa: 30 mm
  Mobile: NFC (BLS2-OM only)



General

• CPU: 1.2 GHz Quad Core
• Memory: 2 GB Flash + 256 MB RAM
• Crypto chip: Supported
• LCD type: 2” color TFT LCD
• LCD resolution: 220 x 176 pixels
• Sound: 16-bit Hi-Fi
• Operating temperature: -20 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 90 %, non-condensing
• Dimension (W x H x D) :70.9 x 200.9 x 44.3 (Bottom) / 34.2 (Top) (mm)
• Weight
  • Device: 280 g
  • Bracket (Including washer and bolt): 61 g
• Certificates: CE, UKCA, KC, FCC, BIS, RoHS, REACH, WEEE



Fingerprint

• Image dimension: 272 x 320 pixels
• Resolution: 500 dpi
• Template: SUPREMA / ISO19794-2, ANSI-378
• Extractor / Matcher: MINEX certified and compliant
• Live Fingerprint Detection: Supported



Capacity

• Max. User 500,000³⁾
• Max. Credential (1:N) : Fingerprint: 100,000
• Max. Credential (1:1)
  • Fingerprint: 500,000
  • Card: 500,000
  • PIN: 500,000
• Max. Text Log: 1,000,000



Interface

• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• RS-485: 1 ch Host or Slave (Selectable)
• Wiegand: 1 ch Input or Output (Selectable)
• TTL input: 2 ch Inputs
• Relay: 1 Relay
• Tamper: Supported



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.5 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL: Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Wiegand output VOH: More than 4.8 V
• Wiegand output VOL: Less than 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load



1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card functions are compatible with BioStation L2.
2) RF read range will vary depending on installation environment.
3) The number of users registered without having any credential data.
