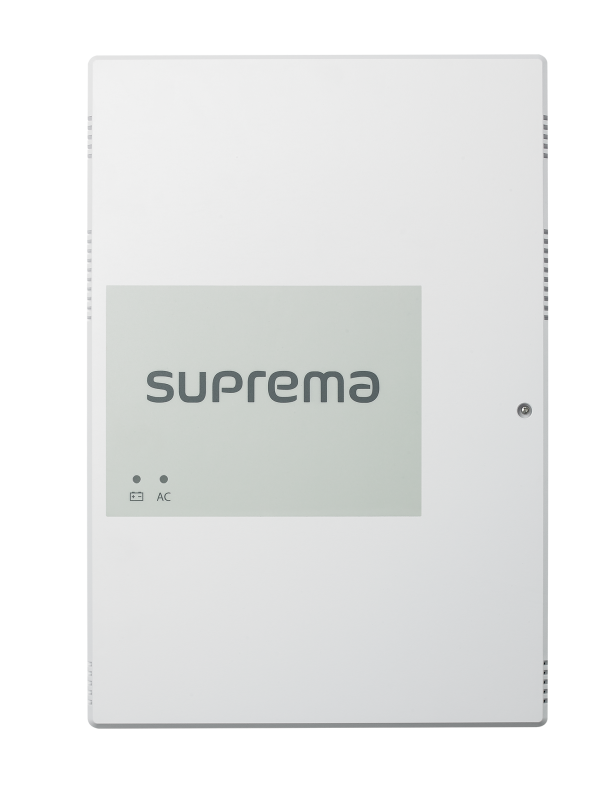

Suprema Enclosure ENCR-10 – Enclosure for Corestation

描述

Suprema Enclosure ENCR-10 – Enclosure for Corestation

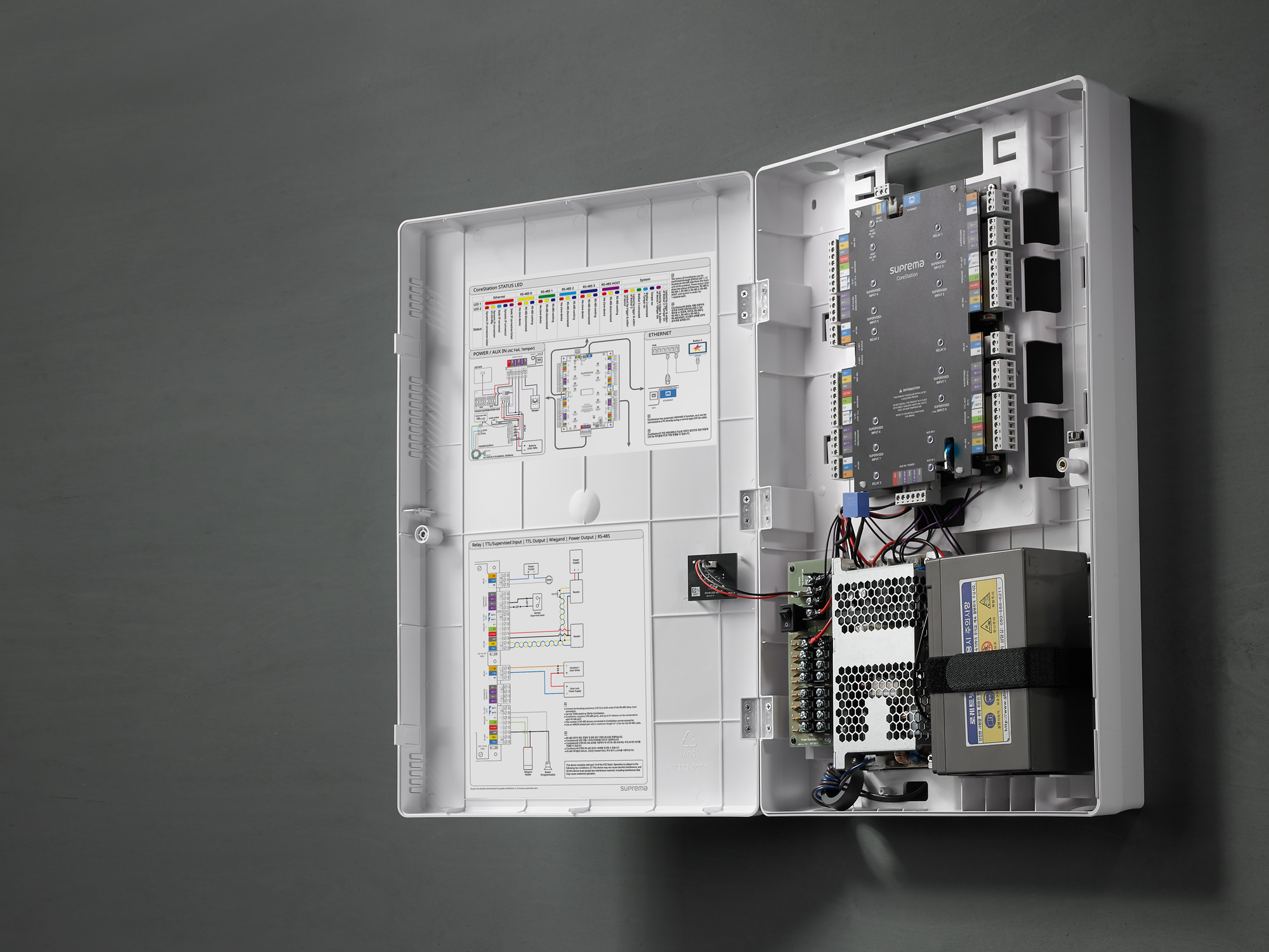

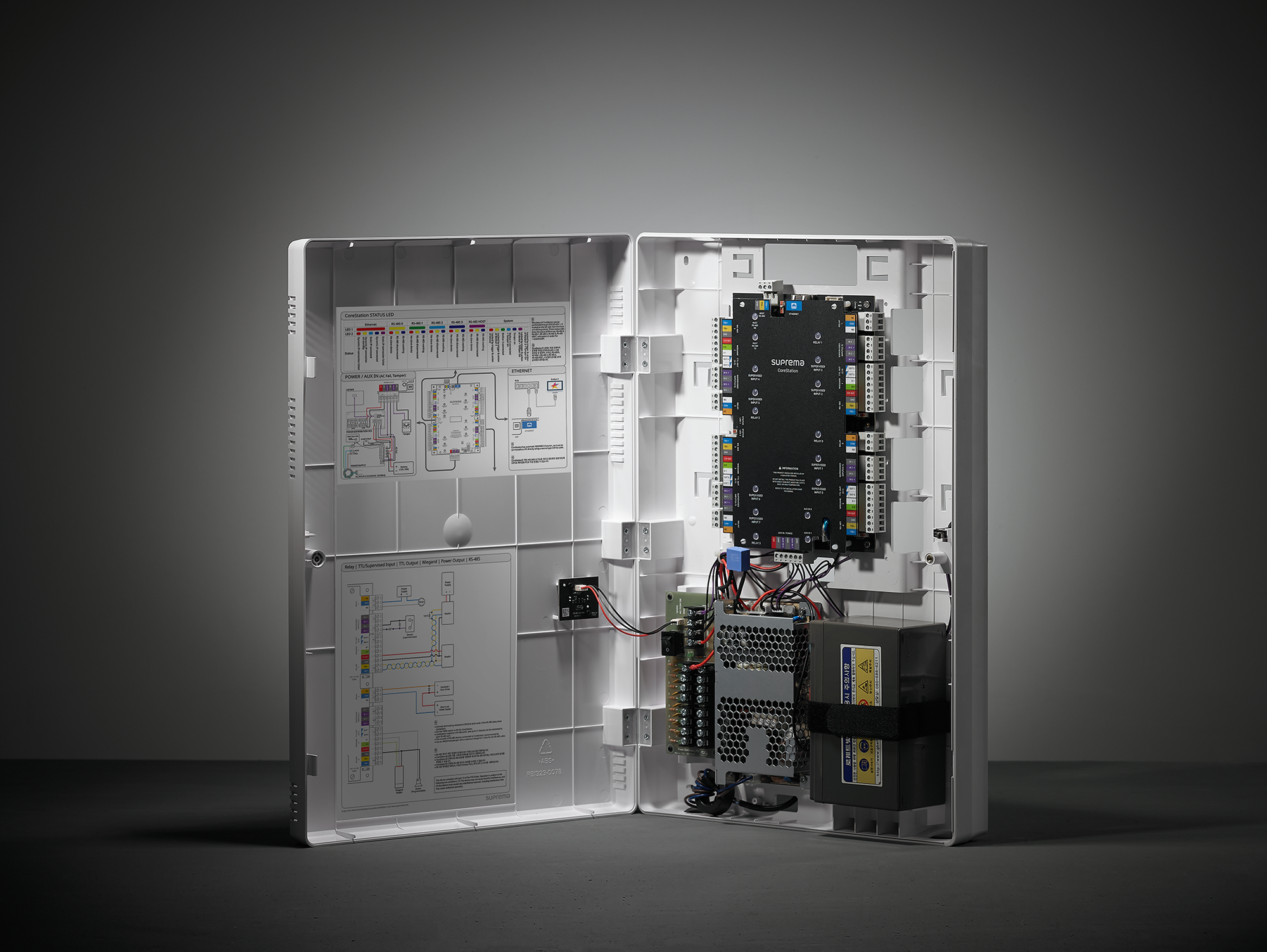

Enclosure is exclusively used with CoreStation. Enclosure’s high performance is a result of its backup battery, tamper switch, an 8-inch power distribution board, and power status LED. Its long battery life ensures that there are no interruptions in operation. It is a unique all-in-one package which has all the components of a controller.



Specifications



General

• Supported products: CoreStation (CS-40), Output Module (OM-120), Input Module (IM-120)
• LED
  • Battery status LED
  • AC status LED
• Material: ABS Plastic
• Operating temperature: 0 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 95 %, non-condensing
• Demension (W x H x D): 340 mm x 500 mm x 80 mm
• Weight: 2.6 kg (battery not included)



Power Supply

• Model Name: PSC-160A-C
• Vendor: MEANWELL
• Input
  • Voltage range: 110 ~ 240 VAC
  • Frequency range: 50/60 Hz
• Output
  • DC Voltage: 13.8 VDC
  • Rated Current: 11.6 A
  • Rated Power: 160 W



Backup Battery*

• Model Name: ES7-12
• Vendor: ROCKET
• Voltage: 12 VDC
• Capacity: 7 Ah
• Demension (W x H x TH): 65 mm x 151 mm x 97.5 mm
• Weight: 2.5 kg

* Product specifications are subject to change without notice to improve.
* The battery is sold separately.
* Use a backup battery with 12 VDC and 7 Ah or higher. This product was tested with ‘ES7-12’ battery of ‘ROCKET’. It is recommended to use a battery corresponding to ‘ES7-12’.
