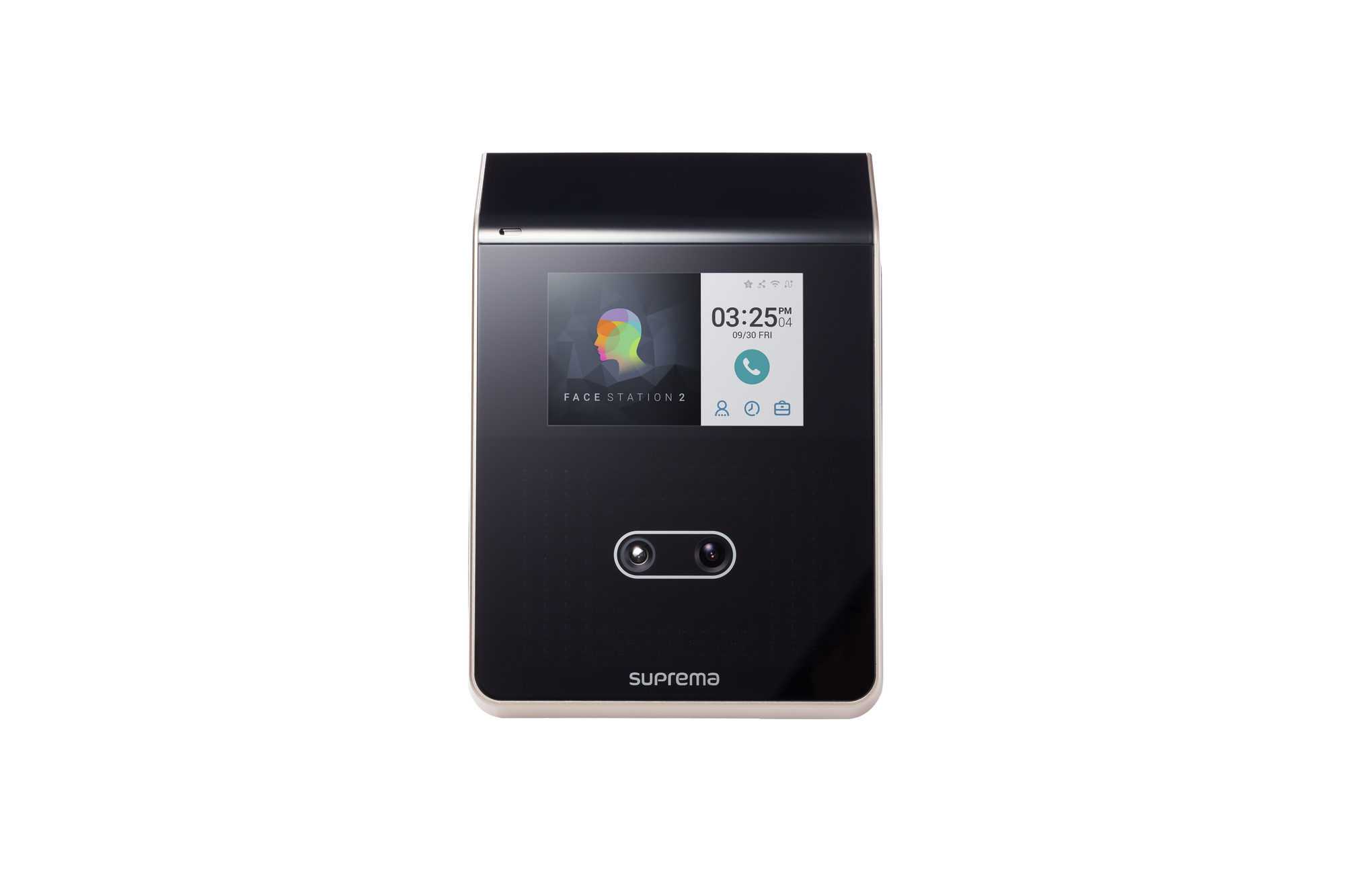

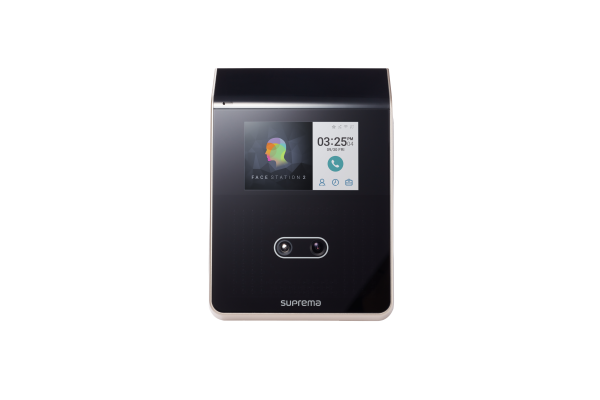

Suprema FaceStation 2 Smart Face Recognition Terminal

(Model: FS2-AWB, FS2-D)

Suprema FaceStation 2 is an advanced facial authentication terminal, providing enhanced features. Powered by Suprema’s innovation in facial biometrics, FaceStation 2 offers unrivaled matching speed, accuracy, and level of security. With Suprema’s patented optic engineering, FaceStation 2 achieves up to 25,000 lx of operating illuminance which in turn, brings all-round confidence regardless of lighting conditions. Packed in an ergonomically-designed structure, FaceStation 2 provides exceptional performance and usability for diverse access control and time attendance sites, large or small.

Specifications

Credential

• Biometric: Face
• RF Option
  • FS2-D: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus,
  DESFire, DESFireEV1/EV2/EV3¹⁾, FeliCa, NFC
  • FS2-AWB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus,
  DESFire, DESFire EV1/EV2/EV3¹⁾, FeliCa, iCLASS SE/SR/Seos, NFC, BLE
• RF read range²⁾: MIFARE/DESFire/iCLASS/BLE: 50 mm, EM/HID Prox/FeliCa: 30 mm
• Live Face Detection Supported

General

• CPU: 1.4 GHz Quad Core
• Memory: 8 GB Flash + 1 GB RAM
• Crypto chip: Supported
• LCD type: 4” color TFT touch
• LCD resolution: 800 x 480 pixels
• Sound: 24 bit/Voice DSP (echo cancel)
• Operating temperature: -20 °C ~ 50 °C
• Storage temperature: -40 °C ~ 70 °C
• Operating humidity: 0 % ~ 80 %, non-condensing
• Storage humidity: 0 % ~ 90 %, non-condensing
• Camera: CMOS
• Camera resolution: 720 x 480
• Camera angle
  • Visual Lens: Diagonal 92.7°
  • IR Lens: Diagonal 58°
• Dimension (W x H x D) :140.9 x 197.5 x 86.2 (mm)
• Weight
  • Device: 628 g
  • Bracket (Including washer and bolt): 74 g
• Certificates: CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE

Capacity

• Max. User: 30,000³⁾
• Max. Credential (1:N)
  • Fingerprint: 10,000⁴⁾
  • Face: 4,000
• Max. Credential (1:1)
  • Fingerprint: 100,000⁴⁾
  • Face: 30,000
  • Card: 30,000
  • PIN: 30,000
• Max. Text Log: 5,000,000
• Max. Image Log: 50,000

Interface

• Wi-Fi: Supported (Built-in, IEEE802.11 b/g)
• Ethernet: Supported (10/100/1000 Mbps, auto MDI/MDI-X)
• RS-485: 1 ch Host or Slave (Selectable)
• Wiegand: 1ch Input, 1ch Output
• TTL input: 2 ch Inputs
• Relay: 1 Relay
• USB: USB 2.0 (Host)
• Tamper: Supported

Electrical

• Power
  • Voltage: 24 Vdc
  • Current: Max. 1.2 A
• Switch input VIH
  • Min.: 3 V
  • Max.: 5 V
• Switch input VIL Max.: 1 V
• Switch Pull-up resistance: 4.7 kΩ (The input pots are pulled up with 4.7 kΩ.)
• Wiegand output VOH: More than 4.8 V
• Wiegand output VOL: Less than 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ
• Relay
  • 2 A @ 30 VDC Resistive load
  • 1 A @ 30 VDC Inductive load

1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards.
CSN and smart cardfunctions are compatible with FaceStation 2.
2) RF read range will vary depending on installation environment.
3) The number of users registered without having any credential data.
4) If a device with a fingerprint sensor is connected as a slave, the slave device can be used for fingerprint authentication.
