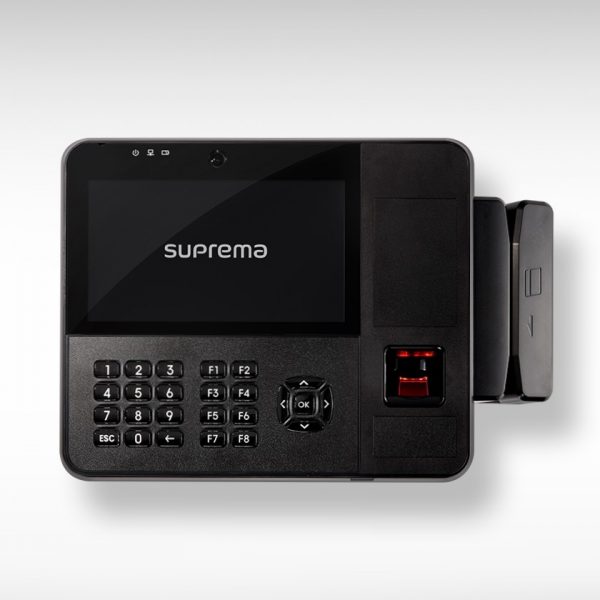

Suprema NOVUS – Time and Attendance/Workforce Management Multimedia Workstation

Suprema NOVUS is a versatile, powerful, and fully modular enterprise-class product, designed for use in any Time and Attendance or Workforce Management application. Using Android OS, NOVUS provides a well-defined and supported environment that allows partners and integrators to deploy new or existing Android applications – complementing, supporting, and extending their current mobile platform functionality.

specifications

General

• CPU: 1.0 GHz Quad-core
• Memory: 16 GB eMMC
• LCD type: 7.0” Touchscreen
• LCD resolution: 1024 x 600 pixels
• LED: Multiple colors
• Sound: Max 1W Loudspeaker
• Operating temperature: 0°C ~ 50°C
• Storage temperature: -20°C ~ 70°C
• Operating humidity: 0% ~ 80%, non-condensing
• Storage humidity: 0% ~ 90%, non-condensing
• Camera type: CMOS 1M pixels
• Camera resolution: 1280 x 720 pixels
• Camera angle: Diagonal 122°, Horizontal 64.7°, Vertical 103.3°
• Dimension (W x H x D): 210 mm x 250 mm x 96 mm
• Weight
  • NVS07-D1: 1,189 g
  • NVS07-D1K: 1,235 g
• Certificates: CE, FCC, RoHS, REACH, WEEE

Capacity

• Max. User (1:1) 50,000
• Max. User (1:N) 20,000
• Max. Template (1:1) 100,000
  * Two templates per finger
• Max. Template (1:N) 40,000
  * Two templates per finger

Interface

• Ethernet: Supported (10/100 Mbps, auto MDI/MDI-X)
• PoE+: Supported (IEEE 802.3at compliant)
• RS-232: Supported (RXD, TXD, CTS, RTS)
• Wiegand: 1ch Input
• Rela:y 2 Relays
• USB: USB 2.0 (Host)
• SD card: Supported

Electrical

• Power
  • Voltage: DC 12 V
  • Current: Max.2,140 mA (Full option)
• Wiegand input VIH
  • Max. 5V
  • Min. 3V
• Wiegand input VIL: Max. 1V
• Wiegand input Pull-up resistor: Internally pulled up with 4.7 kΩ
• Relay
  • Voltage: Max. 100 VDC / 250 VAC
  • Current: Max. 5 A (DC) / 6 A (AC)
• Fingerprint
  • Sensor: Optical sensor (OP6)
  • Template: SUPREMA / ISO 19794-2 / ANSI 378
• RFID
  • R1: 125kHz EM, & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, HID iCLASS SE/SR/Seos
  (UID Only), Legic Advant (UID Only)
  • R2: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, HID iCLASS
  SE/SR/Seos, Legic Advant (UID Only)
  • R3: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, Legic Advant/Prime (Planned)
• MSR: Selectable
• Cellular Modem: Sierra – GL7500
• GPS: Selectable
• Wi-Fi: 802.11 b/g/n/ac
• Battery
  • Voltage: 7.4 V (Max. 8.4 V)
  • Capacity: 3,400 mAh
