Suprema XPass D2 Outdoor Compact RFID Reader

描述

Suprema XPass D2 Outdoor Compact RFID Reader

Model:XPD2-MDB, XPD2-GDB, XPD2-GKDB

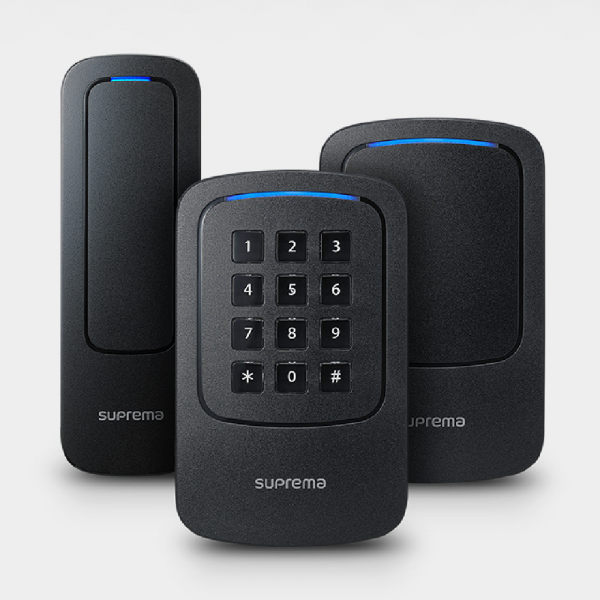

XPass D2 is an outdoor compact RFID reader based on Suprema’s state-of-the-art RFID technology and multi-hardware platform. With the multi-form factor technology with mullion-mount, gangbox-type and gangbox keypad-type designs, XPass D2 can be installed in various environments. XPass D2 also supports dual-frequency (125kHz / 13.56MHz) RFID technology and can read the mobile cards using NFC and BLE. Packed in a strong IP67/IK08 box, it is dust & waterproof as well as vandal-resistant, suitable for tough environments and outdoor installation.



specifications



Credential

• RF Option: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus,
  DESFire, DESFireEV1/EV2/EV3¹⁾, FeliCa
• RF read range²⁾  : MIFARE/DESFire/EM: 50 mm, FeliCa: 30 mm
• Mobile: NFC, BLE



General

• CPU: 80 MHz
• Memory: 512 KB Flash + 160 KB RAM
• Crypto chip: Supported
• LED: Multi-color
• Sound: Multi-tone Buzzer
• Operating temperature: -35 °C to 65 °C
• Storage temperature: -40 °C to 70 °C
• Operating humidity: 0 % to 95 %, non-condensing
• Storage humidity: 0 % to 95 %, non-condensing
• Dimension (W x H x D)

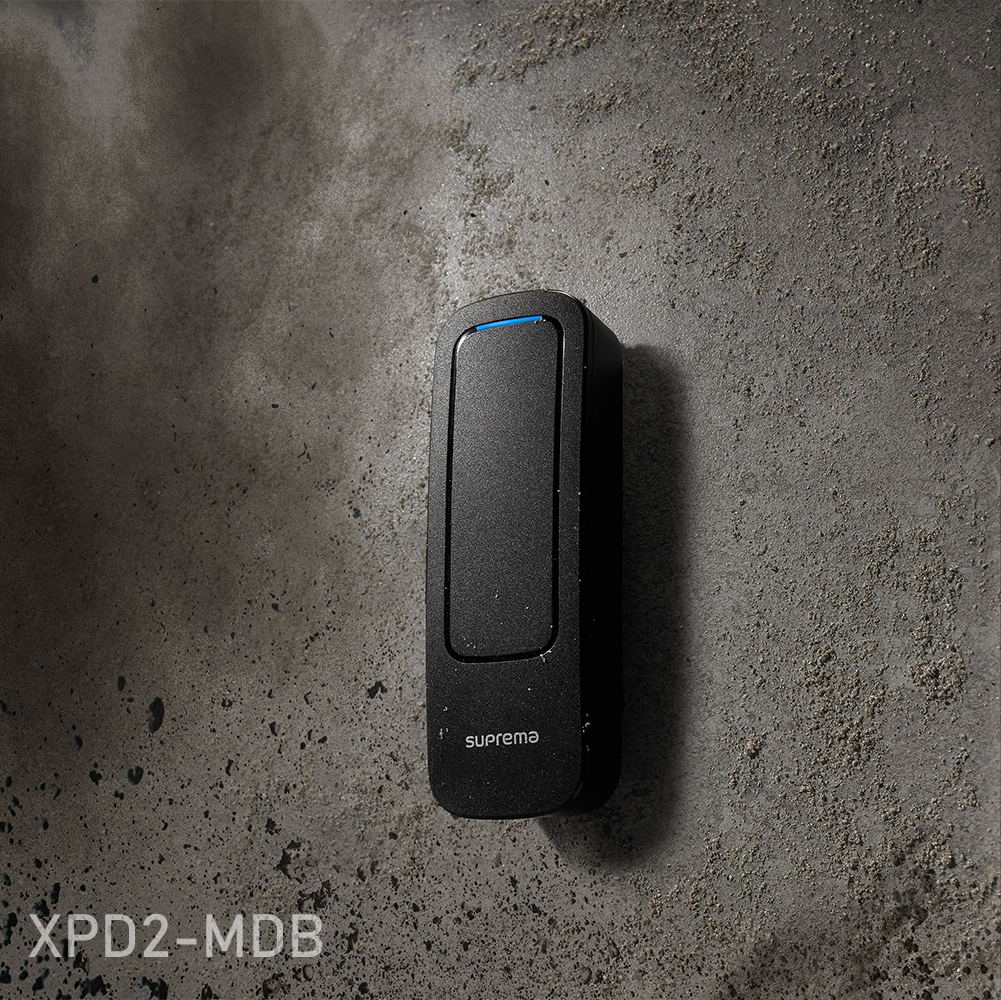

  • XPD2-MDB: 48 x 144.7 x 27 (mm)

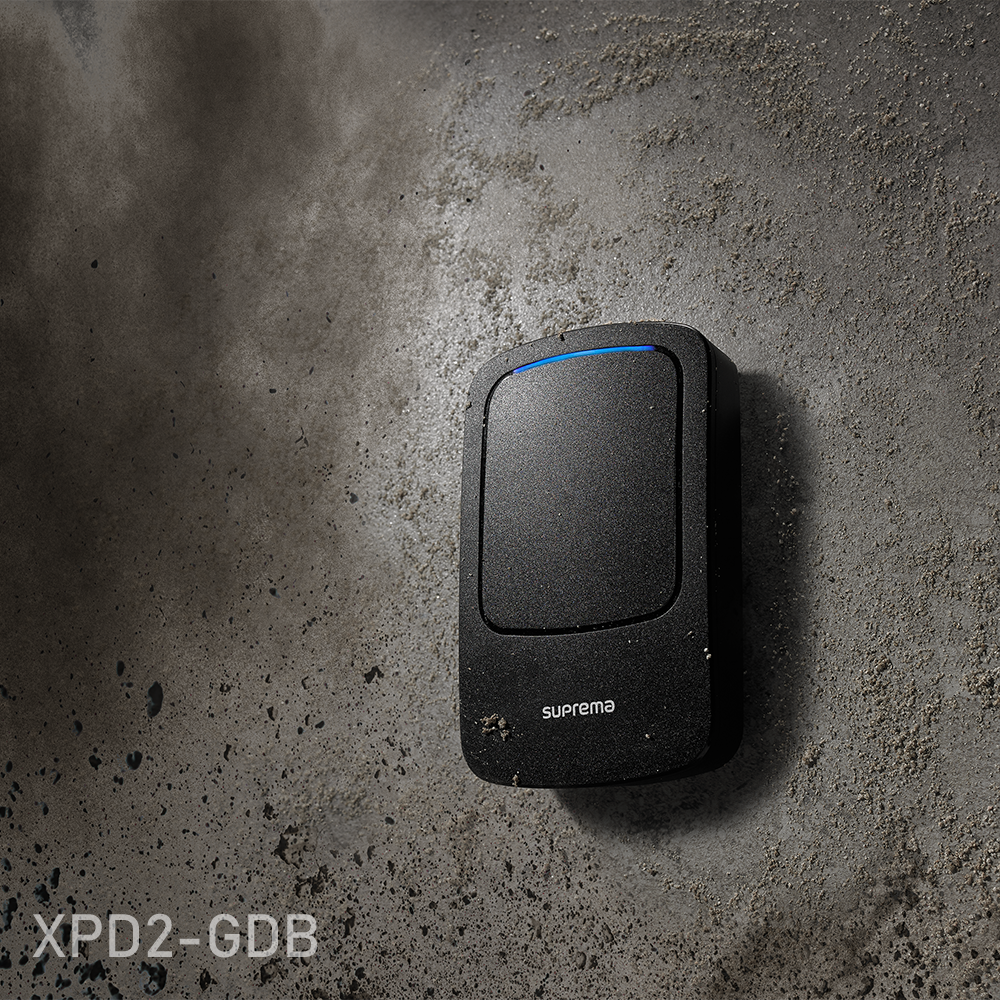

  • XPD2-GDB: 80 x 130 x 25 (mm)

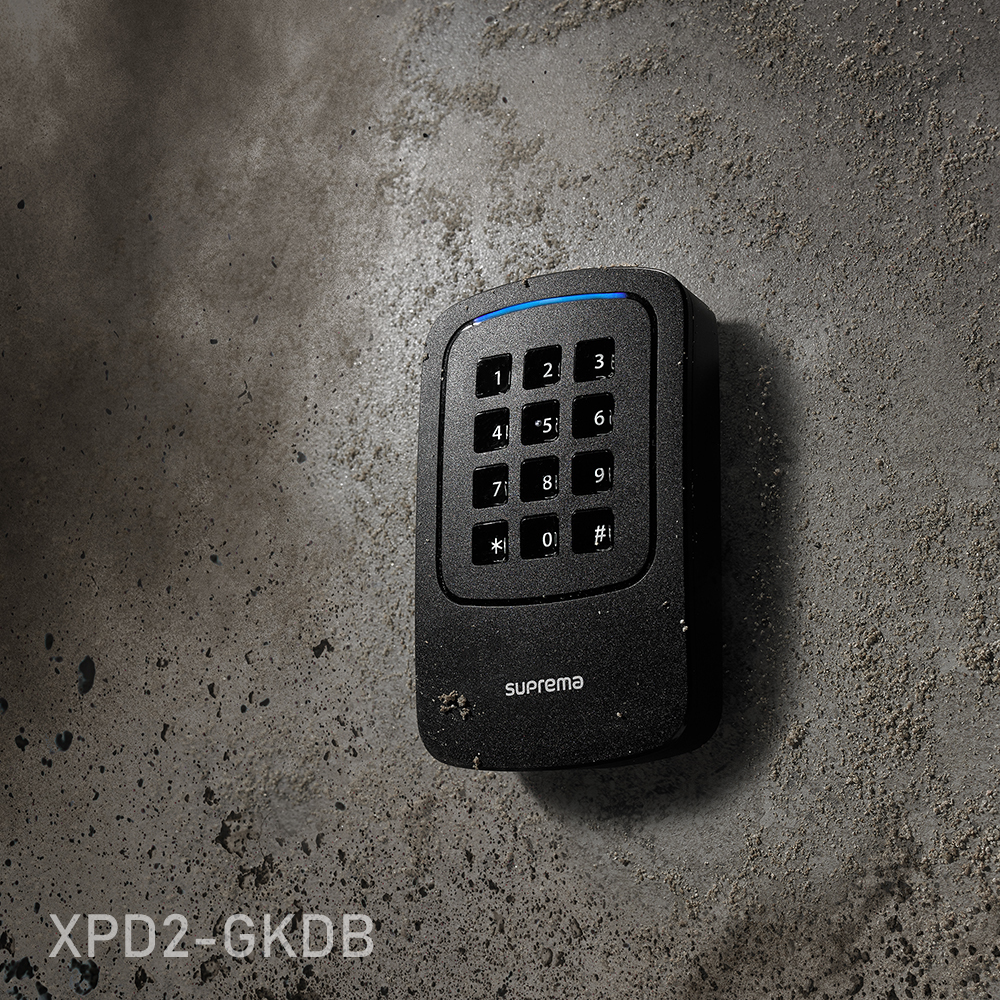

  • XPD2-GKDB: 80 x 130 x 25 (mm)
• Weight
  • Device
     – XPD2-MDB: 117 g
     – XPD2-GDB: 140 g
     – XPD2-GKDB: 145 g
  • Bracket
     – XPD2-MDB: 30 g (Including washer and bolt)
     – XPD2-GDB: 52 g (Including washer and bolt)
     – XPD2-GKDB: 52 g (Including washer and bolt)
• IP rating: IP65, IP67
• IK rating: IK08
• Certificates: CE, UKCA, KC, FCC, IC, RCM, BIS, SIG, RoHS, REACH, WEEE



Interface

• RS-485: 1ch
• Wiegand: 1ch
• LED: 2ch
• Beep: 1ch
• Tamper: Supported



Electrical

• Power
  • Voltage: 12 Vdc
  • Current: Max. 0.3 A
• LED, Beep input VIH
  • Min.: 3 V
  • Max.: 5 V
• LED, Beep input VIL Max.: 1 V
• LED, Beep Pull-up resistance: 4.7 kΩ (The input ports are pulled up with 4.7 kΩ.)
• Wiegand output VOH: Min.: 4.8 V
• Wiegand output VOL: Max.: 0.2 V
• Wiegand output Pull-up resistance: Internally pulled up with 1 kΩ



1) DESFire EV2/EV3 cards are supported by having backward compatibility of DESFire EV1 cards. CSN and smart card
functions are compatible with XPass D2.
2) RF read range will vary depending on installation environment.
