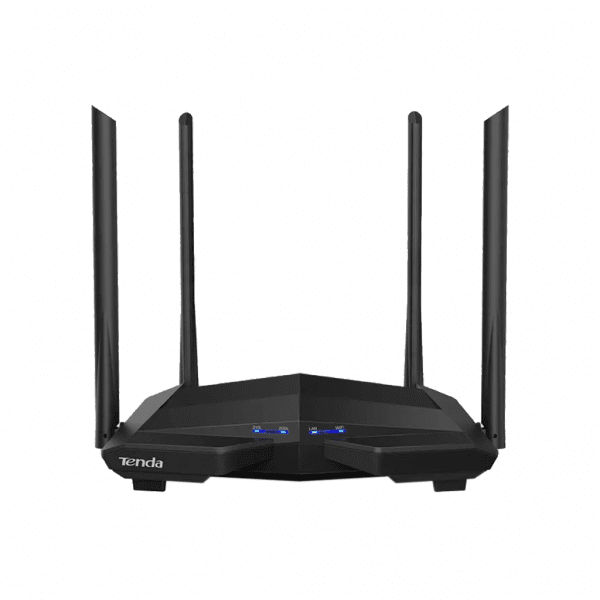

Tenda AC10 v3.0
AC1200 Dual Band Gigabit WiFi Router
Features
- All Gigabit Ports for Full Play of Your Even-increasing Bandwidth of Optical Fiber
- Strong Dual Band WiFi Signal for Multi-wall Penetration
- Innovation MU-MIMO Technology
- 4*6dBi External Antennas for Better WiFi Signal
- Configuration-free for quick setup
Specifications
| Hardware | |
| Standard & Protocol | IEEE802.3, IEEE802.3u |
| CPU | 1GHz |
| RAM | 32MB |
| Interface | 1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports |
| Antenna | 4*6dBi external antennas |
| Button | 1*WPS/Reset button |
| Power | Input：AC 100-240V~50/60Hz Output:DC 9V⎓1A |
| LED indicator | Sys*1,WAN*1, LAN*1,WiFi/WPS*1 |
| Dimensions | 8.66 * 5.57 * 1.93 in (220*141.5*49mm) |
| Wireless | |
| Wireless Standards | IEEE 802.11ac wave2/a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Data Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Frequency | CE: 2.4G: 2412-2472MHz(CH1-CH13) 5G: 5150-5250MHz(CH36-CH48) FCC: 2.4G: 2412-2462MHz(CH1-CH11) 5G: 5150-5250MHz(CH36-CH48) 5725-5850MHz(CH149-CH165) |
| Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| Wireless Security | WPA2-PSK Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption |
| Other Features | |
| Temperature | Operating Temperature : 0℃~40℃ Storage Temperature : -40C ~70℃ |
| Operating Humidity | Operating Humidity : 10 %~90% RH non-condensing Storage Humidity : 5 %~ 90%RH non-condensing |
