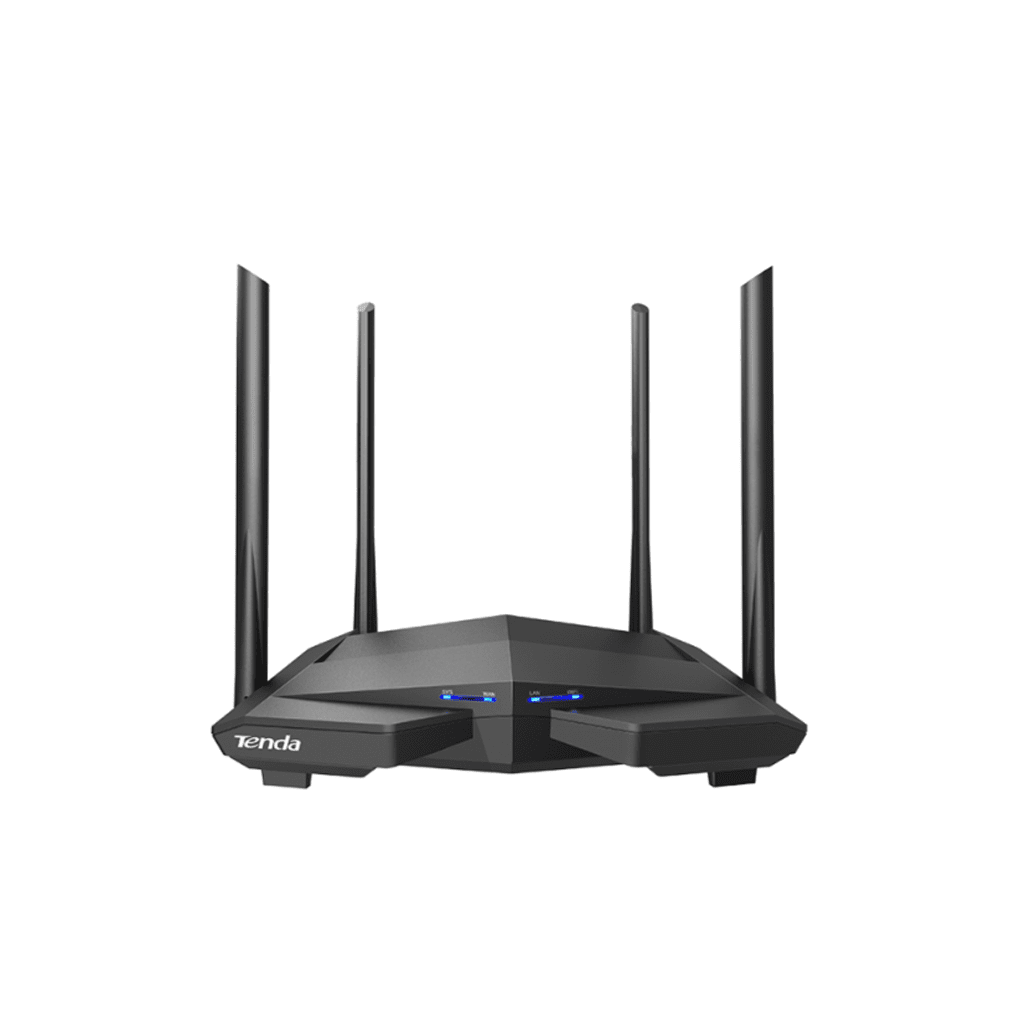

Tenda AC10 v5.0
AC1200 Dual Band Gigabit WiFi Router
Features
- Optimal Gigabit Wireless Speed
- Meticulous Design, Robust Coverage
- Smart Optimization with Just the Right Dual-Band Switching
- Effortlessly Manage Children’s Online Activities
- Striking Aesthetics
- More Functions More Experience
Specifications
| Hardware | |
| Standard & Protocol | IEEE802.3, IEEE802.3u |
| CPU | Dual-core 1GHz |
| RAM | 64MB |
| Interface | 1*10/100/1000Mbps WAN port 3*10/100/1000Mbps LAN ports |
| Antenna | 4*6dbi external antennas |
| Button | 1*WPS/Reset button |
| Power | Input：AC 100-240V~50/60Hz Output:DC 12V⎓1A |
| LED indicator | Sys*1,WAN*1, LAN*1,WiFi/WPS*1 |
| Dimensions | 8.66 * 5.57 * 1.93 in (220*141.5*49mm) |
| Wireless | |
| Wireless Standards | IEEE 802.11ac wave2/a/n 5GHz IEEE 802.11b/g/n 2.4GHz |
| Data Rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Frequency | CE: 2.4G: 2412-2472MHz(CH1-CH13) 5G: 5150-5250MHz(CH36-CH48) FCC: 2.4G: 2412-2462MHz(CH1-CH11) 5G: 5150-5250MHz(CH36-CH48) 5725-5850MHz(CH149-CH165) |
| Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
| Wireless Security | WPA2-PSK Wireless Security: Enable/Disable WPS(WiFi Protected Set-up) fast encryption |
| Other Features | |
| Temperature | Operating Temperature: 0℃ ~ 40℃ Storage Temperature: -40℃ ~ 70℃ |
| Operating Humidity | Operating Humidity:10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90%RH non-condensing |
