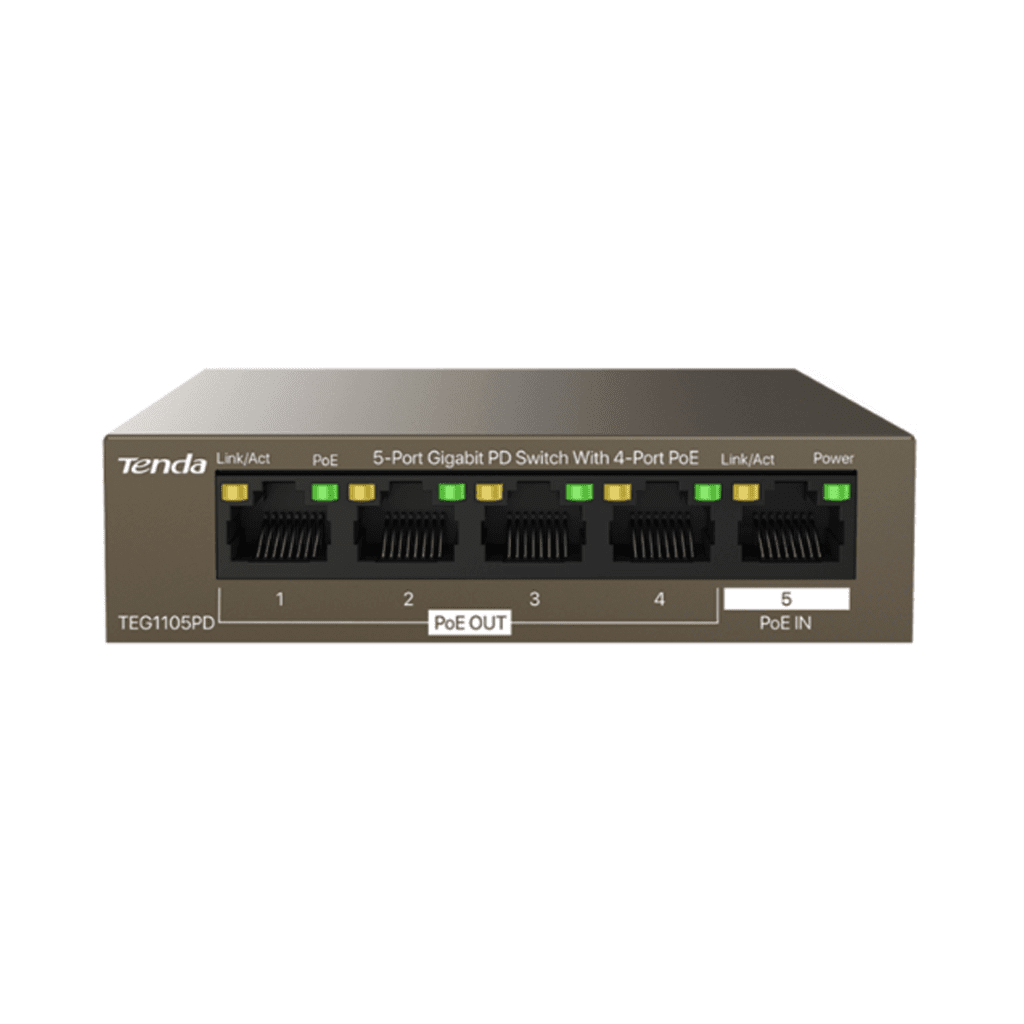

Tenda TEG1105PD
5-Port Gigabit PD Switch With 4-Port PoE
Features
- 5 Gigabit Ports, Integrated PSE & PD Design
- Gigabit speed without reduction within 200m, Stable transmission without dropping
- Cut costs,Practical & Stable,Your Better Choice
- 6KV lightning protection, Stable operation in thunderstorm environment
- Small & Delicate,Easy to be installed in the weak electric/waterproof box
Specifications
| Hardware | |
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| LED Indicator | 1* Power LED indicator 4* PoE LED indicators 5* Link/Act LED indicators |
| Interfaces | 4*10/100/1000 Base-T Ethernet Ports(Data/PoE UT) 1*10/100/1000 Base-T Ethernet Port(Data/PoE IN) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimensions | 100.0 mm x 100.0 mm x 26.0 mm |
| Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 10 Gbps |
| Packet forwarding rate | 7.44Mpps |
| Buffer | 1 Mb |
| MAC address table | 2K |
| Jumbo frame | 9K |
| PoE budget | Single port: AF: 15.4W |
| Input voltage | 50-57V DC, 0.6A |
| Mounting | Desktop mounting: support Wall mounting: non-support Rack mounting : non-support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
