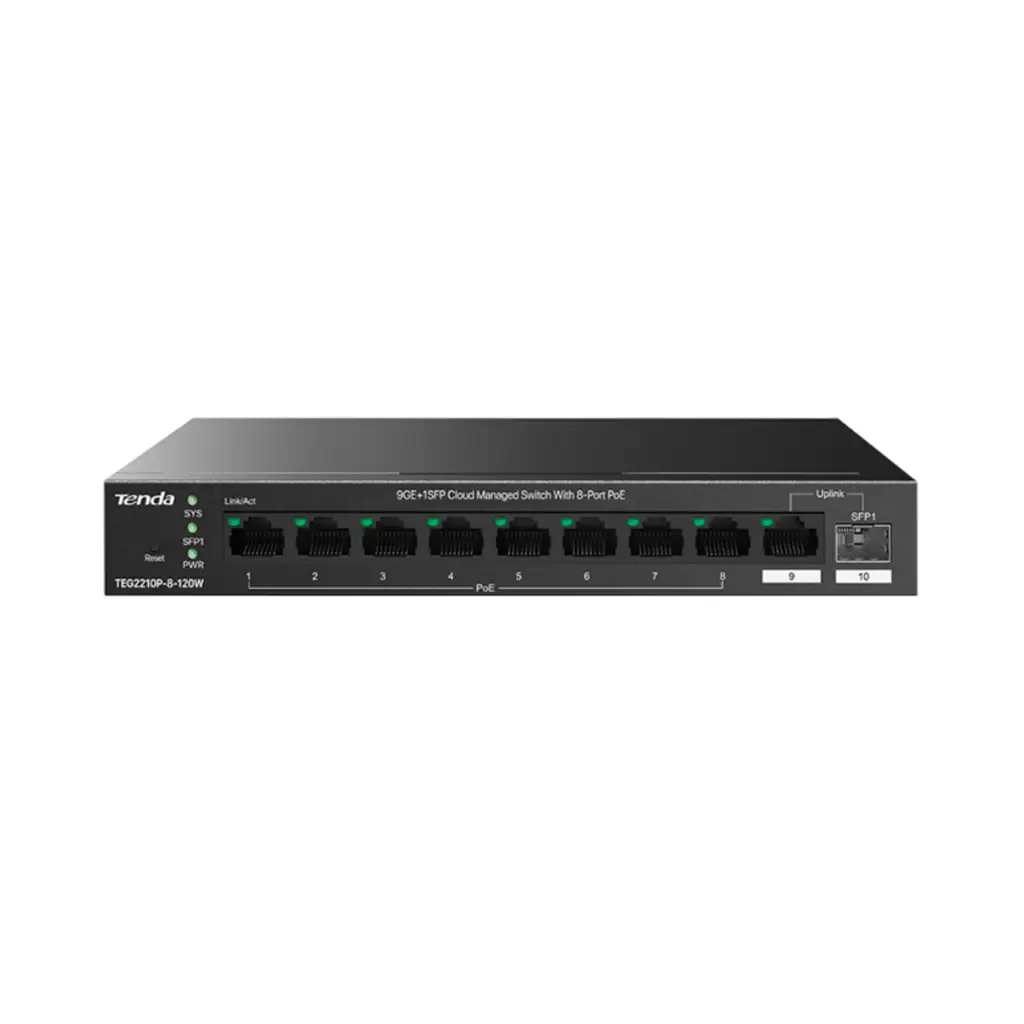

Tenda TEG2210P-8-120W
9GE+1SFP Cloud Managed PoE Switch
Features
- For Simpler Wired Networking
- Remote restart of the PoE port
- Visual topology, Automatically generated
- Remote configuration, VLAN fast partition
- Real time alarm for abnormal status
- Port Custom terminal type，View port status
- Simple management, Minimal configuration
Specifications
| Hardware | |
| Dimensions | 177.5mm*104mm*26mm |
| Mounting | Desktop mounting: support Wall mounting: support |
| Enclosure material | Metal |
| Interfaces | (9) 1GE RJ45 ports (1) 1GE SFP ports |
| PoE interface | (8) PoE(Pins 1, 2+；3, 6-) |
| LED Indicator | Power Link/Act PoE MAX |
| Switching capacity | 20Gbps |
| Forwarding rate | 14.9Mpps |
| Power method | 100-240V AC，50 / 60Hz |
| Power consumption | 120W |
| Total available PoE | 110W |
| Max. PoE wattage per port by PSE | 30W |
| Lightning protection | Port: 6 KV Power：6 KV |
| Button | Factory reset |
| Operating temperature | 0°C – 45℃ |
| Storage temperature | -40°C – 70°C |
| Operating humidity | 10% – 90%,non-condensing |
| Storage humidity | 5% – 90%,non-condensing |
