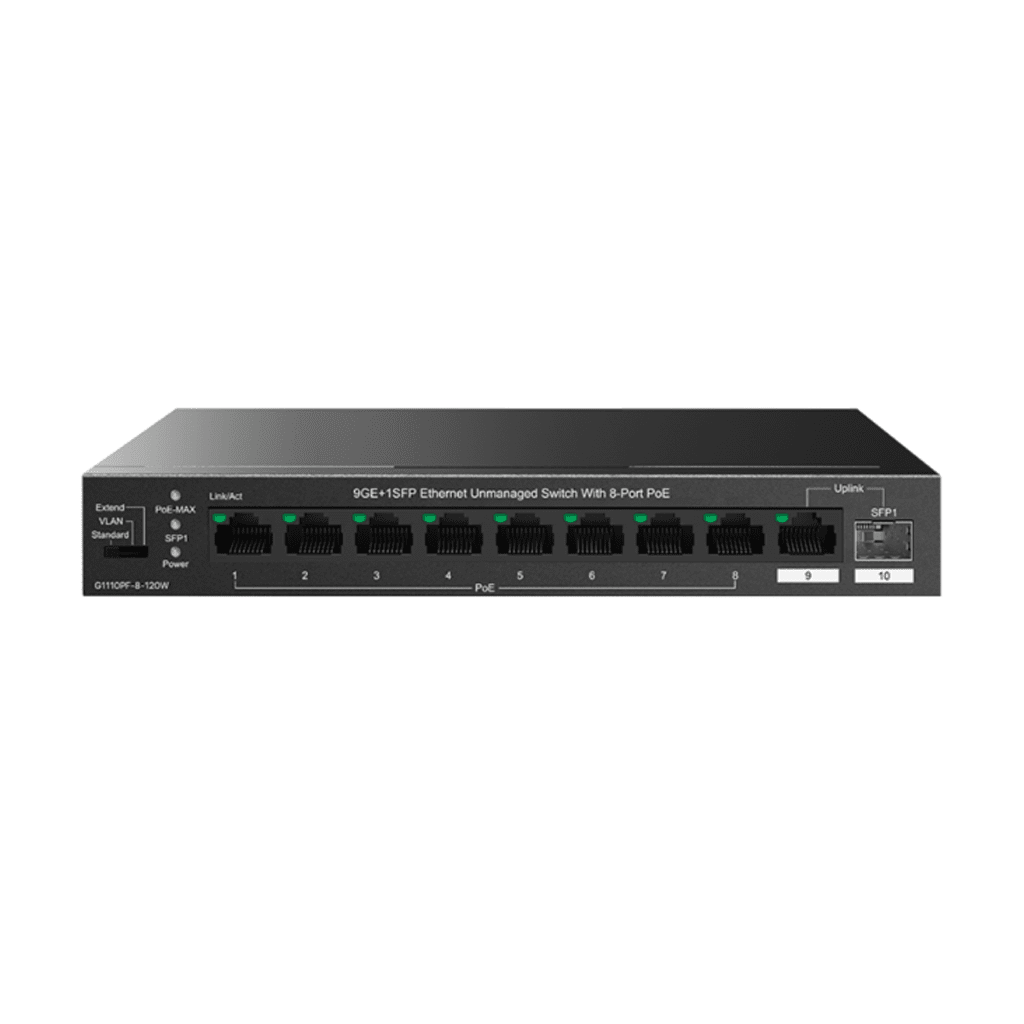

Tenda TEG1110PF-8-120W
9GE+1SFP Ethernet Switch With 8-Port PoE
Features
- The faster, the better experience
- Smart PoE Power Supply, stable transmission
- GE and SFP uplink, easier HD monitoring
- One-key to change smart and easy
Specifications
| Hardware | |
| Network standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3ab IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at |
| LED Indicator | Power Link/Act PoE MAX |
| Interfaces | (9) 1GE RJ45 ports (1) 1GE SFP ports |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 177.5mm*104mm*26mm |
| Level of protection | Port: 6 KV Power：6 KV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 20Gbps |
| Packet forwarding rate | 14.9Mpps |
| PoE budget | Single port: AF: 15.4W, AT: 30W Whole device: 92W |
| Power consumption | 120W |
| Input voltage | 100-240V AC 50/60Hz |
| Mounting | Desktop mounting: support Wall mounting: support |
| Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
