TOTEN-322000134
PDU power distribution unit -322000134
TOTEN-322000134 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Power socket module, control function module, lightning protection function module, leakage protector module and other modules; Multiple specifications to choose from; With or without control switch; The standard PDU has been upgraded from 6 bits to 8 bits
規格
PDU power distribution unit
Multi functional modular structure design, including power socket module, control function module, lightning protection function module, leakage protector module and other multifunctional modules.
Multiple performance options and specifications to choose from;
Provide output modules for various electrical devices;
With or without control switch;
Easy to install and use, suitable for 19 "standard installation and various non-standard installations.

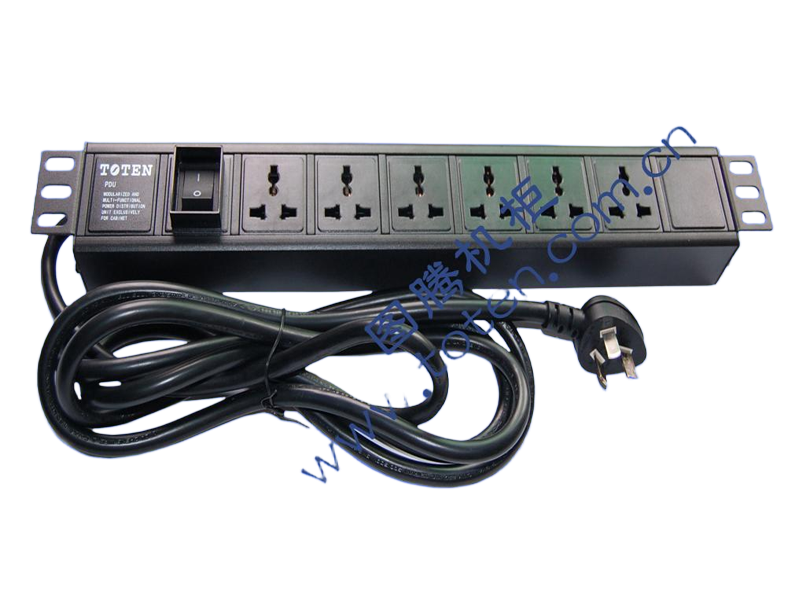

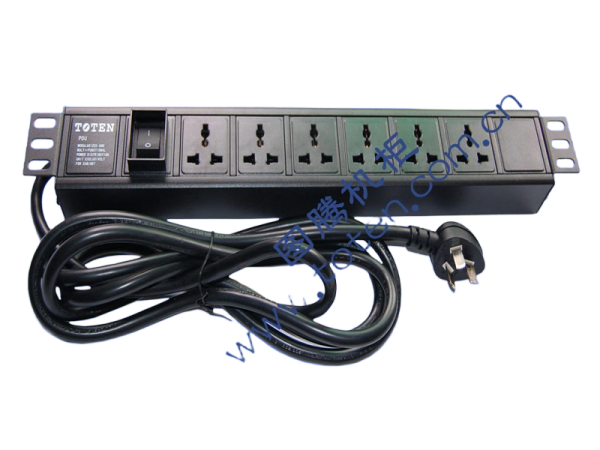

6-digit output universal jack PDU (322000134)
Product Name and Specifications
Black 6-digit national standard PDU, 16A national standard three flat plug input, 10A universal socket output, with main switch, 3-meter wire length, 19 "positive direction installation
Main technical parameters
Output unit: 6 bits;
Socket standard: GB2099.3-1997 10A national standard universal socket;
Input plug: GB1002-1996 10A national standard three flat plug;
Input method: Left end single input;
Cable specifications: 3 * 2.5mm2 * 3M;
Rated value: 16A 250V;
Load capacity: 2500W;
Product size: Length * Width * Height=483 * 45 * 62mm;
Installation method: 19 "installation in the positive direction;
Control function: main control switch;
Protection function: None;
Shell color: black;
Note
1) When vertically installing non 19 inch PDUs, "Power Distribution Unit (PDU) installation accessories" are required;
2) All products have the "TOTEN" brand and the "TOTEN" logo;
3) Positive installation: PDU installation ears and socket holes are on the same side; Reverse installation: The PDU installation ear is on the opposite side of the socket hole;
4) The standard power strip plug for the cabinet is provided by the supplier, and the surface color is fixed and cannot be changed;
5) Installation accessories for Power Distribution Unit (PDU):
◆ Color: RAL7035SN, Order Code: 985200003X
◆ Color: RAL9004SN, Order Code: 985200001X
◆ Color: RAL7044SN, Order Code: 985200002X
Order code: 322000134
