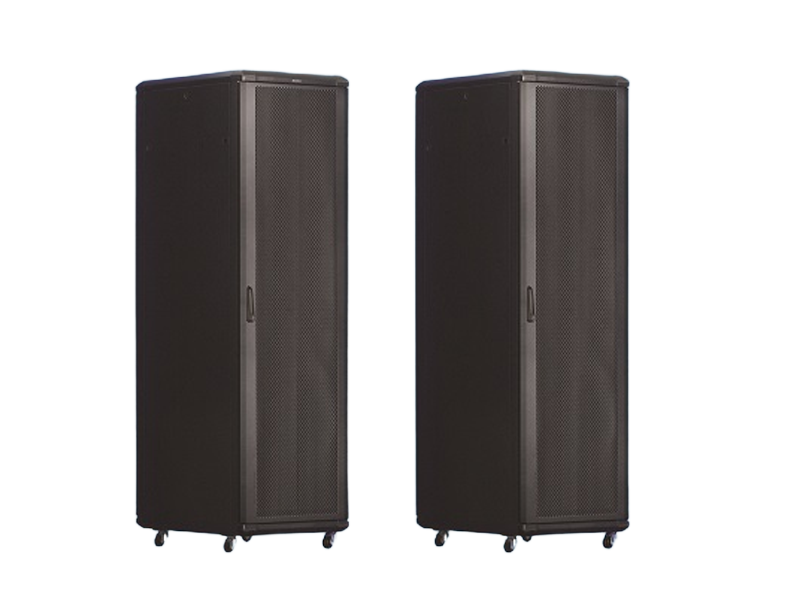

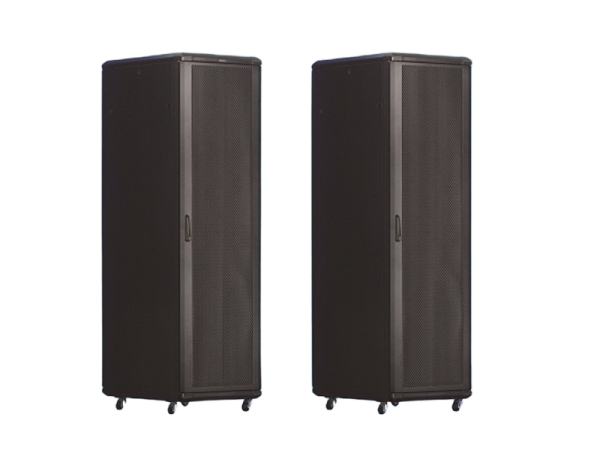

TOTEN-E3
Quick Install Server Cabinet
TOTEN-E3 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1、DIN41494; PART7, GB/T3047.2-92 standards ..
規格
E3 Quick Install Server Cabinet
Standard
Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1、DIN41494; PART7, GB/T3047.2-92 standards
Features
Aluminum profile frame, fully assembled structure, significantly (50%) saving transportation and storage costs;
Quick assembly (patent);
White tempered glass front door, with an opening angle greater than 180 degrees;
Internal adjustment support legs;
Multiple upper and lower wiring channels that can be closed, the size of the large wiring hole at the bottom can be adjusted as needed, and the wiring channel has dust-proof function;
High density mesh rear door, with a ventilation rate of over 55%, provides a comprehensive solution to the requirements of mechanical protection, ventilation and heat dissipation, and external observation of machine operation status;
Moonlight spinning cabinet door lock;
High universality of accessories;
The volume of individual packaging is only about one-third of the total container volume
load bearing
Static load 800KG
Protection level
IP20
Main materials
Frame: Aluminum alloy profiles Others:
SPCC high-quality cold-rolled steel plate, thickness: square hole strip 2.0mm, installation beam 1.5mm, side door 0.8, other 1.2mm.
Surface treatment
Degreasing, acid washing, phosphating, electrostatic spraying;
EB Quick Install Server Cabinet Ordering Code
| Order Code | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) | Packaging size WDH | Volume (CBM) |
|---|---|---|---|---|---|---|
| EB.6618.90■ | 18 | 600 | 600 | 575 | 575575125+893.1680110+1003.1680220 | 0.2582 |
| EB.6818.90■ | 18 | 600 | 800 | 930 | 575775125+893.1680110+1003.1880220 | 0.3167 |
| EB.6018.90■ | 18 | 600 | 1000 | 575 | 575975125+893.1680110+1003.11080220 | 0.3752 |
| EB.6622.90■ | 22 | 600 | 600 | 1108 | 575575125+1070.9680110+1180.9680220 | 0.2980 |
| EB.6822.90■ | 22 | 600 | 800 | 1108 | 575775125+1070.9680110+1180.9880220 | 0.3644 |
| EB.6022.90■ | 22 | 600 | 1000 | 1108 | 575975125+1070.9680110+1180.91080220 | 0.4308 |
| EB.6627.90■ | 27 | 600 | 600 | 1330 | 575575125+1293.2680110+1403.2680220 | 0.3479 |
| EB.6827.90■ | 27 | 600 | 800 | 1330 | 575775125+1293.2680110+1403.2880220 | 0.4240 |
| EB.6027.90■ | 27 | 600 | 1000 | 1330 | 575975125+1293.2680110+1403.21080220 | 0.5102 |
| EB.6632.90■ | 32 | 600 | 600 | 1552 | 575575125+1515.4680110+1625.4680220 | 0.3977 |
| EB.6832.90■ | 32 | 600 | 800 | 1552 | 575775125+1515.4680110+1625.4880220 | 0.4478 |
| EB.6032.90■ | 32 | 600 | 1000 | 1552 | 575975125+1515.4680110+1625.41080220 | 0.5696 |
| EB.6637.90■ | 37 | 600 | 600 | 1775 | 575575125+1737.7680110+1847.7680220 | 0.4477 |
| EB.6837.90■ | 37 | 600 | 800 | 1775 | 575775125+1737.7680110+1847.7880220 | 0.5434 |
| EB.6037.90■ | 37 | 600 | 1000 | 1775 | 575975125+1737.7680110+1847.71080220 | 0.6390 |
| EB.6642.90■ | 42 | 600 | 600 | 1995 | 575575125+1959.9680110+2069.9680220 | 0.4976 |
| EB.6842.90■ | 42 | 600 | 800 | 1995 | 575775125+1959.9680110+2069.9880220 | 0.6030 |
| EB.6042.90■ | 42 | 600 | 1000 | 1995 | 575975125+1959.9680110+2069.91080220 | 0.7084 |
| EB.6647.90■ | 47 | 600 | 600 | 2217 | 575575125+2182.2680110+2292.2680220 | 0.5474 |
| EB.6847.90■ | 47 | 600 | 800 | 2217 | 575775125+2182.2680110+2292.2680220 | 0.6627 |
| EB.6047.90■ | 47 | 600 | 1000 | 2217 | 575975125+2182.2680110+2292.2680220 | 0.7779 |
Cabinet Color Definition Table
| Order Code | RAL color code | RAL color code |
|---|---|---|
| EB.■■■■■■■.01 | RAL9004 | black（黑色） |
| EB.■■■■■■■.02 | RAL7035 | gray（浅灰色） |
Color Correspondence Table
| RAL color code | color |
|---|---|
| RAL9004 | black |
| RAL7035 | light gray |
