描述

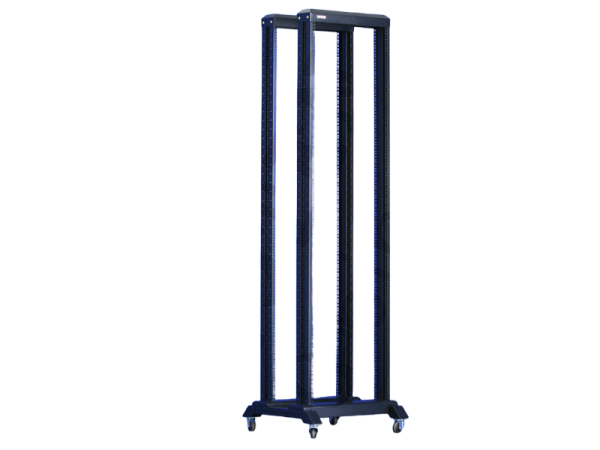

TOTEN-DR
open rack
TOTEN-DR 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Modular design, easy to install, low-cost, easy to load and unload, transport, and assemble.
規格

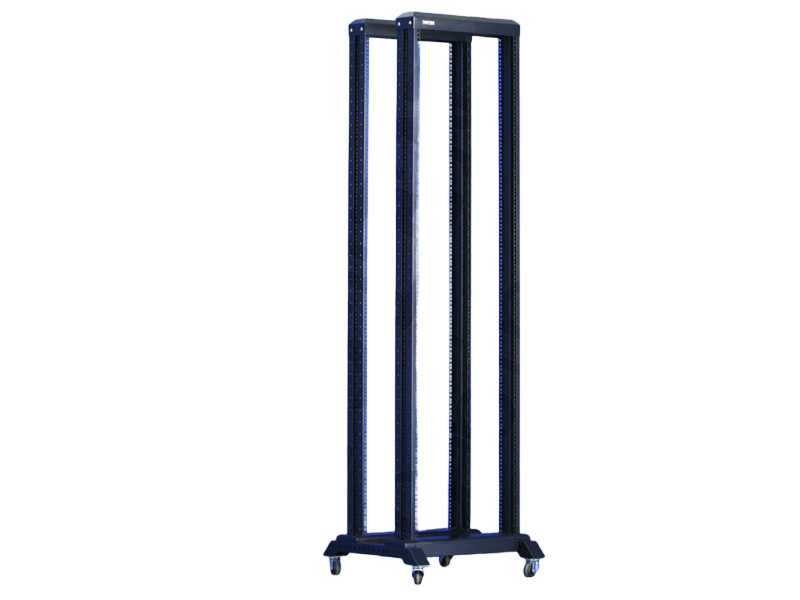

DR open rack
Standard
Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1、DIN41494; PART7 and GB/T3047.2-92 standards.
Features
Modular design, easy to install, low-cost, easy to load and unload, transport, and assemble;
Multiple configurations can be selected according to needs, such as cable trays, cable racks, horizontal pull-out work platforms, etc.
Load capacity: Static load 150KG
Protection level: IP20
Main materials
SPCC high-quality cold-rolled steel plate production; Thickness: 1.5mm for lower beam and base, 1.2mm for others
Surface treatment: degreasing, acid washing, phosphating, electrostatic spraying
| Order Code | Capacity (U) | Width (mm) | Depth (mm) | Height (mm) | Packaging size (WDH) | Volume (CBM) |
|---|---|---|---|---|---|---|
| DR.6618.90■■ | 18 | 600 | 600 | 954 | 6303101000 | 0.1953 |
| DR.6622.90■■ | 22 | 600 | 600 | 1131 | 6303101180 | 0.2305 |
| DR.6627.90■■ | 27 | 600 | 600 | 1355 | 6303101400 | 0.2734 |
| DR.6632.90■■ | 32 | 600 | 600 | 1575 | 6303101630 | 0.3183 |
| DR.6637.90■■ | 37 | 600 | 600 | 1798 | 6303101850 | 0.3613 |
| DR.6642.90■■ | 42 | 600 | 600 | 2020 | 6303102070 | 0.4043 |
| DR.6647.90■■ | 47 | 600 | 600 | 2243 | 6303102290 | 0.4472 |
Cabinet Color Definition Table
| Model No. | color | corresponding color |
|---|---|---|
| DR.■■■■.■■01 | RAL9004 | black |
| DR.■■■■.■■02 | RAL7035 | light gray |
