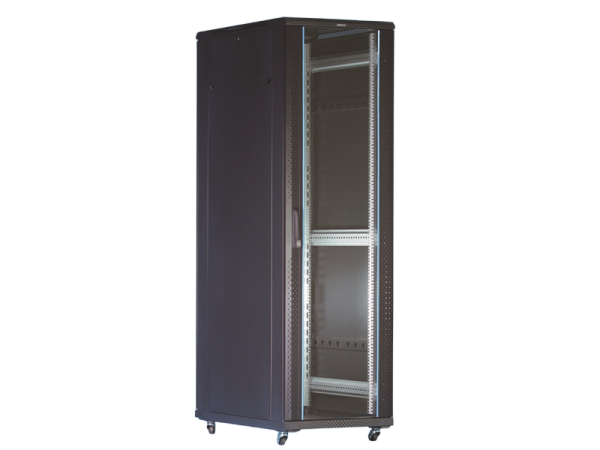

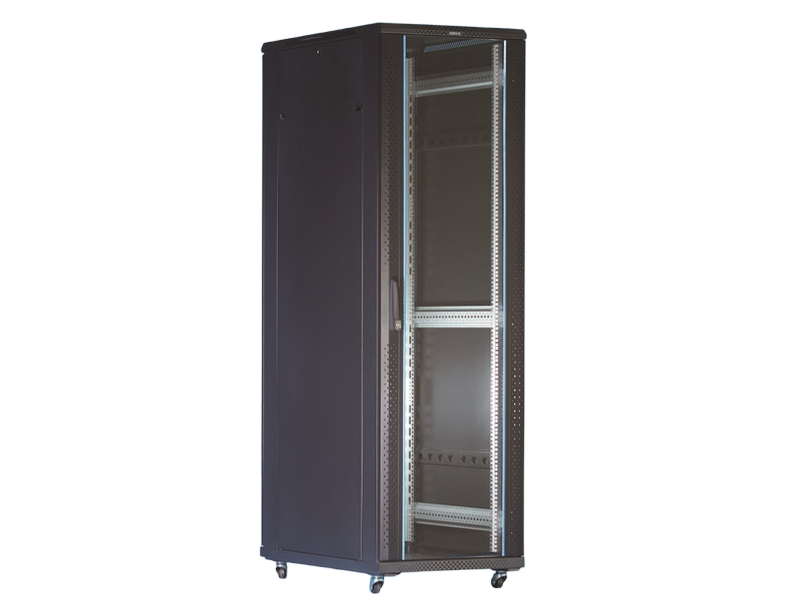

TOTEN G5 Network Server Cabinet

描述

TOTEN-G5

Network Server Cabinet

TOTEN-G5 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。

產品說明

The appearance design (patent) is noble and elegant, with exquisite craftsmanship, precise dimensions, and a strong sense of the times, adding value to your project; A front door (patented) with ventilation holes and a three section hexagonal mesh rear door for easy ventilation and heat dissipation; Efficient and sturdy cabinet connection (patented).

規格

Standard

Compliant with ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1、DIN41494; PART7、GB/T3047.2-92； Compatible with ETSI standards.

Features

Single open white tempered glass front door;

Single sheet metal rear door;

Open circular ventilation holes on the edge of the door, with a mesh ventilation rate of 75%;

The front and rear doors are reinforced with welding free ribs, which are aesthetically pleasing and sturdy;

The front and rear doors are equipped with high-end and elegant locks;

Can be equipped with various locks required by customers;

The front and rear doors can be changed to double open.

load bearing

Static load 800KG (with bracket)

Protection level: IP20

Main materials

Square hole strip and installation beam: fingerprint resistant coated aluminum zinc plate;

Others: SPCC high-quality cold-rolled sheet;

Thickness: Square hole strip 2.0mm; Installation beam 1.5mm; Other 1.2mm.

Surface treatment

Square hole strip, installation crossbeam: aluminum zinc plated plate; Others: degreasing, silanization treatment, electrostatic spraying

model	Capacity (U)	Width (mm)	Depth (mm)	D1(mm)	Height (mm)	Package dimensions	Packaging volume (cubic meters)
G■6818.90■■	18	600	600	361	968	6707001028	0.4821
G■6818.90■■	18	600	800	561	968	6709001028	0.6189
G■6818.90■■	18	600	1000	736	968	67011001028	0.7576
G■6622.90■■	22	600	600	361	1166	6707001196	0.5609
G■6822.90■■	22	600	800	561	1166	6709001196	0.7212
G■6822.90■■	22	600	900	661	1166	6701001196	0.8013
G■6622.90■■	22	600	1000	736	1166	67011001196	0.8615
G■6627.90■■	27	600	600	361	1308	6707001418	0.6551
G■6827.90■■	27	600	800	561	1308	6709001418	0.9501
G■6827.90■■	27	600	1000	736	1308	67011001418	1.0451
G■6632.90■■	32	600	600	361	1610	6707001640	0.7492
G■6832.90■■	32	600	800	561	1610	6709001640	0.9889
G■6832.90■■	32	600	900	661	1610	6701001640	1.0988
G■6632.90■■	32	600	1000	736	1610	67011001640	1.2087
G■6637.90■■	37	600	600	361	1833	6707001863	0.8737
G■6837.90■■	37	600	800	561	1833	6709001863	1.1234
G■6837.90■■	37	600	900	661	1833	6701001863	1.2428
G■6637.90■■	37	600	1000	736	1833	67011001863	1.3730
G■6637.90■■	37	600	1200	736	1833	67013001863	1.6279
G■6642.90■■	42	600	600	361	2055	6707002085	0.9277
G■6842.90■■	42	600	800	561	2055	6709002085	1.2573
G■6842.90■■	42	600	900	661	2055	6701002085	1.3986
G■6942.90■■	42	600	1000	736	2055	67011002085	1.5870
G■6142.90■■	42	600	1100	736	2055	67011002085	1.6763
G■6842.90■■	42	600	1200	736	2055	67013002085	1.9160
G■8842.90■■	42	800	600	261	2055	8707002085	1.2698
G■8842.90■■	42	800	800	461	2055	8709002085	1.6326
G■8942.90■■	42	800	900	561	2055	87011002085	1.9140
G■8042.90■■	42	800	1000	661	2055	87011002085	1.9957
G■8042.90■■	42	800	1100	736	2055	87013002085	2.1763
G■8242.90■■	42	800	1200	736	2055	87013002085	2.3581
G■6647.90■■	47	600	600	361	2277	6707002307	1.0820
G■6847.90■■	47	600	800	561	2277	6709002307	1.3911
G■6847.90■■	47	600	900	661	2277	67011002307	1.5457
G■6147.90■■	47	600	1000	736	2277	67011002307	1.7003
G■6047.90■■	47	600	1100	736	2277	67013002307	1.8548
G■6247.90■■	47	600	1200	736	2277	67013002307	2.0094
G■8847.90■■	47	800	600	261	2277	8707002307	1.4054
G■8847.90■■	47	800	800	461	2277	8709002307	1.8060
G■8947.90■■	47	800	900	561	2277	87011002307	2.0071
G■8047.90■■	47	800	1000	661	2277	87011002307	2.2085
G■8047.90■■	47	800	1100	736	2277	87013002307	2.4078
G■8247.90■■	47	800	1200	736	2277	87013002307	2.6092
