TOTEN-PD-0601-9300
PDU Power Distribution Unit – PD.0601.9300
TOTEN-PD-0601-9300 屬TOTEN 圖騰伺服器機櫃及機房設備產品。傑成系統有限公司（香港防盜）為TOTEN 圖騰產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修，可配合網絡佈線、UPS 及機房環境監測一併規劃。方案可參考Server Room 架設及維修。規格以原廠資料為準。
產品說明
Power socket module, control function module, lightning protection function module, leakage protector module and other modules; Multiple specifications to choose from; With or without control switch; The standard PDU has been upgraded from 6 bits to 8 bits
規格
PDU power distribution unit
Multi functional modular structure design, including power socket module, control function module, lightning protection function module, leakage protector module and other multifunctional modules.
Multiple performance options and specifications to choose from;
Provide output modules for various electrical devices;
With or without control switch;
Easy to install and use, suitable for 19 "standard installation and various non-standard installations.

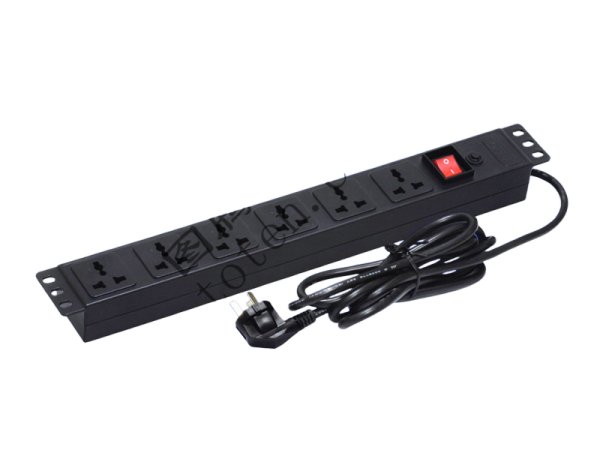

6-position universal socket with 19 "installation board PDU (PD.0601.9300)
Product Name and Specifications
Black 6-digit national standard power strip plug, 10A input 10A universal output, with overload protection and lamp main switch, power cord 3 * 0.75 * 1.8M, installation ear integrated with upper panel, 19 "positive direction installation, cabinet standard power strip plug, with" TOTEN "logo
Main technical parameters
Output unit: 6 bits;
Socket standard: GB2099.3-1997 10A national standard universal socket;
Input plug: GB1002-1996 10A national standard three flat plug;
Input method: Right end single channel input;
Cable specifications: 3 * 0.75mm 2 * 1.8M;
Rated value: 10A 250V;
Load capacity: 2500W;
Product dimensions: length * width * height=483 * 45 * 55mm;
Installation method: 19 "installation in the positive direction;
Control function: with light master control switch;
Protection function: overload protector;
Shell color: black;
Note:
1) When vertically installing non 19 inch PDUs, "Power Distribution Unit (PDU) installation accessories" are required;
2) All products have the "TOTEN" brand and the "TOTEN" logo;
3) Positive installation: PDU installation ears and socket holes are on the same side; Reverse installation: The PDU installation ear is on the opposite side of the socket hole;
4) The standard power strip plug for the cabinet is provided by the supplier, and the surface color is fixed and cannot be changed;
5) Installation accessories for Power Distribution Unit (PDU):
◆ Color: RAL7035SN, Order Code: 985200003X
◆Color: RAL9004SN, Order Code: 985200001X
◆ Color: RAL7044SN, Order Code: 985200002X
Order code: PD06019300
