描述

TP-Link Archer AX20 V1.20 是 AX1800 雙頻 Wi-Fi 6 路由器，5 GHz 1,201 Mbps 及 2.4 GHz 574 Mbps，採用四核心處理器。香港防盜為安裝商及經銷商，規格以原廠為準。

相關方案：無線網絡方案、家居方案。

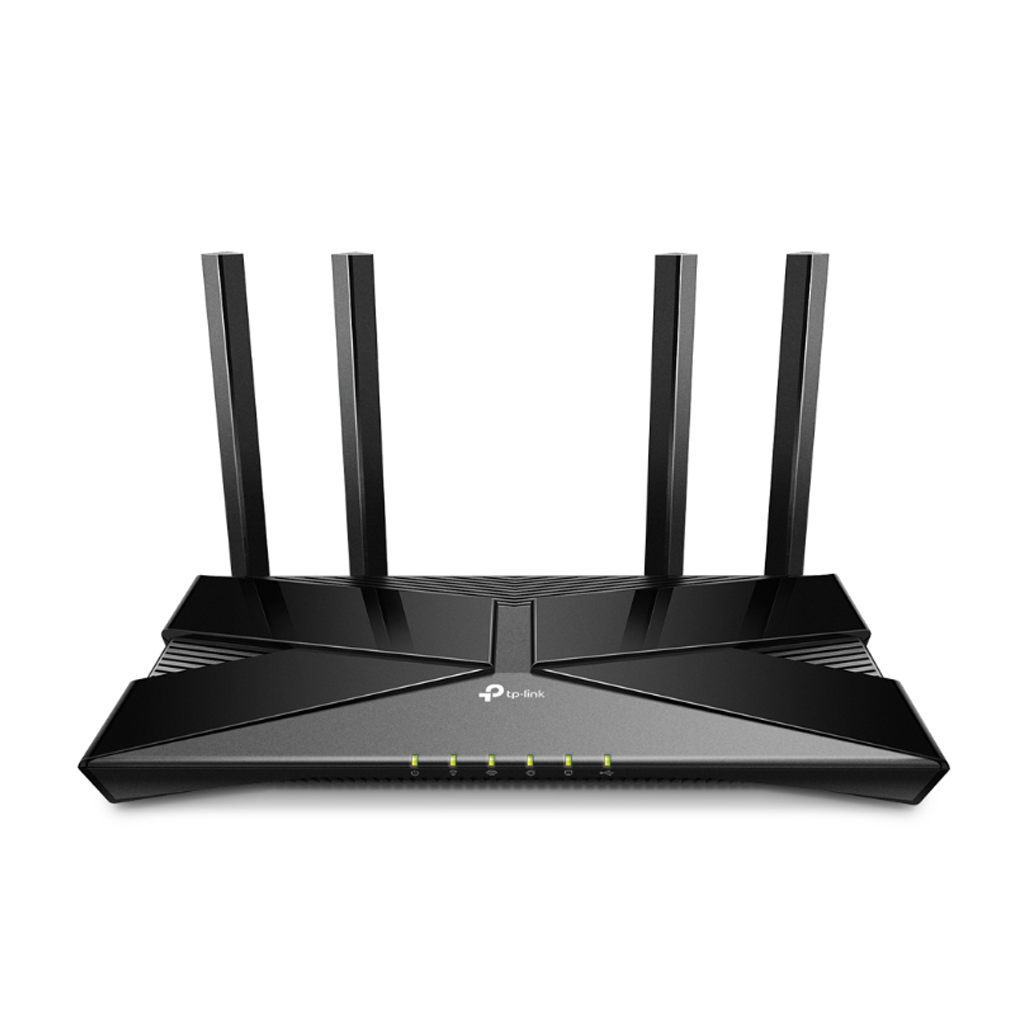

TP-Link Archer AX20 V1.20

AX1800 Dual-Band Wi-Fi 6 Router

Features

Dual-Band Wi-Fi 6
Next-Gen 1.8 Gbps Speeds
Connect More Devices
Quad-Core Processing
Extensive Coverage
Increased Battery Life for Devices
Easy Setup
Backward Compatible

Specifications

WIRELESS
Standards and Protocols	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	3 Bedroom Houses Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage
WiFi Capacity	High Dual-Band Allocate devices to different bands for optimal performance OFDMA Simultaneously communicates with multiple Wi-Fi 6 clients Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth
Working Modes	Router Mode Access Point Mode
SECURITY
Network Security	SPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	OpenVPN/ PPTP/ L2TP VPN Server
VPN Client	OpenVPN/ PPTP/ L2TP VPN Client
WiFi Encryption	WPA WPA2 WPA3
HARDWARE
Processor	Dual-Core CPU (V3)
Ethernet Ports	1× Gigabit WAN Port 4× Gigabit LAN Ports
USB Support	1× USB 2.0 Port Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 Supported Functions: Apple Time Machine FTP Server Media Server Samba Server
Buttons	WPS/Wi-Fi Button Power On/Off Button Reset Button
Power	V1, V2: 12 V ⎓ 1.5 A V3: 12 V ⎓ 2.0 A
SOFTWARE
Protocols	IPv4 IPv6
OneMesh™	V1.0 only OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls	URL Filtering Time Controls
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	QoS by Device
Cloud Service	Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding Port Triggering DMZ UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link NO-IP DynDNS
Management Features	Tether App Webpage
PHYSICAL
Dimensions (W×D×H)	10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm)
Package Content	Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide
