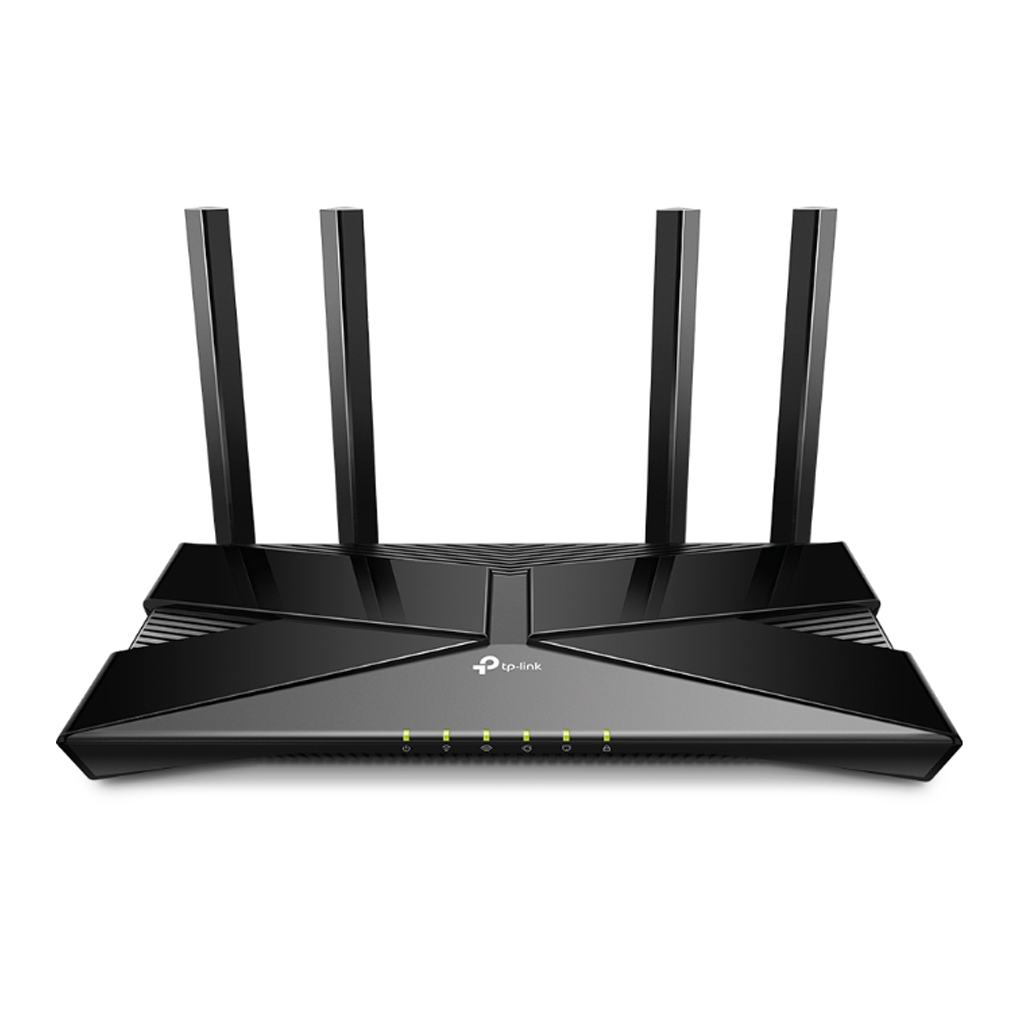

TP-Link Archer AX53
AX3000 Dual Band Gigabit Wi-Fi 6 Router
Features
- Next-Gen Gigabit Wi-Fi 6 Speed
- Connect More Devices
- Ultra-Low Latency
- Expanded Wi-Fi Coverage
- TP-Link HomeShield
- Improved Battery Life
- Compatible with Alexa
- EasyMesh-Compatible
Specifications
| WIRELESS | |
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming High-Power FEM |
| WiFi Capacity | High
Dual-Band OFDMA Airtime Fairness DFS 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway HomeShield Security |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • WireGuard VPN Server |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise |
| HARDWARE | |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | Wi-Fi/WPS Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
| SOFTWARE | |
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX53 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
| Parental Controls | HomeShield Parental Controls
Custom Profiles |
| WAN Type | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage |
| PHYSICAL | |
| Dimensions (W×D×H) | 10.2 × 5.3 × 1.6 in (260.2 × 135 × 41.6 mm) |
| Package Content | Wireless Router Archer AX53 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
