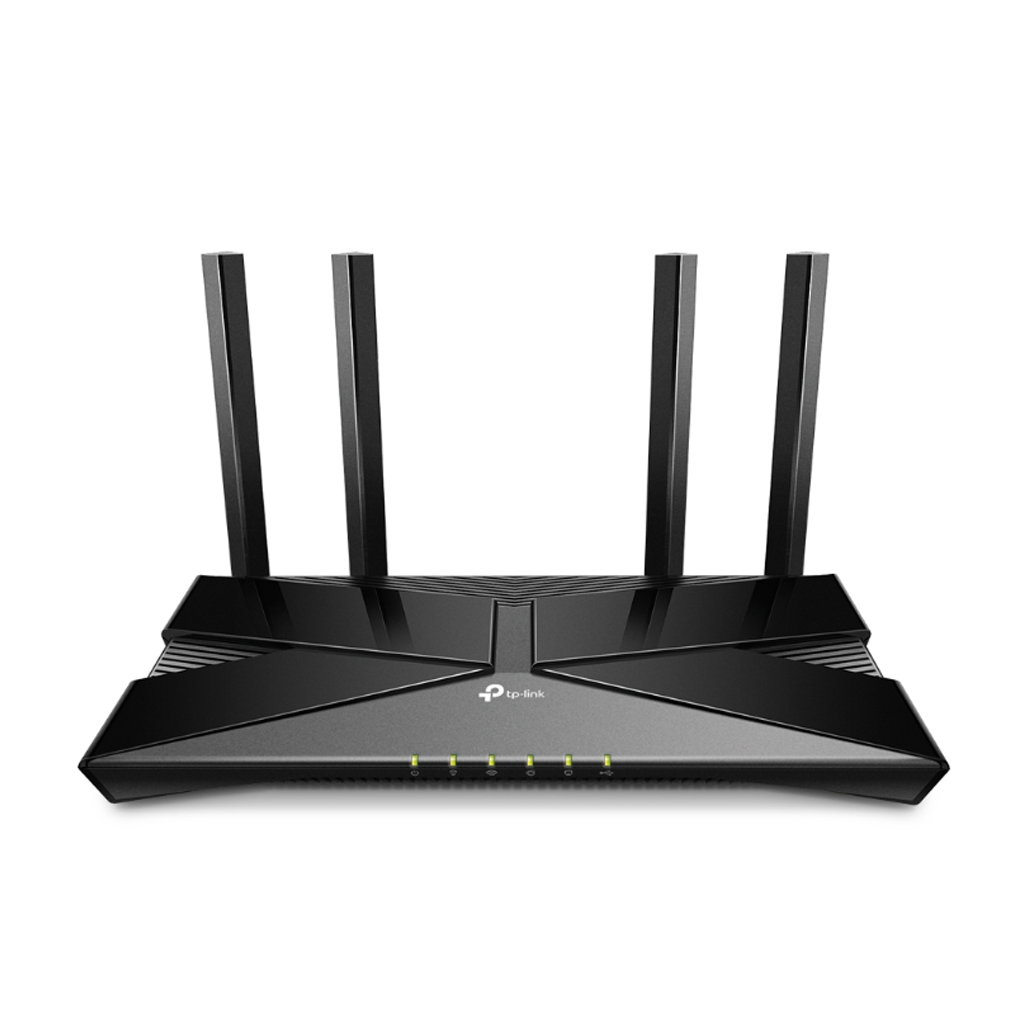

TP-Link Archer AX20 V3
AX1800 Dual-Band Wi-Fi 6 EasyMesh Router
Features
- Dual-Band Wi-Fi 6
- Next-Gen 1.8 Gbps Speeds
- Connect More Devices
- Extensive Coverage
- OneMesh Compatible
- Increased Battery Life
- USB Easy Sharing
- Easy Setup
- Backward Compatible
Specifications
| WIRELESS | |
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming High-Power FEM |
| WiFi Capacity | High
Dual-Band OFDMA Airtime Fairness 4 Streams |
| Working Modes | Router Mode Access Point Mode |
| SECURITY | |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN/ PPTP/ L2TP VPN Server |
| VPN Client | OpenVPN/ PPTP/ L2TP VPN Client |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
| Processor | Dual-Core CPU (V3) |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 2.0 Port
Supported Partition Formats: Supported Functions: |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | V1, V2: 12 V ⎓ 1.5 A V3: 12 V ⎓ 2.0 A |
| SOFTWARE | |
| Protocols | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX20 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage |
| PHYSICAL | |
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Content | Wi-Fi Router Archer AX20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
